HEIDENHAIN MANUALplus 620 33
1.2 The smart.Turn Editor

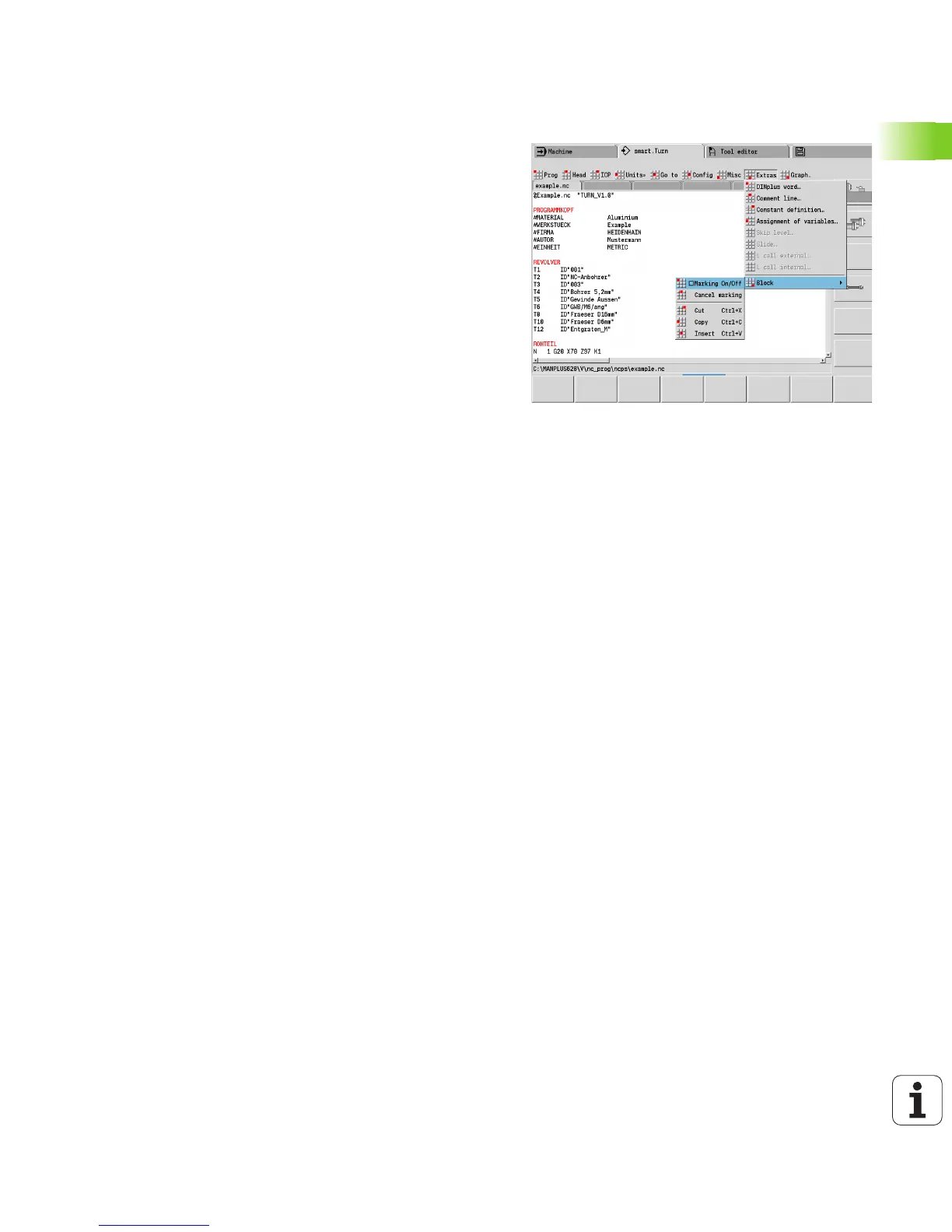

"Extras" pull-down menu
The "Extras" pull-down menu contains the following functions:
 DIN PLUS word: The editor opens the selection list with all DIN
PLUS words in alphabetical order. Select the desired instruction for
program structuring or the input/output command. The editor
inserts the DIN PLUS word at the cursor position.
 Comment line: The comment is inserted above the position of the
cursor.
 Constant definition: The expression is inserted above the position
of the cursor. If the DIN PLUS word "CONST" is not present yet, it is
also inserted.
 Assignment of variables: Inserts a variable instruction.
 L call external (the subprogram is in a separate file): The editor
opens the file selection window for subprograms. Select the
subprogram and fill out the subprogram dialog.
 L call internal (the subprogram is contained in the main program):
The editor opens the subprogram dialog.
 Block functions. This pull-down menu contains functions for
marking, copying and deleting sections.
 Marking On/Off: Activates/Deactivates the marking mode during
cursor movement.
 Cancel marking: After calling the menu item, no part of the
program is marked.
 Cut: Deletes the marked part of the program and copies it to the
clipboard.
 Copy: Copies the marked part of the program into the clipboard.
 Insert: Inserts the contents of the clipboard at the cursor position.
Any parts of the program that are marked are replaced by the
contents of the clipboard.
