5 Programming HIMax System
HI 801 001 E Rev. 4.01 Page 72 of 122
First CPU Cycle Considered.
Second CPU Cycle Considered.
Third CPU Cycle Considered.
The Max. Duration for Each Cycle [µs]
of UP 1 has Expired, UP 2 Starts.
The Max. Duration for Each Cycle [µs]
of UP 2 has Expired, UP 3 Starts.
The UP 3 Max. Duration for Each Cycle
s] has Expired, Completion of the
First CPU Cycle.
Completion of the UP 1 Cycle, UP 2
Resumes.
Completion of the UP 2 Cycle, UP 3
Resumes.
The UP 3 Max. Duration for Each Cycle
s] has Expired, Completion of the
Second CPU Cycle.
The next User Program Cycle of UP 1
Starts.
Max. Duration for Each Cycle [µs] of
UP 1 has Expired. The next User Pro-
gram Cycle of UP 2 Starts.
The Max. Duration for Each Cycle [µs]
of UP 2 has Expired, UP 3 Starts.
Completion of the UP 3 Cycle.

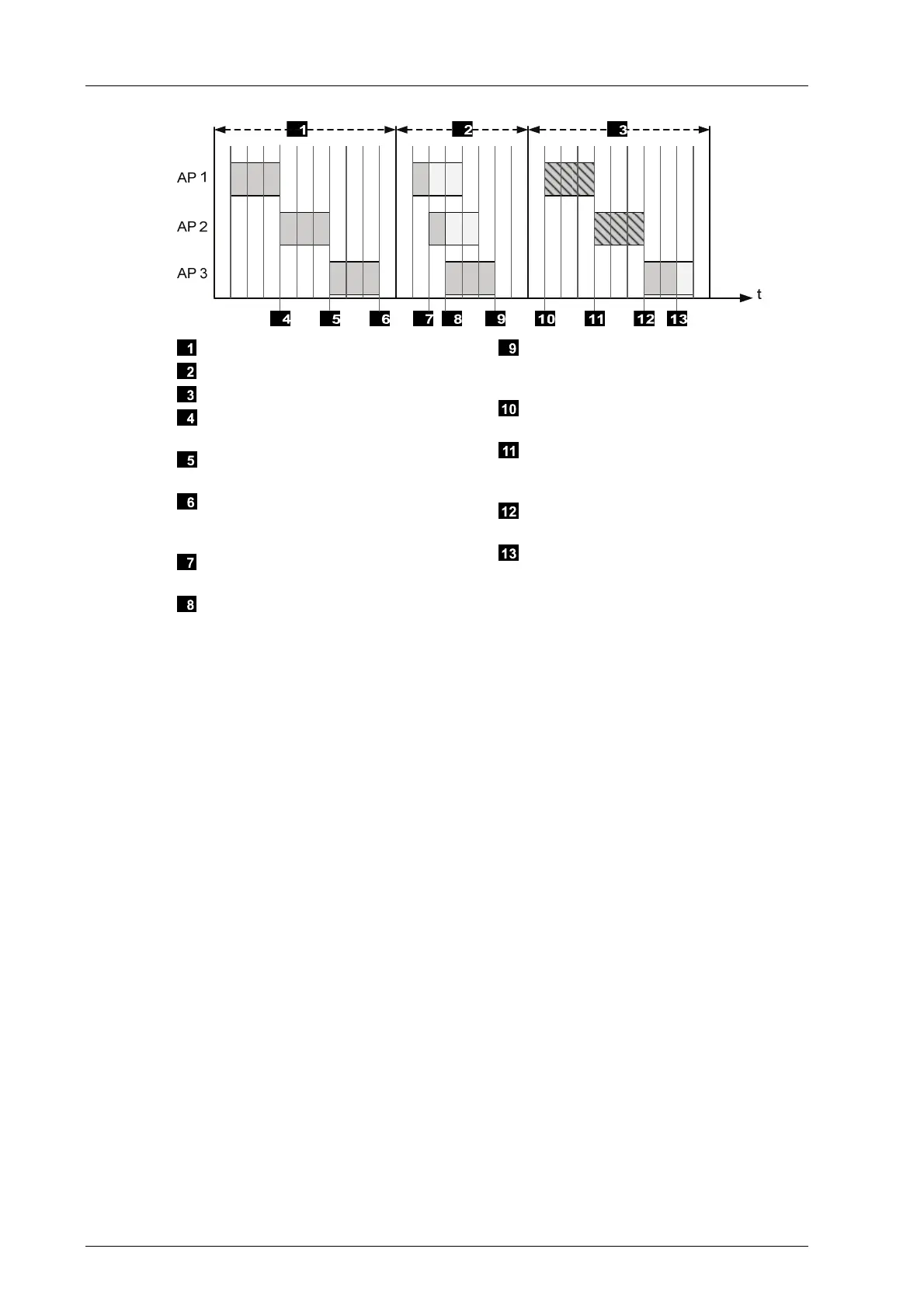

Figure 13: Multitasking Mode 1
