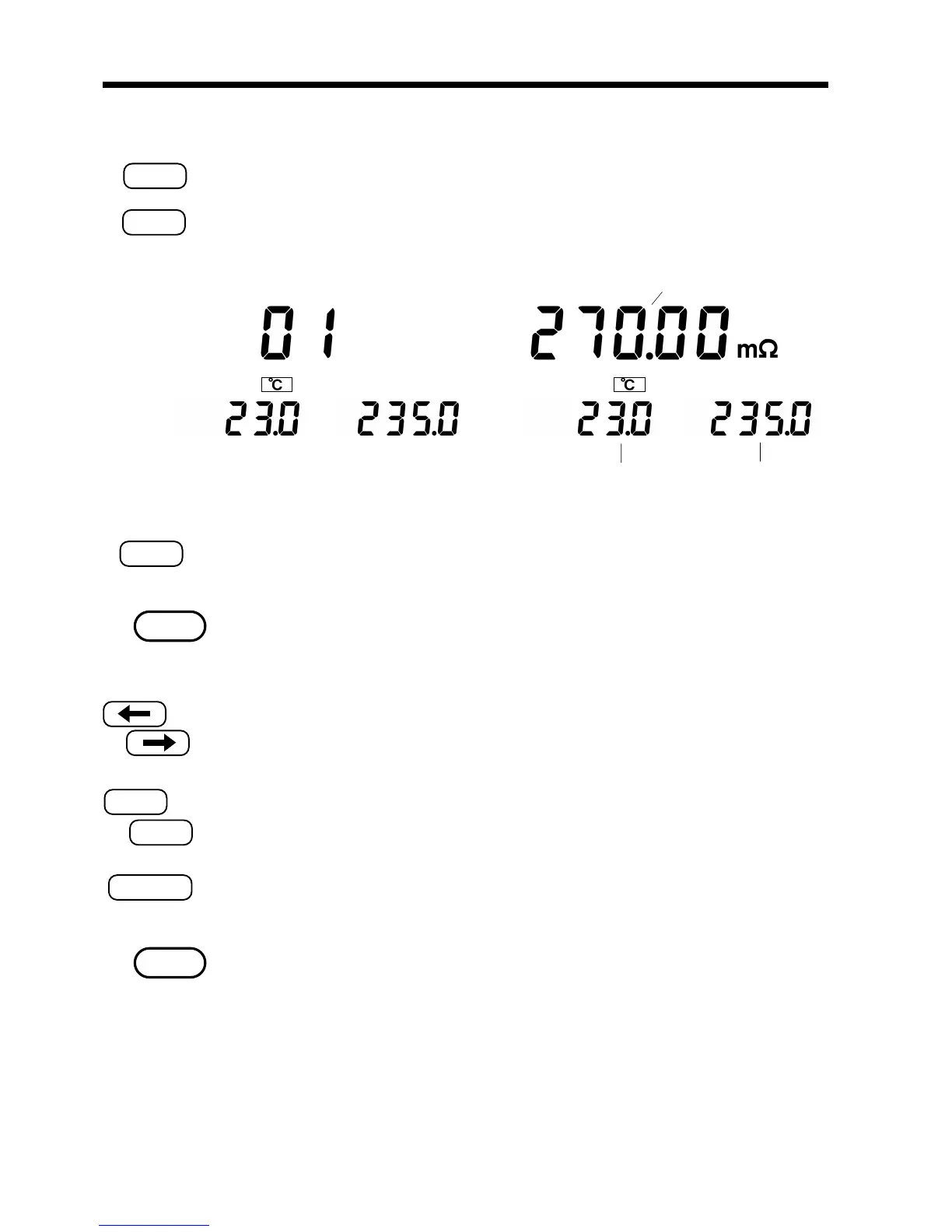

.5 Setting the Temperature Conversion
(1) Press the SHIFT key and enter the shift states. "SHIFT" on the display lights.
(2) Pressing the
TC key first displays the temperature conversion table number
for a while, then enters the temperature conversion setting mode. Pressing
the
TC key again makes it possible to select the table number.
(3) Pressing the
AUTO key sets the initial resistance and initial temperature
values to the measured values before entering the temperature conversion
mode. The constant value is also set to 235.0 (constant for copper).
When setting the current measurement value by pressing the
AUTO key, if a
valid resistance value or temperature is not measured, the initial resistance
value is set to a 99999 display value (current measurement range) and the
initial temperature is set to 99.9 ℃．
(4) Move flashing display to the setting items with the cursor keys.
(5) Set the digits of the initial resistance, the initial temperature, or the constant
with the
UP or DOWN key.
(6) Pressing the ENTER key decides the setting contents and return to the
temperature conversion mode. Start executing the temperature conversion
according to the setting contents.
･ The setting range for each item is as follows. An attempt to set a value out of
range generates an error. In this case, the setting contents are not decided,
and the mode does not return to the measurement mode.
Initial resistance: 0.00 mΩ to 999.99 kΩ
Initial temperature: -10.0℃ to 99.9℃
Constant: -999.9 to 999.9
･ When the temperature correction function is selected at power on, the setting
screen for the temperature correction function appears. See Section 5.3,
"Setting the Temperature Correction."
