9.2 Print Method
────────────────────────────────────────────────────
NOTE

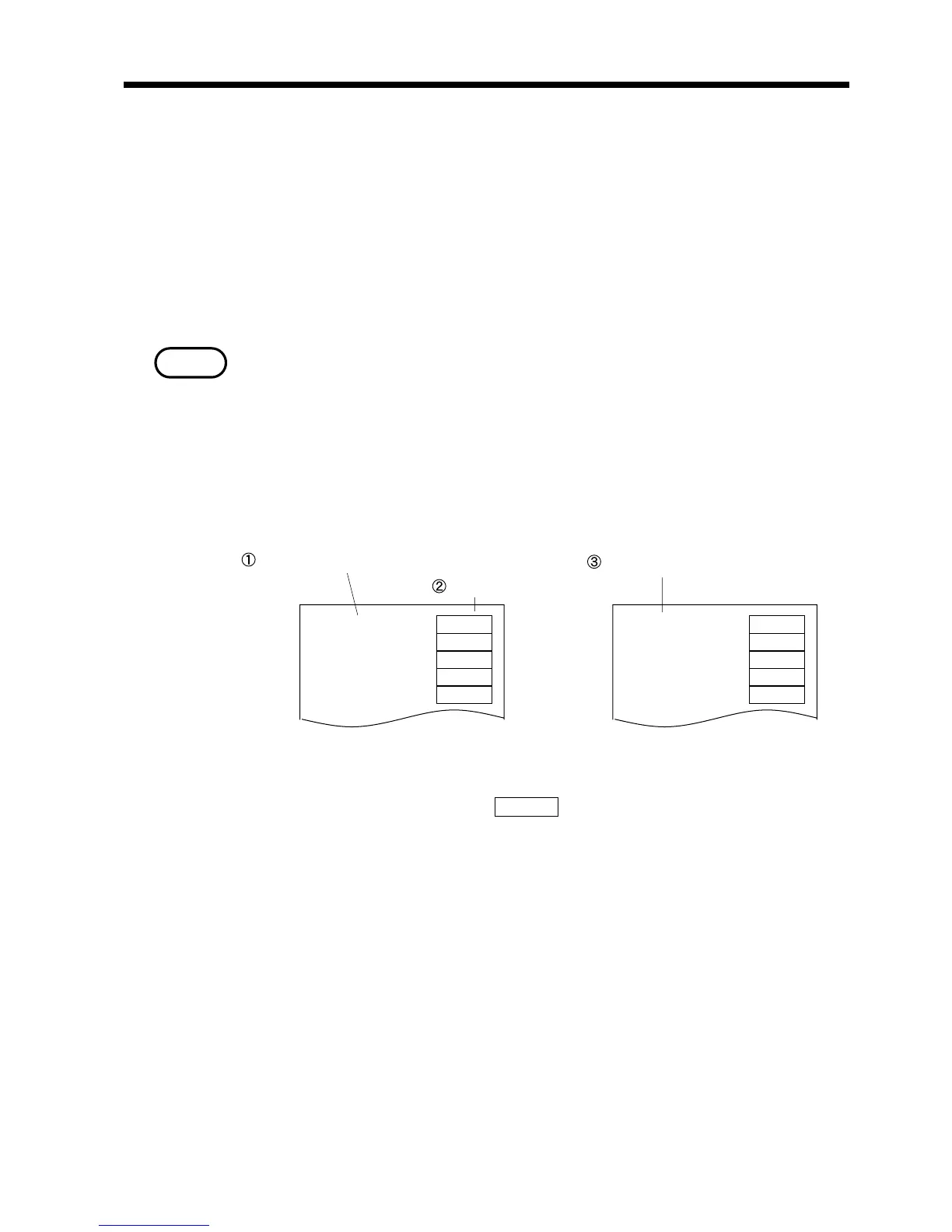

Resistance measurement valu
e
Comparator result
Temperature measurement valu
e
100.00mohm_IN CR+LF
_99.95mohm_Lo CR+LF
100.10mohm_Hi CR+LF
___OF______Hi CR+LF
___NG______Hi CR+LF
_23.00_C CR+LF
_15.01_C CR+LF
__3.02_C CR+LF
__0.00_C CR+LF
ｰ_0.04_C CR+LF
Resistance Measurement Mode Temperature Measurement Mod
e
9
.2 Print Method
This chapter shows the method of printing out the measurement results by the
centronics printer.
(1) Select either the resistance measurement mode or the temperature
measurement mode according to the measurement value intended to print.
See Section 4.2, "Selecting the Measurement Mode", for selection of the
measurement mode.
When in the setting mode (not in the measurement mode), the printing is not
executed.
(2) Change the print requirement (PRINT) terminal of the external control
terminal from "H" to "L".
See Chapter 6, "ExternalControl Terminals", for details.
(3) Print the measurement value at the time of receiving the printer requirement
from the external control terminal, and the comparator result, as follows.
"_" means a space (blank), and " CR+LF
" means the writing on another line.
