5.1 Setting the Comparator
────────────────────────────────────────────────────
5
.1.2 Setting the Comparator 2
GP-IB ADRS
N
G
k
HIGH
LOW
Comparison
method
High limit value or standard value Low limit value or rang
e
NOTE
GP-IB ADRS
DOWN
UP
ENTER
CLEAR
NOTE

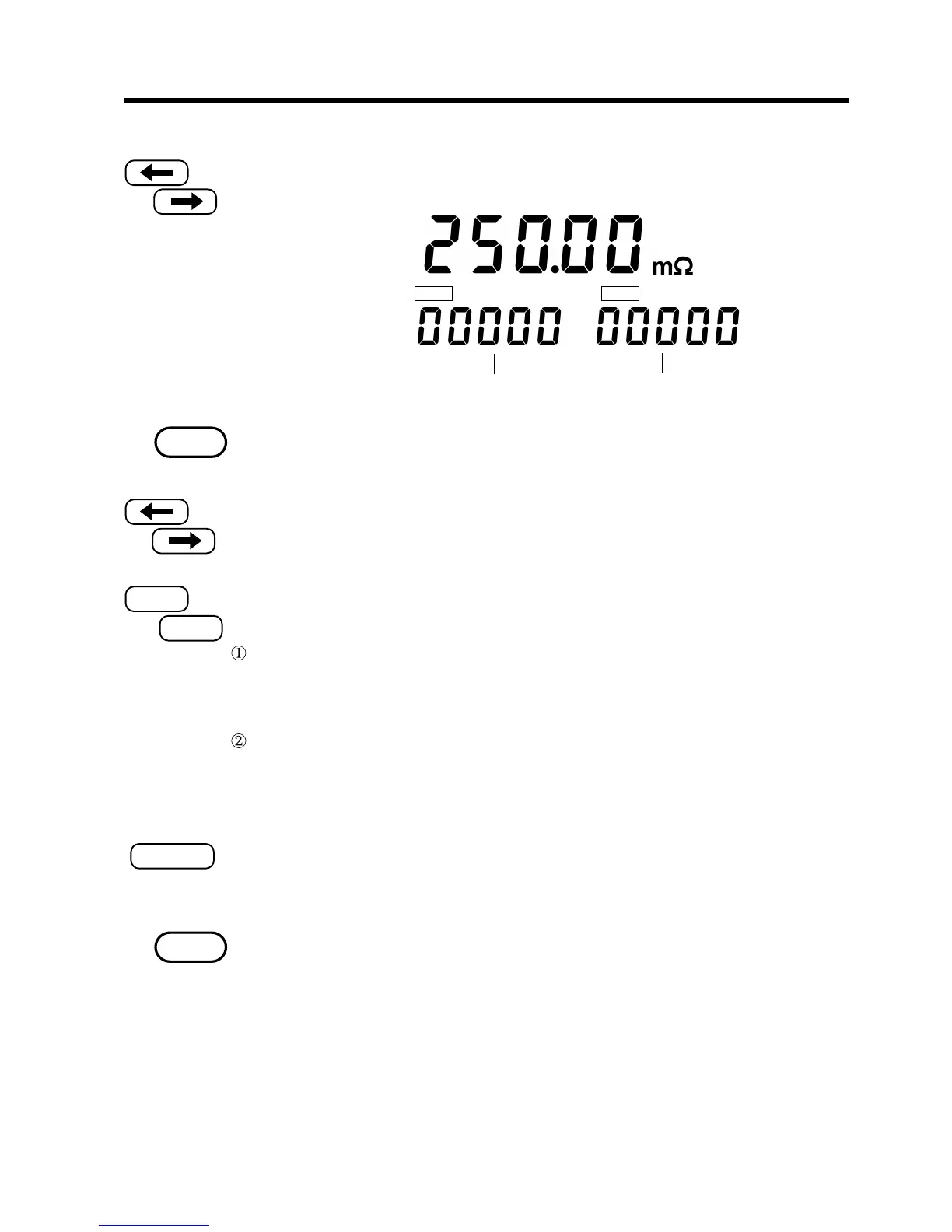

(1)Pressing the cursor keys, enter the comparator setting mode.
In this mode, set the current comparator table to be used. When the
comparator is not used, set the comparator table 1.
(2) Move flashing cursor to the setting items with the cursor keys.
(3) Set the items with the
UP or DOWN key.
See Section 1.3.4, "Comparator Function", for the details of the setting
contents.
Select the comparison method of the comparator
HIGH , LOW The comparator is compared as high limit value/low limit value.
REF, % The comparator is compared as standard value/range.
Select either high limit value/low limit value or standard value/range.
To change the value, move the cursor to that digit ("0" to "9").
The comparison range of the comparator is decided by these selection and the
comparison method of the comparator．
(4) Pressing the
ENTER key decides the setting contents and return to the
resistance measurement mode. Start comparing of the comparator according to
the comparator table.
Always set the high limit value bigger than the low limit value. If the bigger
low limit value is set, the setting contents are not decided, and the mode does
not return to the resistance measurement mode.
