GP-IB ADRS
DOWN
UP
NOTE
ENTER
CLEAR
NOTE
While displaying the converted temperature, the 3227 has only one
comparator setting table. In this case reference value/range comparisons also
cannot be executed. The comparator setting in this case is displayed as shown
below.

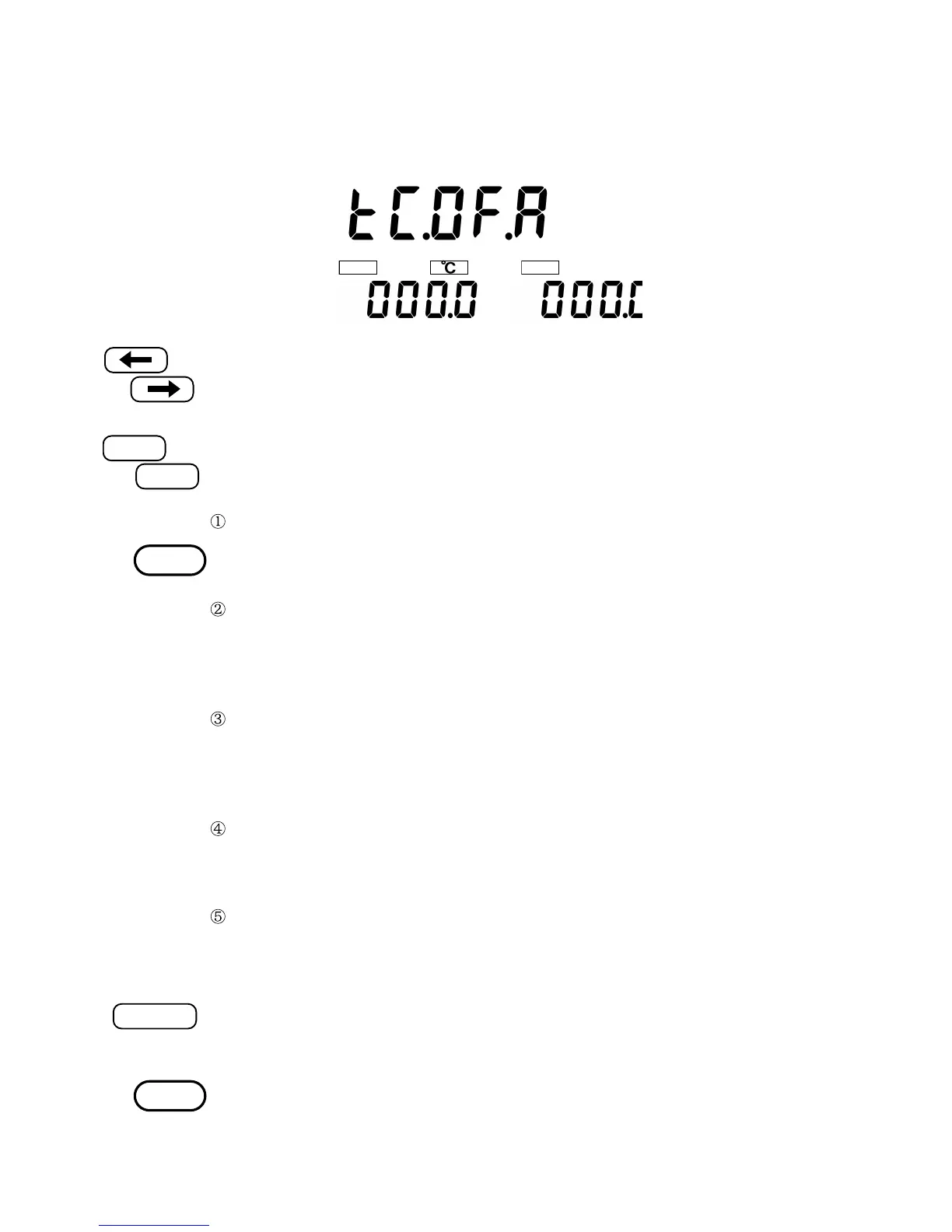

(3)Move the flashing cursor to the setting items with the cursor keys.
(4) Set the items with the
UP or DOWN key.
See Section 1.3.4, "Comparator Function", for the details of the setting
contents.
Select the comparator table number ( "01"to "15").
During using the temperature conversion function, comparator table number
is unable to change.
Select the buzzer mode.
HL The buzzer sounds in case of HIGH or LOW.
IN The buzzer sounds in case of IN.
OF No buzzer sound.
Select the mode of the external control terminal
A The comparator result is output with each samples.
E The comparator result is output by the "MANU
―――――――
" state in the external
control terminal.
Select the comparison method of the comparator
HIGH , LOW The comparator is compared as high limit value/low limit value.
REF, % The comparator is compared as standard value/range.
Select either high limit value/low limit value or standard value/range.
To change the value, move the cursor to that digit ("0" to "9").
The comparison range of the comparator is decided by these selection and the
comparison method of the comparator．
(5) Pressing the
ENTER key decides the setting contents and return to the
resistance measurement mode. Start comparing of the comparator according to
the comparator table.
Always set the high limit value bigger than the low limit value. If the bigger
low limit value is set, the setting contents are not decided, and the mode does
not return to the resistance measurement mode.
