Hioki 3237 - Sample Prints

124
_____________________________________________________________________________________________

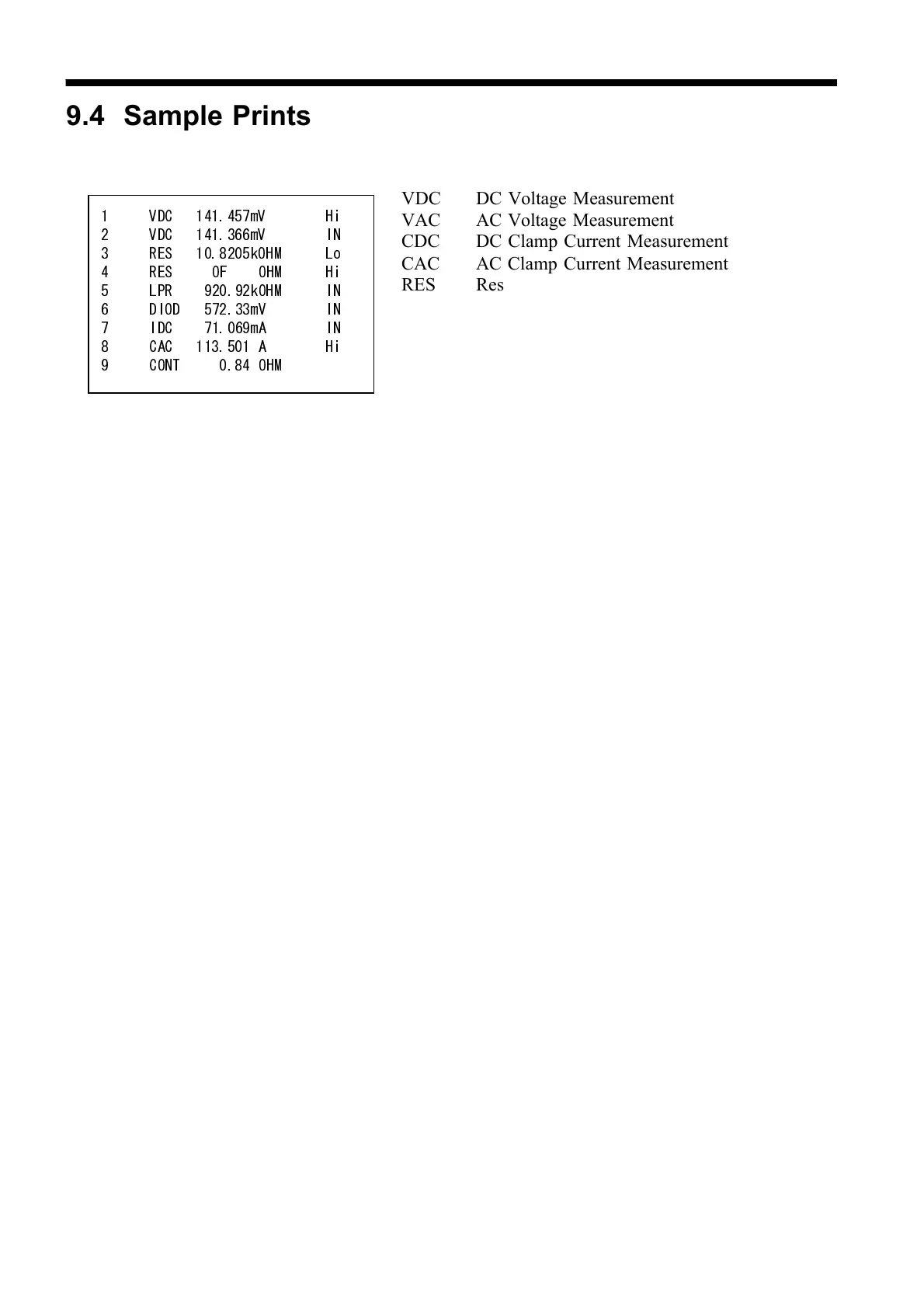

9.4 Sample Prints
______________________________________________________________________________________________
1 VDC 141.457mV Hi
2 VDC 141.366mV IN
3 RES 10.8205k OHM Lo
4 RES OF OHM Hi
5 LPR 920.92kOHM IN
6 DIOD 572.33mV IN
7 IDC 71.069mA IN
8 CAC 113.501 A Hi
9 CONT 0.84 OHM
9.4 Sample Prints
VDC DC Voltage Measurement
VAC AC Voltage Measurement
CDC DC Clamp Current Measurement
CAC AC Clamp Current Measurement
RES Resistance Measurement
LPR Low-power Resistance Measurement
CONT Continuity Test
DIOD Diode Test
FREQ Frequency Measurement (3238, 3239)
IDC DC Current Measurement (3238, 3239)
IAC AC Current Measuremen (3238, 3239)
FRES 4-Terminal Resistance Measurement (3239)
LPFR Low-power Resistance Measurement (3239)
