Hioki 3237 - Frequency Measurement (3238;39)

18
_____________________________________________________________________________________________

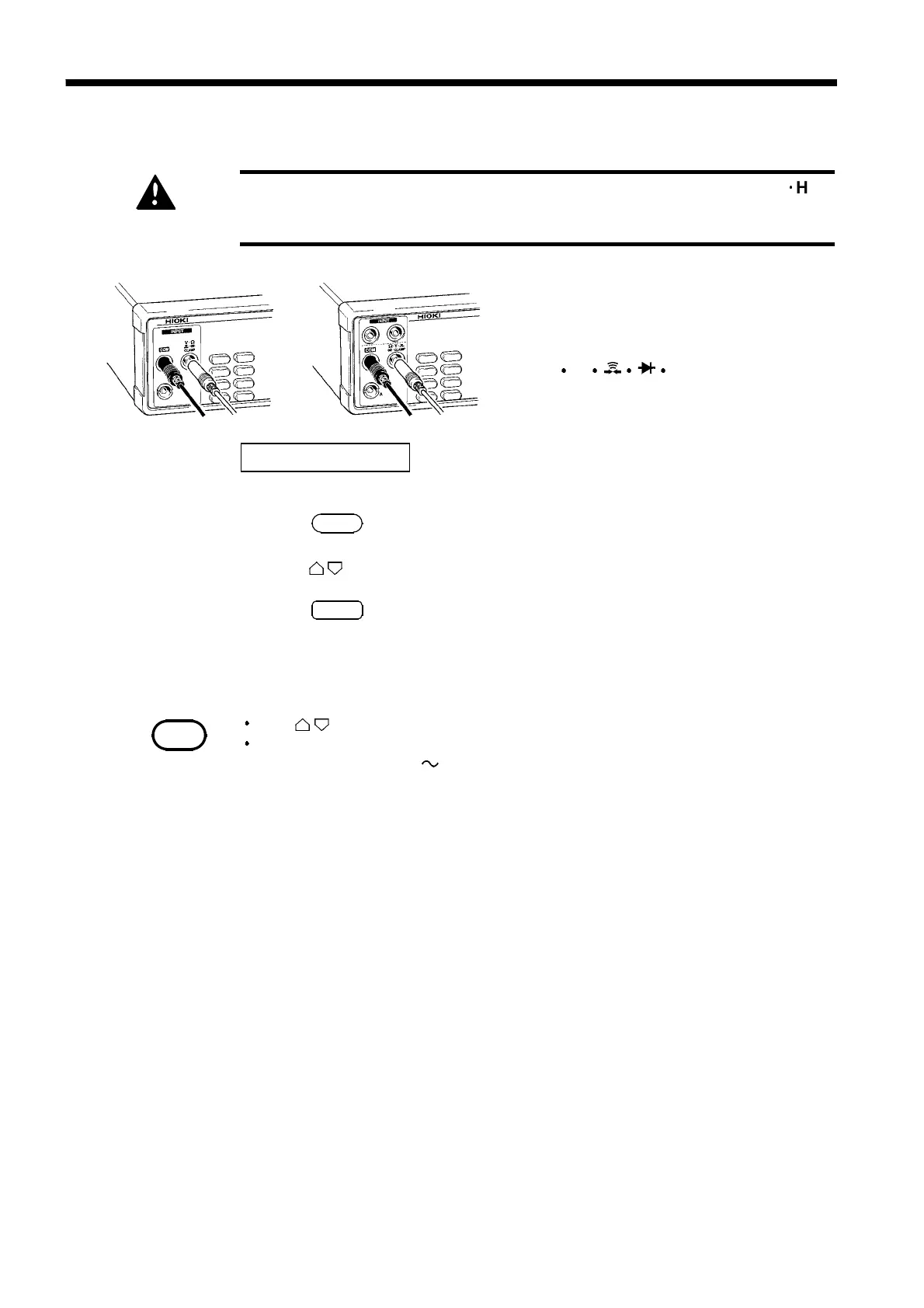

3.6 Frequency Measurement (3238/39)
______________________________________________________________________________________________
DANGER
The maximum rated working voltage is 600 VDC/700 VrmsAC (10
7
V ･ Hz).
Attempting to measure voltage in excess of the maximum rating could
destroy the product and result in personal injury or death.
Red
Black
Red
Black
3239
3238
L9170-10 TEST LEAD
NOTE
Press to set a range for the attenuator circuit (voltage divider circuit).
Input sensitivity is approximately 10% of the selected attenuator range. Check
the signal level with the
V function before measuring the frequency.
Example: The frequency of a 10 V signal can be measured in the attenuator range
of 2 V or 20 V, but not in the attenuator range of 200 V or 700 V.
3.6 Frequency Measurement (3238/39)
Check to make sure that the black lead of
the L9170-10 TEST LEAD is connected
to the COM terminal and the red lead to
the V Ω CLAMP terminal.
1
.Press
Hz
.
2
.Press to select an attenuator range.
3
.Press
SMPL
to select a sampling period.
(See 4.2 Switching of Sampling Period.)
4
. Connect the test lead to the sample being measured and read the value.
