Hioki 3237 - Current Measurement (3238;39); DC Current Measurement; AC Current Measurement

19
_____________________________________________________________________________________________

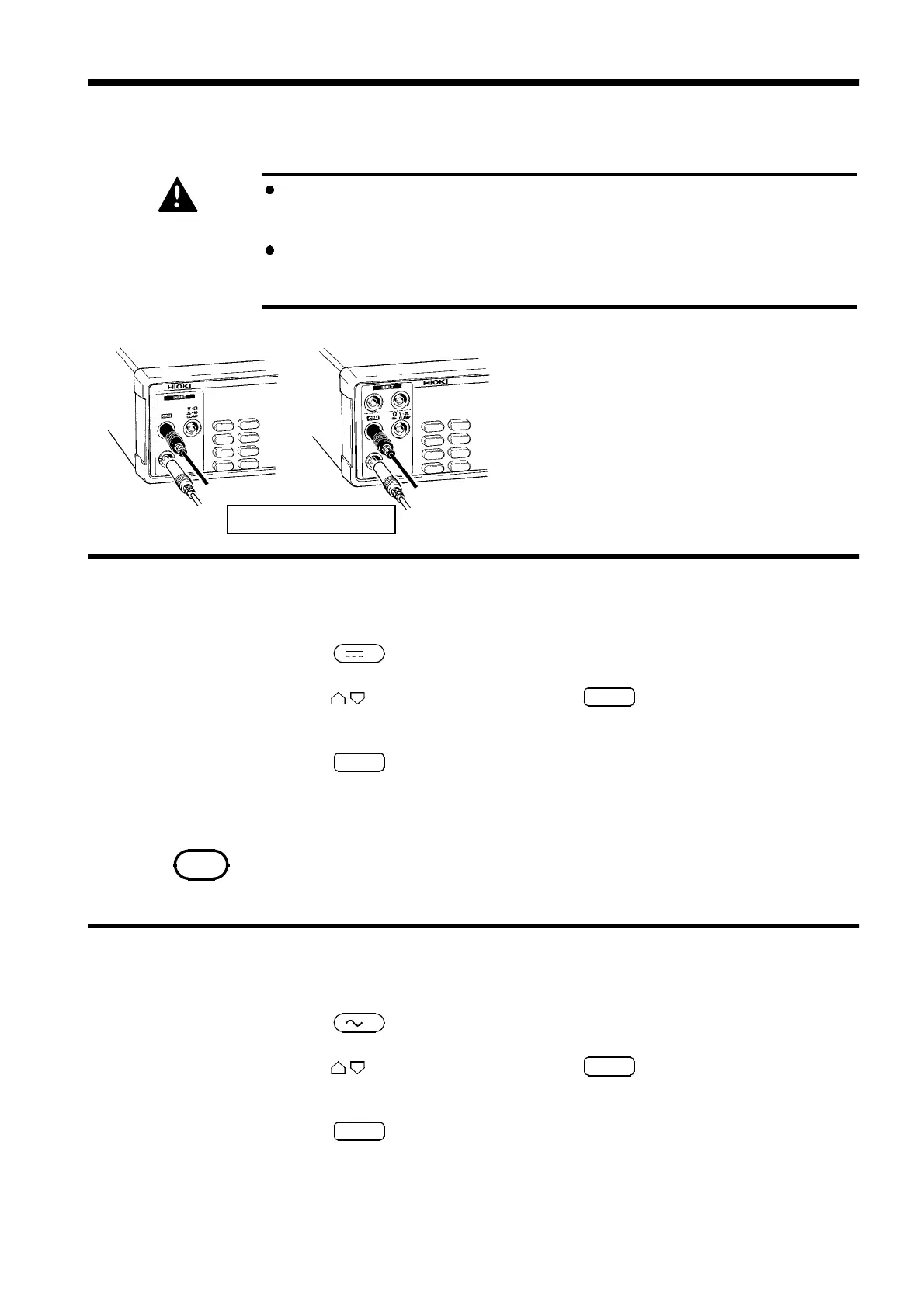

3.7 Current Measurement (3238/39)
______________________________________________________________________________________________
DANGER
The maximum rated working current is 2 ADC/AC. Attempting to input
current in excess of the maximum rating could destroy the product
and result in personal injury or death.
Never apply voltage to A-terminal. Doing so may damage the product
and result in personal injury. To avoid electrical accidents, remove
power from the circuit before measuring.
Red
Black
3239
3238
Red
Black
L9170-10 TEST LEAD
3.7.1 DC Current Measurement
NOTE
After measuring large current, the terminal may become hot, producing
thermoelectric power that may cause incorrect measurement results.
Therefore, after measuring large current, wait a moment before measuring
again.
3.7.2 AC Current Measurement
3.7 Current Measurement (3238/39)
Check to make sure that the black lead of
the L9170-10 TEST LEAD is connected
to the COM terminal and the red lead to
the A-terminal.
1
.Press
A
.
2
.Press to select a range. Or press
AUTO
to select Auto Range.
(See 4.1 Selection of Measurement Range.)
3
.Press
SMPL
to select a sampling period.
(See 4.2 Switching of Sampling Period.)
4
. Connect the test lead to the sample being measured and read the value.
1
.Press
A
.
2
.Press to select a range. Or press
AUTO
to select Auto Range.
(See 4.1 Selection of Measurement Range.)
3
.Press
SMPL
to select a sampling period.
(See 4.2 Switching of Sampling Period.)
4
. Connect the test lead to the sample being measured and read the value.
