Hioki 3237 - Trigger Delay

27
_____________________________________________________________________________________________
4.5 Trigger Function
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
4.5.3 Trigger Delay
FAST MEDIUM SLOW
DCV 3ms 3ms 3ms
ACV 500 ms 800 ms 1.5 s
DCA 3ms 3ms 3ms
ACA 500 ms 800 ms 1.5 s
Ω
200 Ω to 200 kΩ range 3ms 3ms 3ms
2MΩ range 20 ms 20 ms 20 ms
20 MΩ range 100 ms 100 ms 100 ms
100 MΩ range 500 ms 500 ms 500 ms
LPΩ 2to20kΩ range 3ms 3ms 3ms
2MΩ, 200 kΩ range 20 ms 20 ms 20 ms
Hz 10 ms 10 ms 10 ms
The delay time from the application of a trigger signal until the start of
measurement is set. If this function is in use, measurement begins when the
measurement values have stabilized, even if a trigger is applied immediately
following the connection of the sample.
The following two types of trigger delay are available:

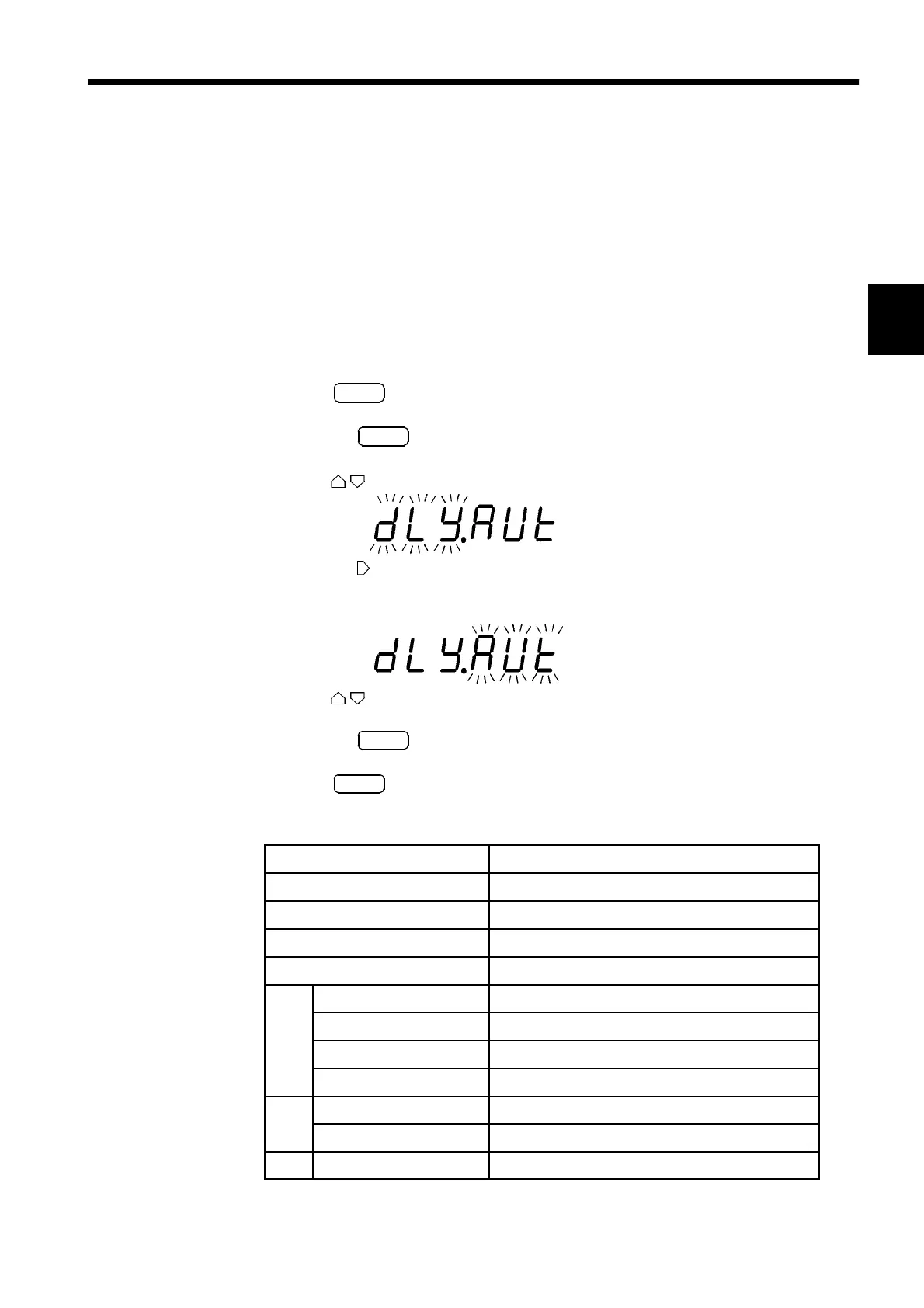

(1) Auto Delay
The unit automatically sets a delay time.
1
.Press
SHIFT
."SHIFT" lights up on the display.
2
. Pressing
ENT
displays the menu screen.
3
.Press to display the trigger delay setup screen.
4
. Pressing causes the currently set trigger delay to flash.
"AUt": Auto delay
"SEt": Manual delay
5
.Press to select auto delay ("AUt").
6
. Pressing
ENT
causes "dLy" to flash.
7
.Press
ENT
again to define your selection.
Wait Times of Auto Delay
