Hioki 3237 - Voltage Measurement; DC Voltage Measurement; AC Voltage Measurement

12
_____________________________________________________________________________________________

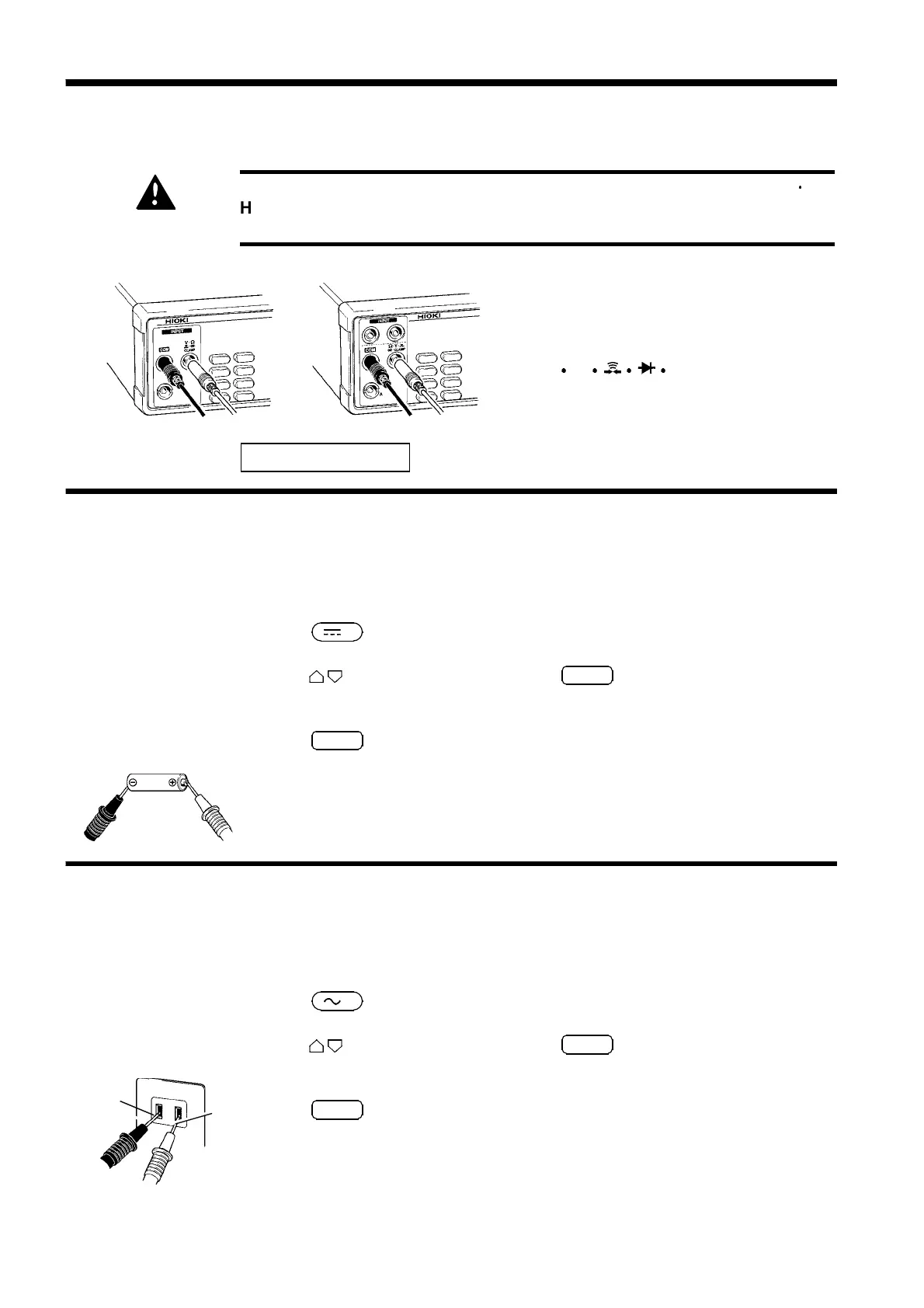

3.1 Voltage Measurement
______________________________________________________________________________________________
DANGER
The maximum rated working voltage is 1000 VDC/700 VrmsAC (10
7
V ･
Hz). Attempting to measure voltage in excess of the maximum rating
could destroy the product and result in personal injury or death.
Red
Black
Red
Black
32393237/38
L9170-10 TEST LEAD
3.1.1 DC Voltage Measurement
3.1.2 AC Voltage Measurement
N
L
3.1 Voltage Measurement
Check to make sure that the black lead of
the L9170-10 TEST LEAD is connected
to the COM terminal and the red lead to
the V Ω CLAMP terminal.
1
. Make sure that "SHIFT" does not light on the display.
2
.Press
V
.
3
.Press to select a range. Or press
AUTO
to select Auto Range.
(See 4.1 Selection of Measurement Range.)
4
.Press
SMPL
to select a sampling period.
(See 4.2 Switching of Sampling Period.)
5
. Connect the test lead to the sample being measured and read the value.
1
. Make sure that "SHIFT" does not light on the display.
2
.Press
V
.
3
.Press to select a range. Or press
AUTO
to select Auto Range.
(See 4.1 Selection of Measurement Range.)
4
.Press
SMPL
to select a sampling period.
(See 4.2 Switching of Sampling Period.)
5
. Connect the test lead to the sample being measured and read the value.
