Hioki 3237 - Chapter 11 Maintenance and Service

147
_____________________________________________________________________________________________

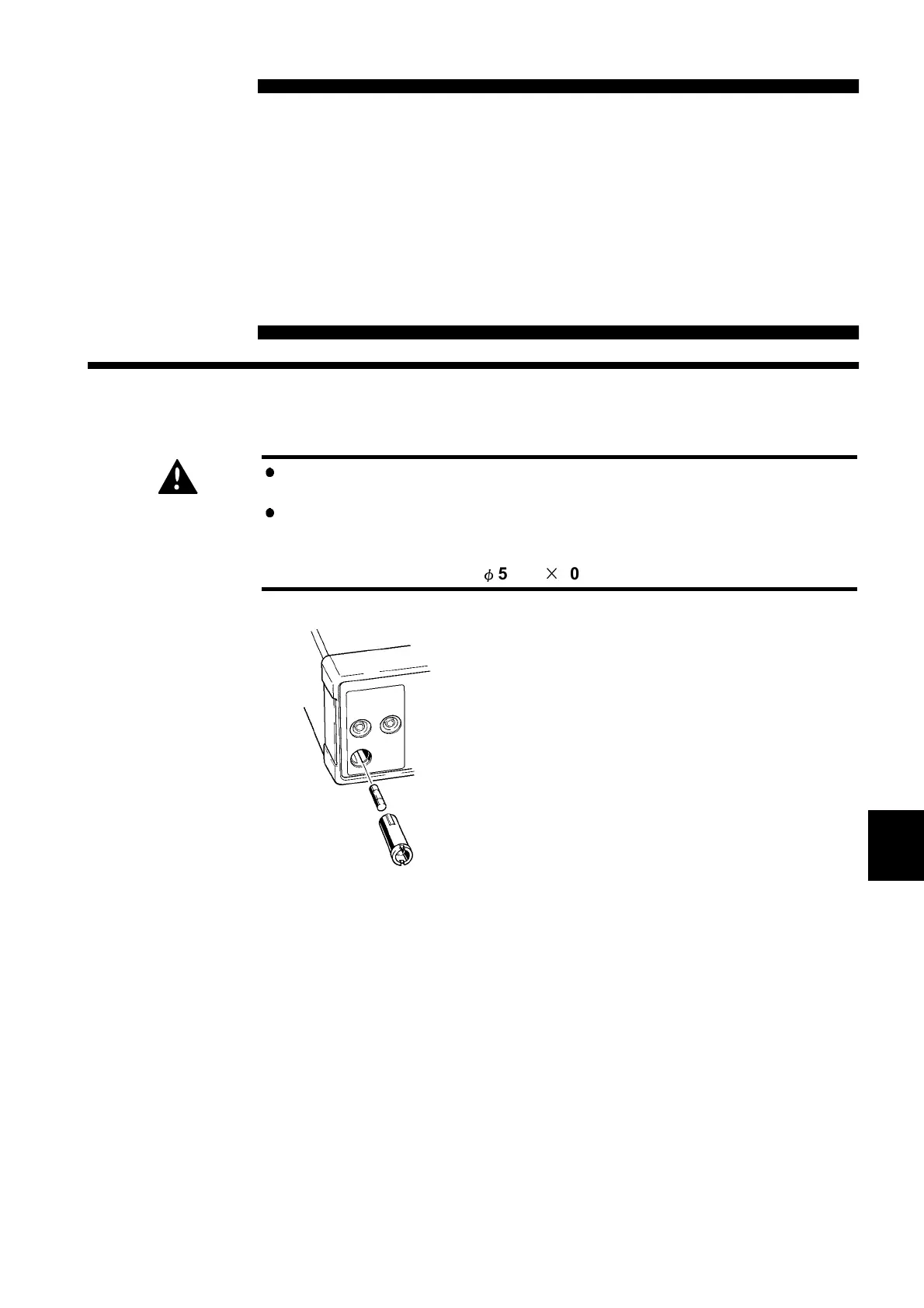

11.1 A-Terminal Fuse Replacement (3238/39)
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
DANGER
To avoid electric shock when replacing the fuse, first disconnect the
test leads from the object to be measured.
Replace the fuse only with one of the specified characteristics and
voltage and current ratings. Using a non-specified fuse or shorting
the fuse holder may cause a life-threatening hazard.
Fuse type: F2.0 A/250 V, φ 5mm × 20 mm (Littelfuse,INC 216002)
A-terminal
Fuse
Chapter 11
Maintenance and Service
11.1 A-Terminal Fuse Replacement (3238/39)
1
. Turn the A-terminal 90 degrees while pressing it
in.
2
. The A-terminal comes off.
3
. Remove the blown fuse and replace with a spare
fuse.
4
. Insert the A-terminal into the unit and lock it by
turningit90degrees.
