5.1 Comparator Function
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
Setting of comparator
Measurement (comparator: OFF)
The upper-limit value is set.
The lower-limit value is set.
COMP
ENT
COMP
ENT
COMP
ENT
COMP
Measurement (comparator: ON)
NOTE
The Comparator function cannot be used in Auto Range.
The Comparator function cannot be used with the continuity test
function or fre
q
uenc
y
measurement function.
Chapter 5
Other Functions
5.1 Comparator Function
The Comparator function compares the measurement value with the upper-
limit and lower-limit values previously set, determines the appropriate range
for the measurement value, and displays the determination.

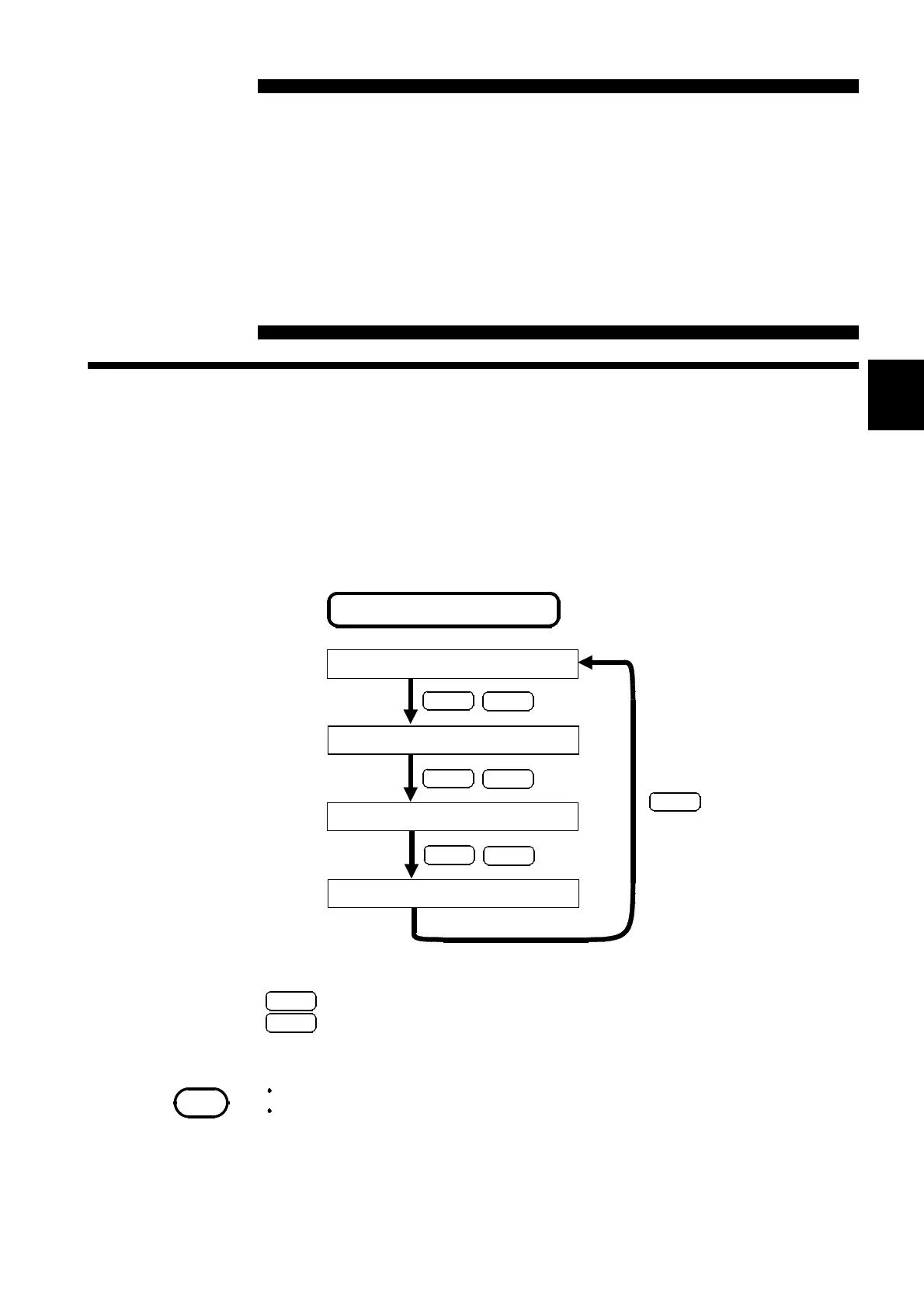

The flow of comparator setup is given below:
ENT
:
Confirms the current setting and proceeds to the next setup.
COMP
:
Proceeds to the next setup without confirming the current setting.
(Cancellation)
