Hioki 3237 - Printer Connection Method

123
_____________________________________________________________________________________________
9.3 Printer Connection Method
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
WARNING
Always observe the following safety precautions when connecting a
printer. Failure to observe these safety precautions may result in
electrocution or damage to the equipment.
Always turn off the product and the printer before making any
connections.
Because of the inherent dangers of such situations, be careful to
prevent the connections from coming loose or leads from coming into
contact with other conductors. Make sure the connections are secure.
NOTE
In the external trigger state, you can also print by pressing the
M.TRIG
key.
3237/38/39
9442
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9

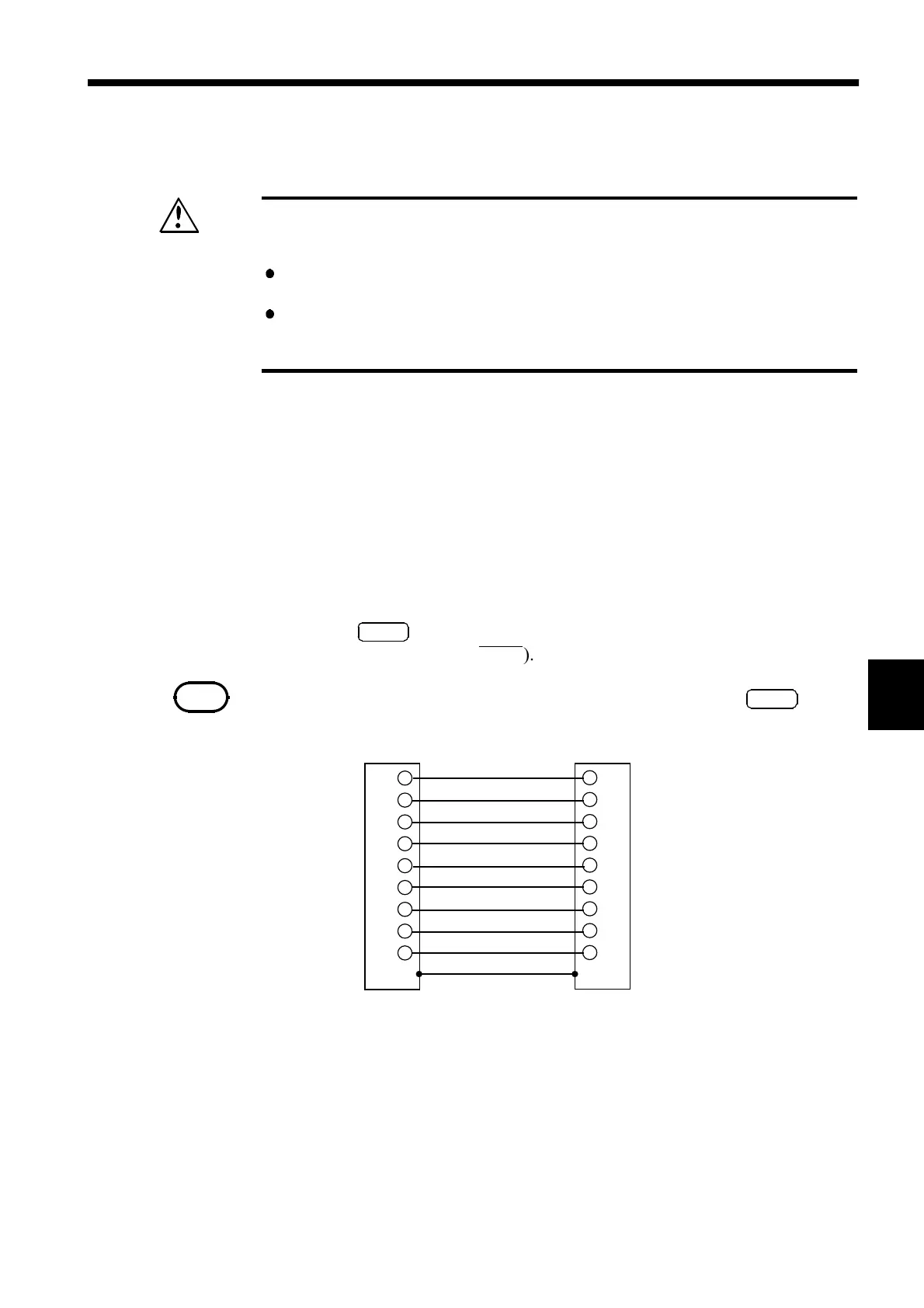

9.3 Printer Connection Method
Make settings for the unit and the printer.
1
. Turn off power to the unit and the 9442 PRINTER.
2
. Connect one end of the 9444 CONNECTION CABLE to the RS-232C
connector for the 3237/38/39. Connect the other end to the connector
marked SERIAL on the printer.
3
. After connecting the cable, turn on power for the unit and the printer.
4
. Pressing
ENT
initiates printing. Printing is also initiated from the
external trigger terminal (TRIG
―――――――
).
