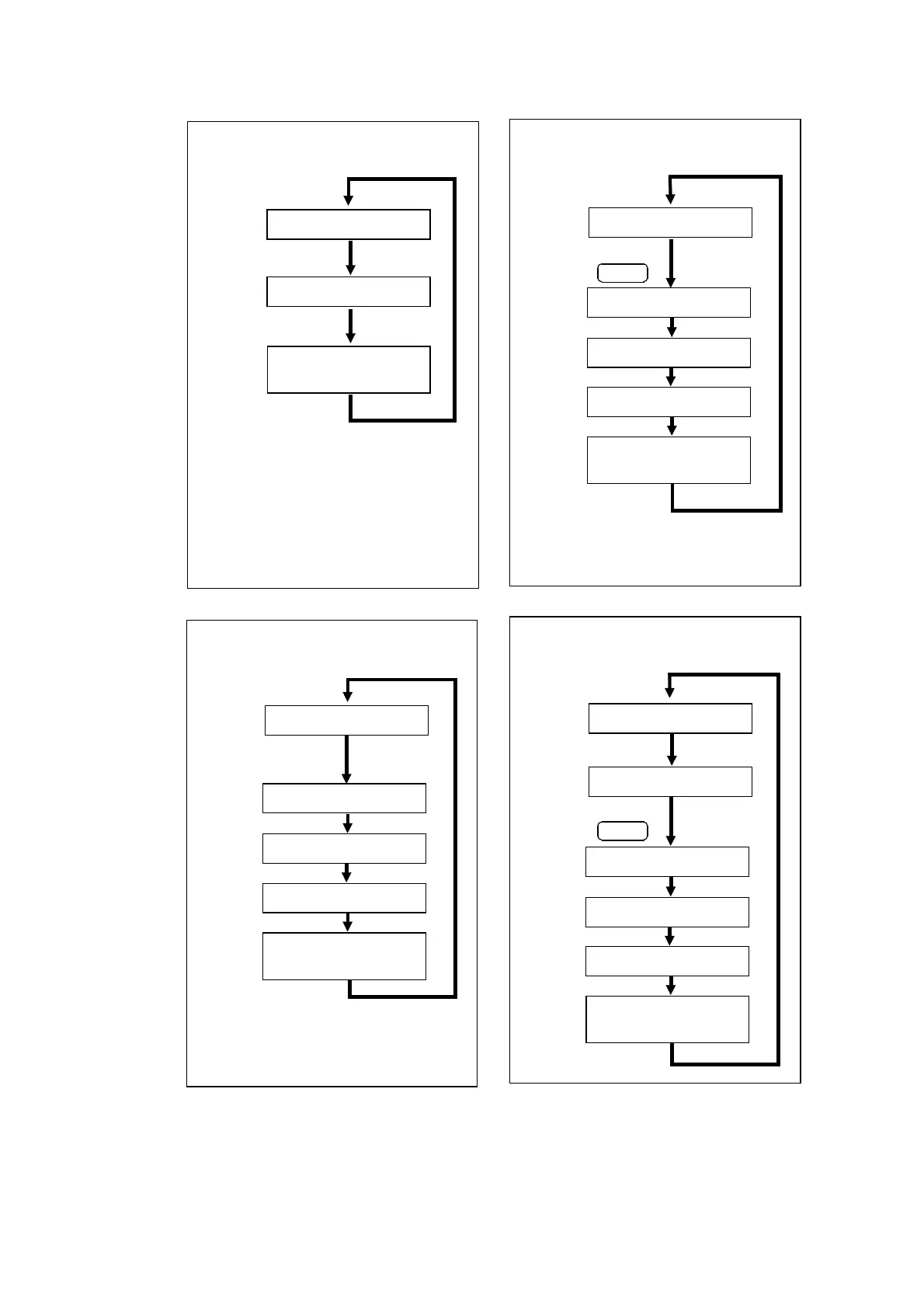

4.5 Trigger Function
______________________________________________________________________________________________
TRIG terminal
:INITIATE:CONTINUOUS ON
:TRIGGER:SOURCE IMMEDIATE
Measurement
Computed result
Measurement value
output
:INITIATE:CONTINUOUS ON
:TRIGGER:SOURCE EXTERNAL
Wait state for trigger
Measurement
Trigger delay
computed result
Measurement value
output
M.TRIG
:INITIATE:CONTINUOUS OFF
:TRIGGER:SOURCE IMMEDIATE
:INITIATE:CONTINUOUS OFF
:TRIGGER:SOURCE EXTERNAL
:INITIATE:IMMEDIATE
Idle state
Measurement
Trigger delay
computed result
Measurement value
output
:INITIATE:IMMEDIATE
Idle state
TRIG terminal
Wait state for trigger
M.TRIG
Measurement
Trigger delay
computed result
Measurement value
output
