9.5 Replacing the Test Lead Pin
142
The conductive-tip contact pin is replaceable. Replace the pin
with a new one if it is broken or worn. One-piece conductive-tip
contact pins with a plastic pin base are available separately.

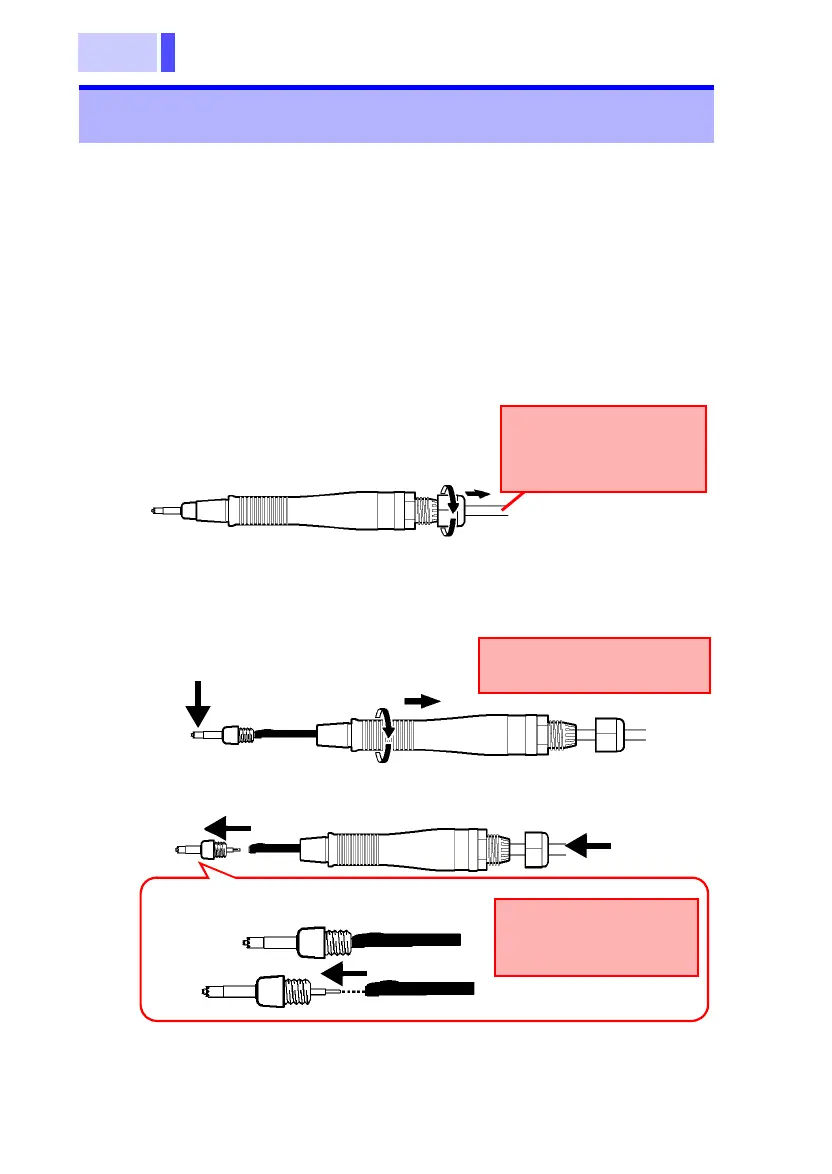

9.5 Replacing the Test Lead Pin
1.
Turn off the power of the instrument and remove the
cable.
2.
Unscrew the cable lock to unlock the cable.
(The cable is locked by screwing the cable lock.)
3.
Hold the pin base so that the cable won’t rotate, and then
rotate the grip to loosen it.
4.
Pull off the connector and remove the pin.
(1) (2)
To prevent broken
wires; do not pull the
cable, and do not twis
t
the cable.
Model 9465-10
(1) Hold the pin base tightly.
(2)
(3)
Beware of injury.
The tip has a sharp poin
t.
The 9465-90 tip pin
Do not apply a load to
the cable to prevent
broken wires.
