Hioki 3554 - Chapter 4 Comparator Feature; 4.1 Overview

53
4.1 Overview
索引
4
3
2
1
7
6
5
10
9
8
Comparator Feature
The comparator feature can be used to determine in which of the
following ranges measurements fall, by comparing them with
preset permissible values and battery measured values: pass,
warning, or fail. Up to 200 comparator conditions can be set.
Refer to "Section 1.1 Measuring Battery Wear" (⇒ p.13) for how
to determine permissible values.
Under the initial configuration, when a measurement falls in the
warning or fail range, a buzzer will sound.
For more information, refer to "Section 4.4 Setting the Compar-
ator Buzzer" (⇒ p.61).

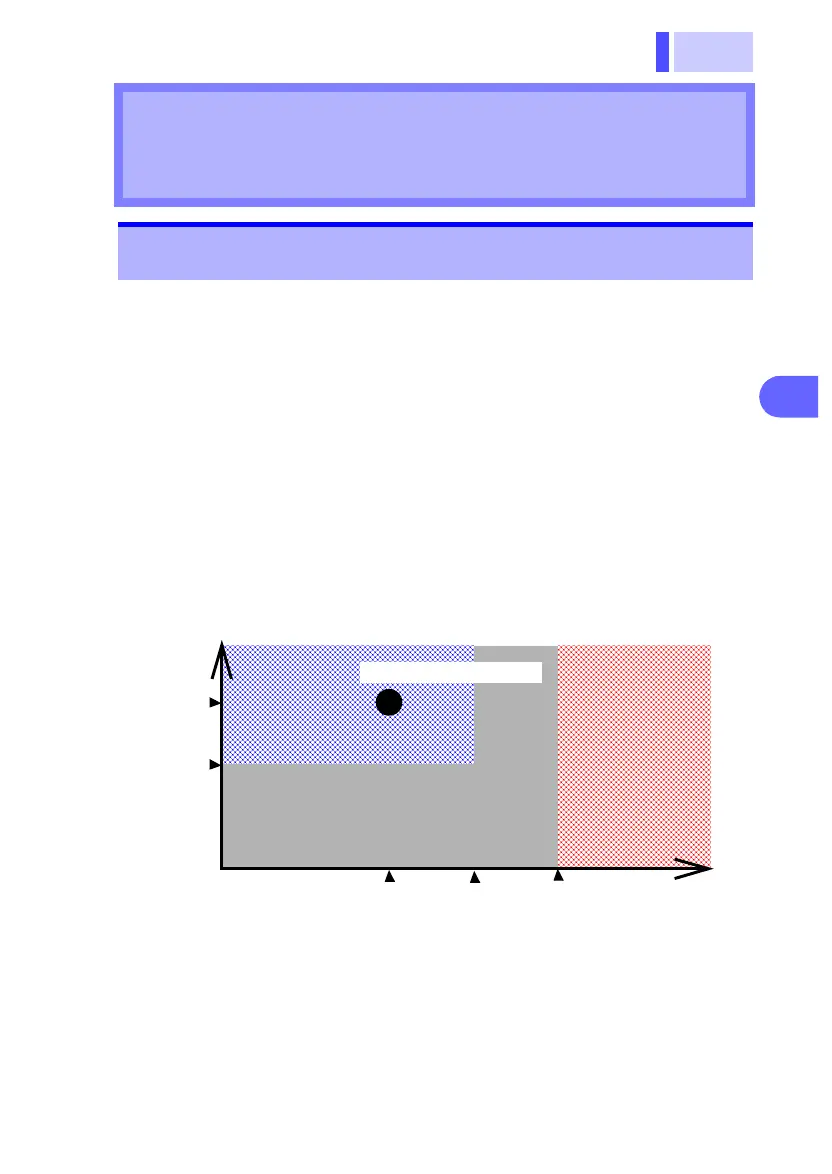

Permissible values include the following: resistance upper limit
no. 1 (caution), resistance upper limit no. 2 (warning), and the
voltage lower limit (caution).
Comparator
Feature
Chapter 4
4.1 Overview
FAIL
WARNING
PASS
V
oltage
l
ower limit
Initial
value
Voltage
Initial
value
Resistance
upper limit
no. 1
Resistanc
e
Measurement value
Resistance
upper limit
no. 2
