4.3 Setting Comparator Permissible Values
索引
4
3
2
1
7
6
5
10
9
8
Comparator Feature
Set the comparator permissible values (resistance upper limit
no. 1, resistance upper limit no. 2, and the voltage lower limit).
4.3 Setting Comparator Permissible
Values
<Example>
Permissible values for a battery with initial values (i.e., resis-
tance and voltage values when new or in good condition) of
0.4 Ω and 2 V:
Resistance upper limit no.1: 0.6 Ω (1.5 times initial value)
Resistance upper limit no.2: 0.8 Ω (2 times initial value)
Voltage lower limit: 1.8 V

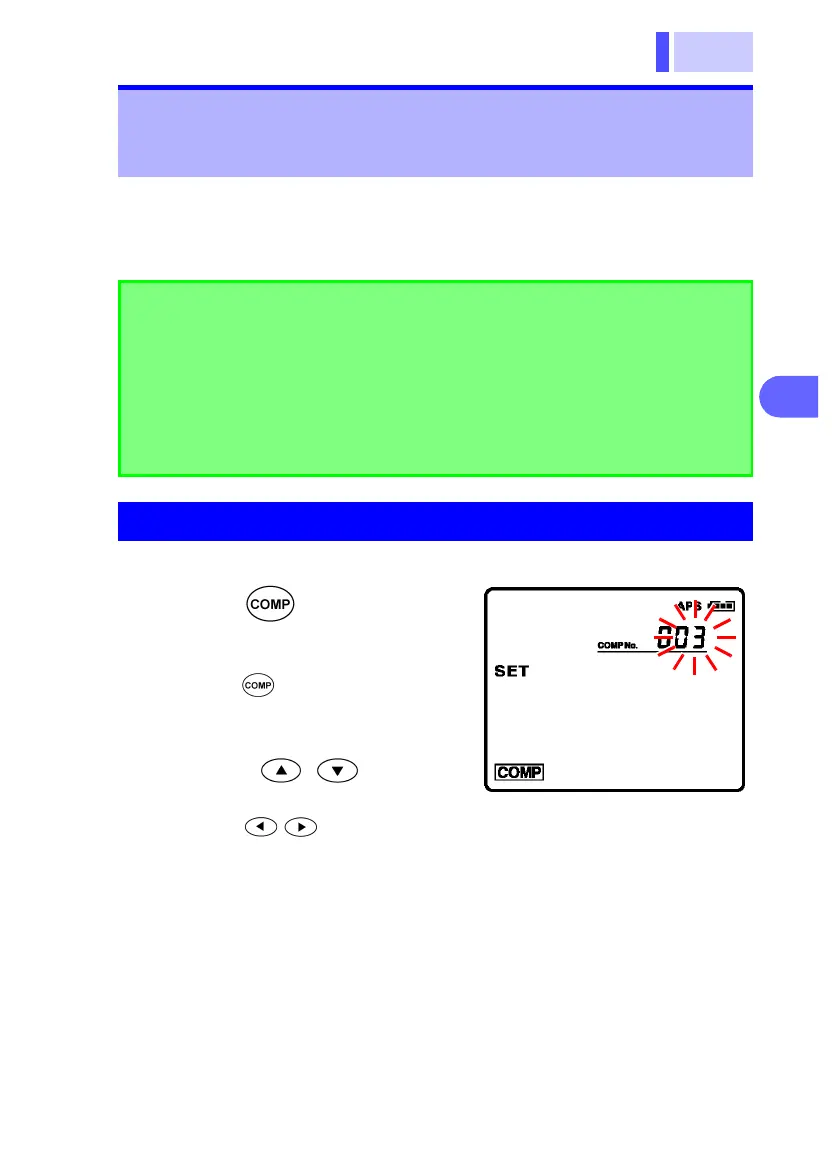

Select the Comparator No.
1.
Press key for two sec-
onds or longer.
The comparator no. will flash.
Press key again to return
to ordinary settings.
2.
Press / keys to
select the comparator no.
Press / keys to select
digits.
3.
Press this key to complete the setting of comparator nos.
and return to the range-setting screen.
In this example, comparator
no. 3 has been selected
(available range: 0 - 200)
