3.7 Temperature Measurement
索引
4
3
2
1
7
6
5
10
9
8
Measurement

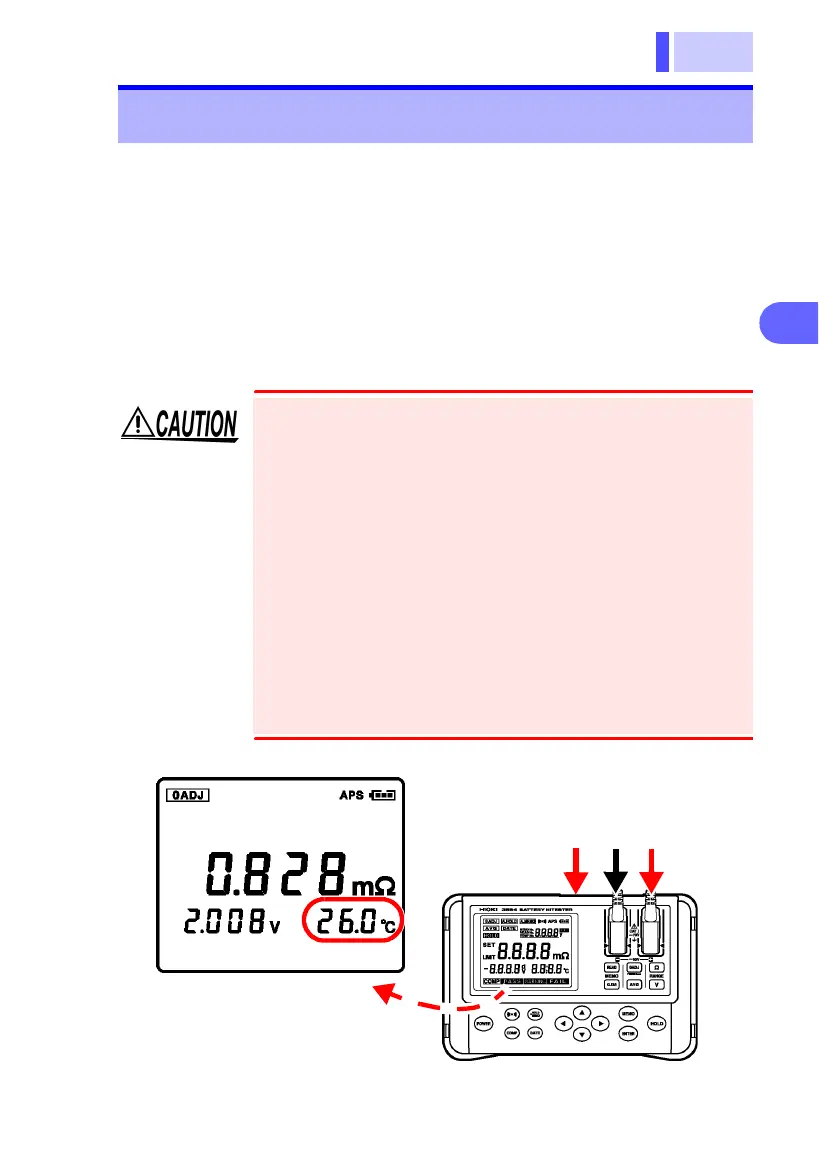

Use the optional 9460 CLIP TYPE LEAD WITH TEMPERA-
TURE SENSOR with temperature sensor to measure battery
temperature.
Connect the red connector of the clip-type lead with temperature
sensor to the SENSE terminal, the black connector to the
SOURCE terminal, and the miniplug to the TEMP. SENSOR ter-
minal. The instrument will detect the temperature sensor and
display the measured temperature automatically.
3.7 Temperature Measurement
• For safety reasons, when taking measurements,
only use the optional 9460 CLIP TYPE LEAD
WITH TEMPERATURE SENSOR with the
instrument.
• The sensor used in the temperature probe is a
thin, precision platinum film. Be aware that
excessive voltage pulses or static discharges
can destroy the film.
• Avoid subjecting the temperature probe tip to
physical shock, and avoid sharp bends in the
leads. These may damage the probe or break a
wire.
Black Red
Miniplug
Temperature displayed
Model 9460
