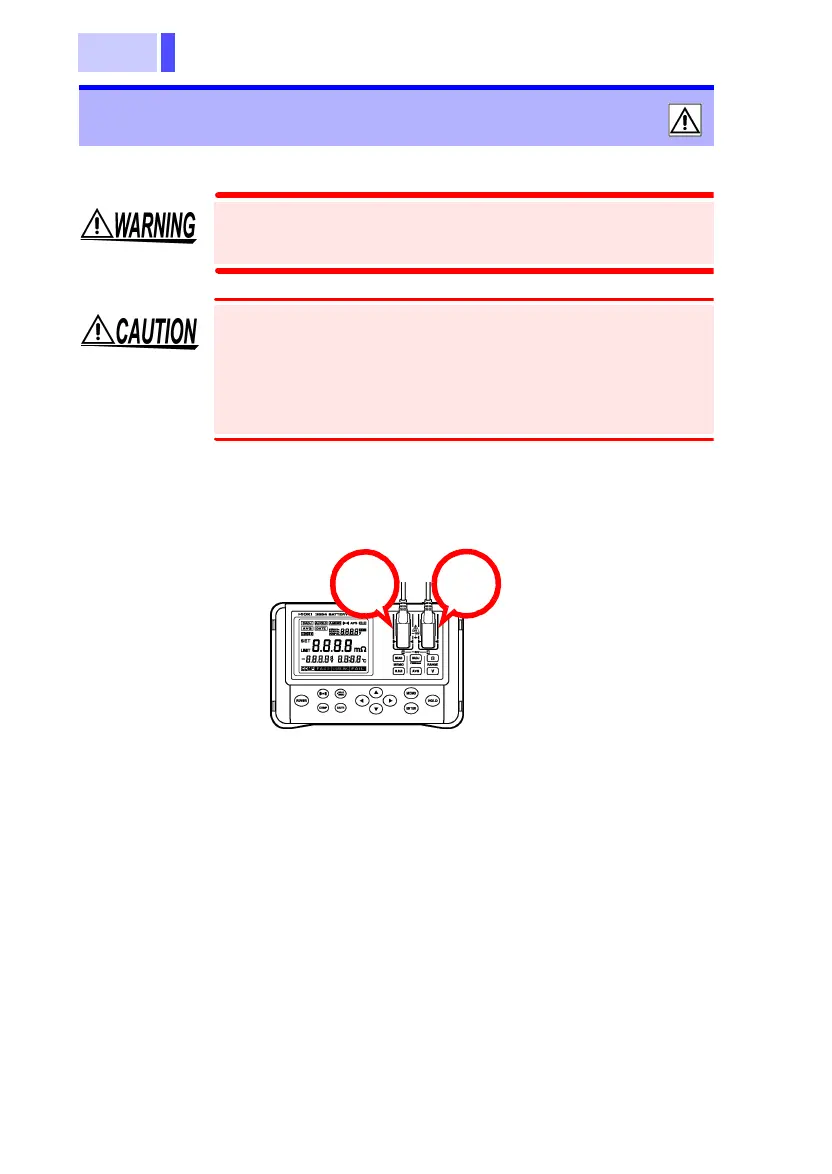

2.3 Connecting the Test Lead
Connect the test lead to the instrument. Be sure to connect all
four terminals: SOURCE (+, -) and SENSE (+, -).
When using the optional 9460 CLIP TYPE LEAD WITH TEM-
PERATURE SENSOR with temperature sensor, connect the
miniplug to the TEMP. SENSOR terminal. "Section 3.7 Temper-
ature Measurement" (⇒ p.51)
2.3 Connecting the Test Lead
To avoid electric shock, be sure to connect
the test leads properly.
• For safety reasons, when taking measurements,
only use the test lead provided with the instru-
ment.
• The ends of the test leads are sharp. Be careful
to avoid injury.
Black
Red
