Hioki 3554 - Page 37

29
2.3 Connecting the Test Lead
索引
4
3
2
1
7
6
5
10
9
8
Measurement Preparations
The 9465-10 or the 9772 PIN TYPE LEAD (optional) and the
9466 REMOTE CONTROL SWITCH (optional) can be combined
as shown below.
Connect the switch to the probe of the lead, and join the two
cables using the supplied spiral tube.

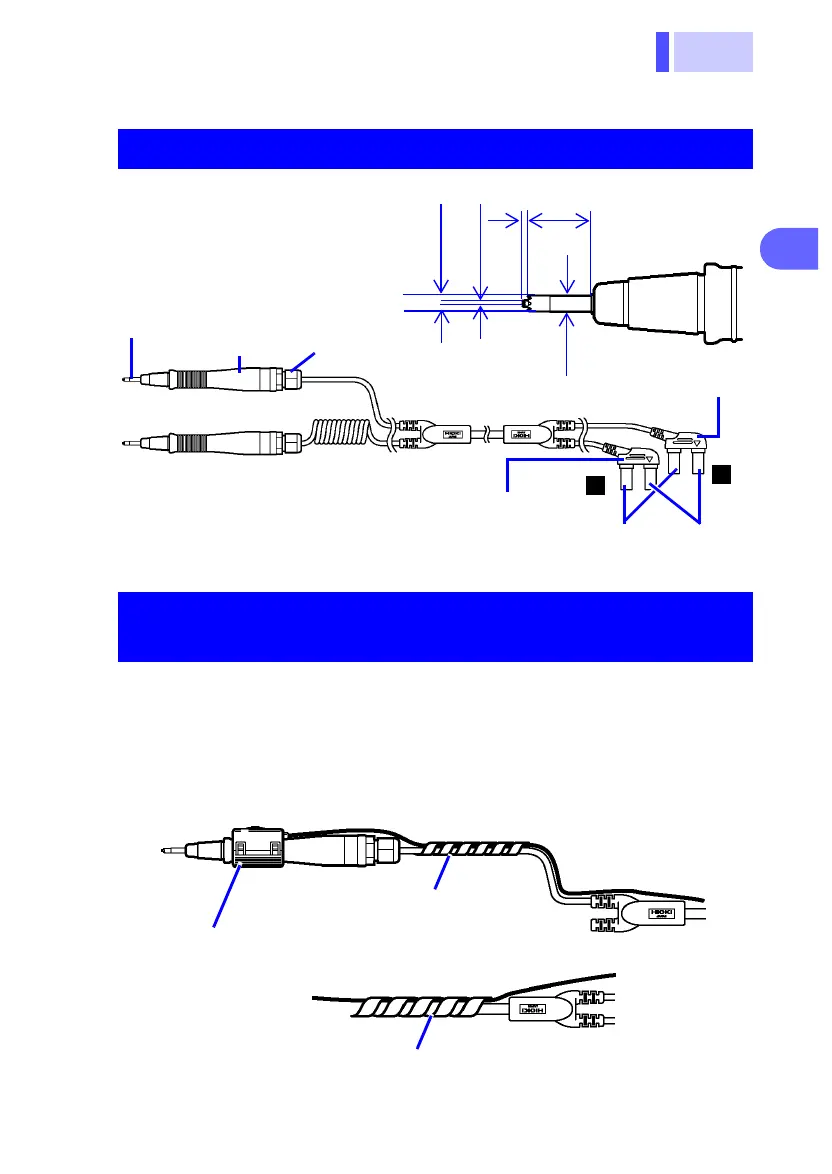

External Dimensions of the 9465-10 PIN TYPE LEAD
C
onductive contact pin
(
coaxial pin)
Grip
Cable lock
13.51
φ2.7
φ1.27
φ2.9
Unit: mm
SOURCE
SENSE
Banana plug (black)
+
-
Banana plug (re
d)
Probe (red)
Probe (black)
Connecting the Test Lead and Remote Control
Switch
Spiral tubes (large)
Spiral tubes (small)
Model 9466 REMOTE CONTROL SWITCH
