10-30 Vehicle Care

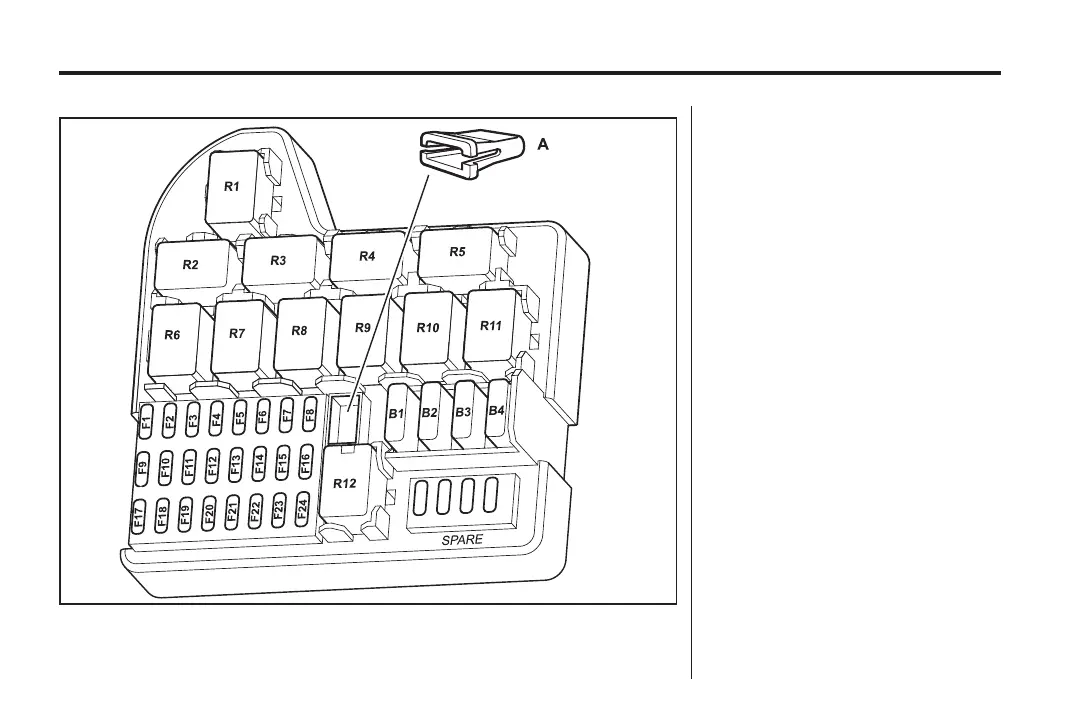

A. Fuse puller
Cabin fuse and relay index
The vehicle may not be equipped
with all of the fuses, relays and
features shown.
Circuit breakers:
B1 POWER
WINDOWS
BATTERY
(20A)
B2 POWER
WINDOWS RAP
(20A)
B3 POWER SEATS (20A)
B4 SPARE
Fuses:
F1 AIRBAGS (10A)
F2 REAR END
RELEASE/SEDAN
(10A)
WAGON (30A)
F3 DOOR LOCKS (25A)
F4 INADVERT
POWER/LED DIM
(15A)
