The rear power socket is located in
the boot on the passenger side.
It operates with the ignition on or off.
Warning Lights,
Gauges, and
Indicators

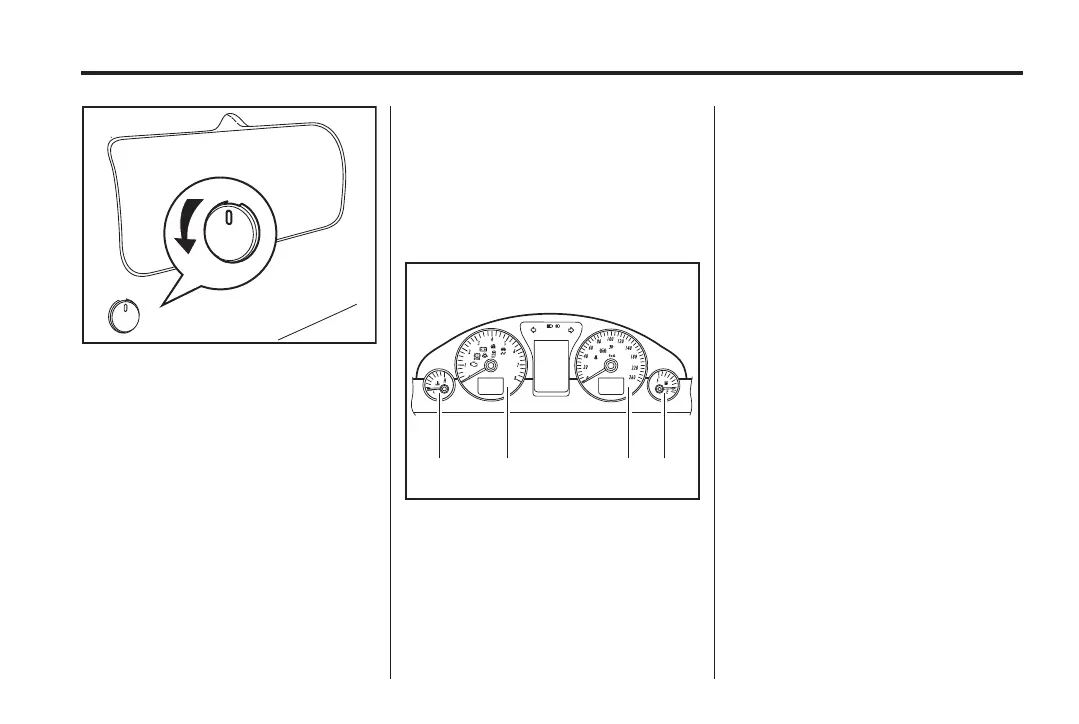

Instrument Cluster
rpm
/000
km/h
A B C D
A. Engine coolant temperature
gauge
B. Tachometer
C. Speedometer
D. Fuel gauge
Speedometer
Speedometer (C), shows vehicle
speed in kilometres per hour (km/h).
Tachometer
Tach omet er (B), shows engine
speed in thousands of revolutions
per minute (RPM).
Fuel Gauge
Fuel gauge (D), shows the level of
fuel in the fuel tank (E =empty,F
= full).
Note: Large additions of fuel will
change the gauge reading quickly.
Small additions can take up to
10 minutes to register. This prevents
false readings due to fuel movement
when cornering.
