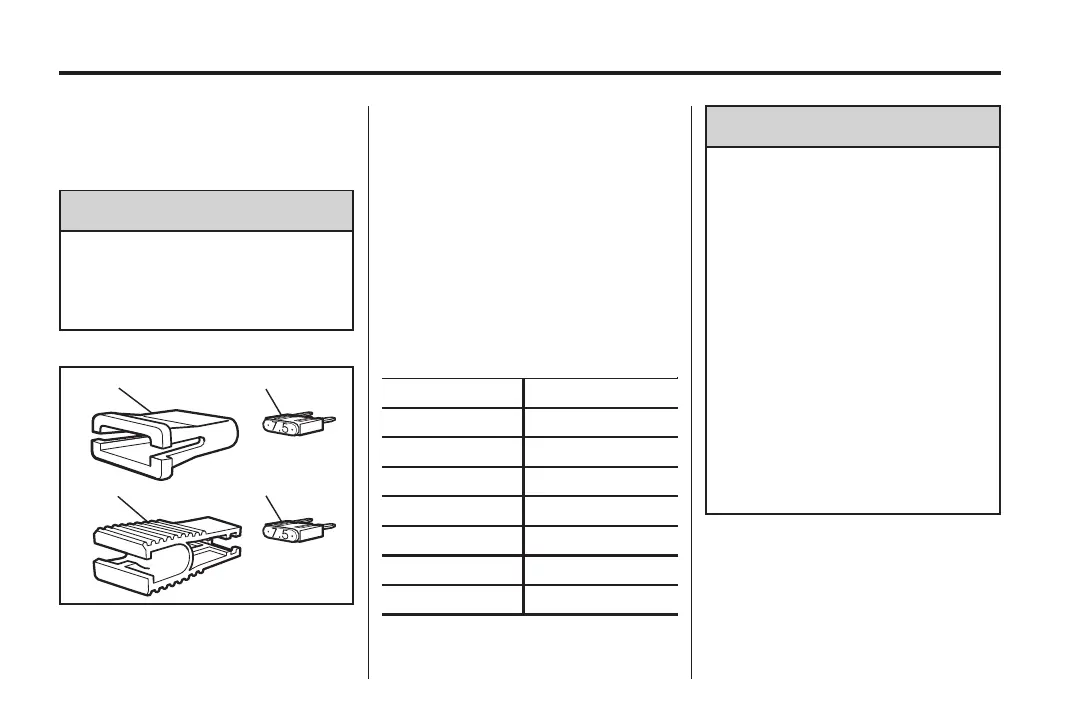

Black plate (28,1)
Holden WM Caprice Owner Manual (MY12.5) - 2012 - CRC 1st Edition - 6/28
/
12
10-28 Vehicle Care
Electrical System
Fuses
{
WARNING
Switch off the ignition (LOCK
position) and any electrical
equipment before changing
afuse.
B
B
A
A
A. Fuse puller
B. Fuse
A fuse puller is provided in the cabin
and engine compartment fuse
panels, which can be used on each
of the three fuse panels.
Spare fuses of various ratings are
provided in the cabin and engine
compartment fuse/relay boxes.
Replace blown fuses promptly.
Always replace a blown fuse w ith
one of the same amperage.
Theamperageisshownonthe
head of the fuse:
Colour Rating (amps)
Grey 2
Brown 7.5
Red 10
Blue 15
Yellow 20
Natural 25
Green 30
Replace the fuse cover securely
after use.
{
WARNING
When replacing a fuse, be sure to
use a fuse of the
specified amperage.
Never install a wire or similar
device as it could damage
electrical components and cause
afire.
Any improper alterations to the
electrical system may cause a fire
hazard and engine damage. To
maintain your own safety and that
of the vehicle, have any work
involving the electrical system or
the replacement of high current
fuses or relays carried out by a
Holden Dealer.
Fuses and relays
Rear fuse panel
The fuse panel is located on the left
side of the boot, above the battery.
