Introduction
Installation Instructions
Surface Mount Installation
It is recommended that controllers be installed 5 feet (1.5 m) above the
floor, at approximate eye level.

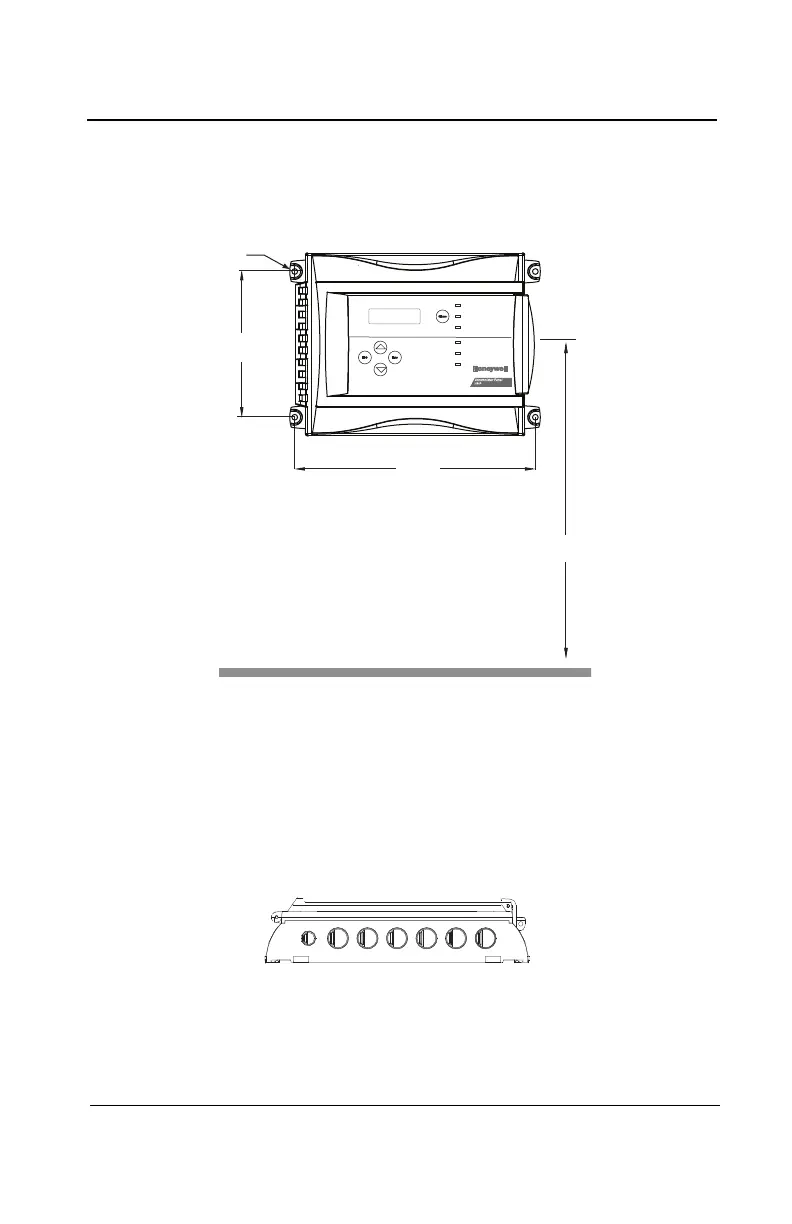

Mark the holes, as shown:
• Height markers 6 13/32” apart
• Width markers 10 9/16” apart
• Pre-drill 1/4” mounting holes as needed
• Securely mount the 301C using the appropriate screws
Wiring for the unit must be passed through the knock-outs provided at
the bottom of the unit.
17.4 cm
6
13/32”
26.8 cm
10
9/16”
1.5m
5’
Ø .5cm
¼”
