System Programming
Tests Menu
Tests Menu
The Tests menu allows you to perform a variety of tests on
components, on the network communications. It also allows you to
operate the system in four different mode which, in turn, provide
different functionalities.

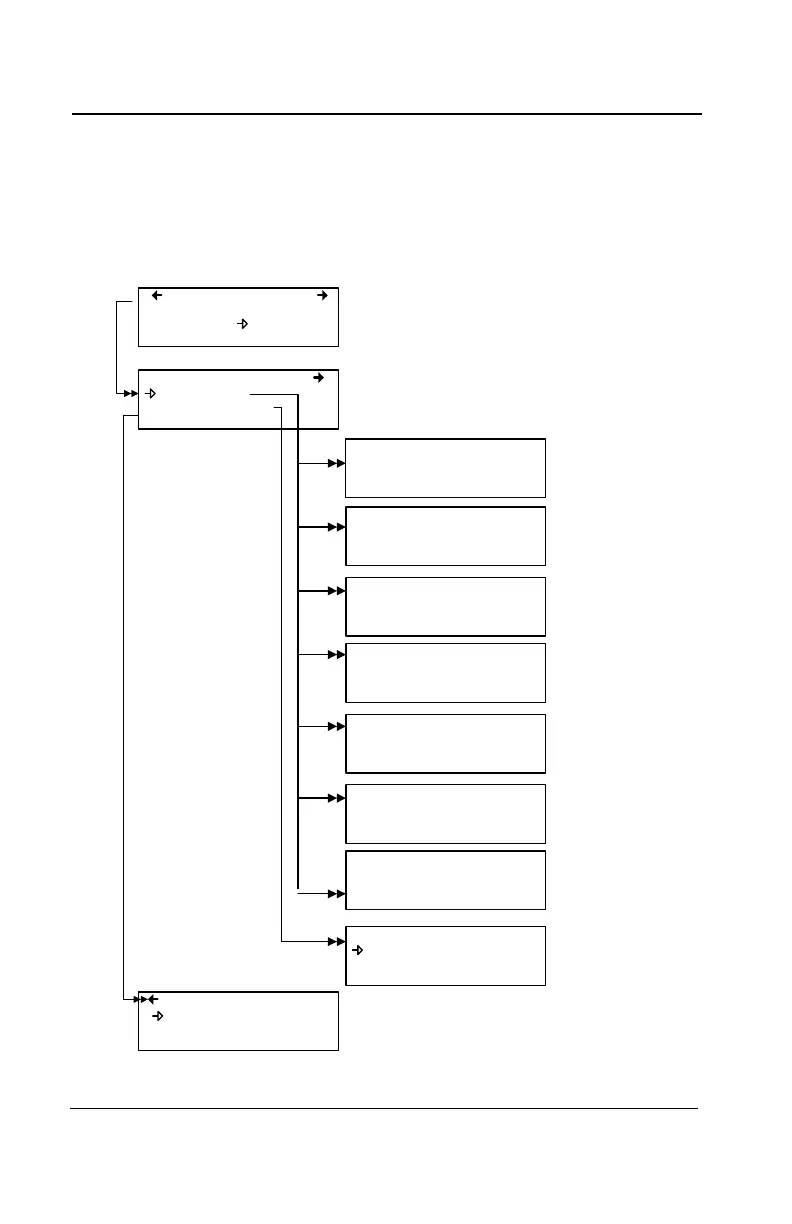

MENU
5. Copy 7. Network
6. Config 8. Tests
8. Tests
Oprt Mode: normal
8. Tests
Test sequence
Start Sim Sequence
Maximum load
Simulation Sequence
Start with Tx001
Confirm
Test sequence
Relays activated
Any key to continue
Esc to quit
Test sequence
BUZZER activated
Any key to continue
Esc to quit
2
Test sequence
LEDs activated
Any key to continue
Esc to quit
Test sequence
Press ‘left’
Esc to quit
Test sequence
Display test
Any key to continue
Esc to quit
Test sequence
Test Network comm.
9600 bauds
Channel 1 PASSED
Test sequence
Test done
Any key to continue
7
6
5
4
3
1
