System Programming
Config Menu
Config Menu
The Config menu contains several main configuration screens and is
used to program the controller display mode, adjust the date and time,
select the display language, change the controller access password,
modify the Slave Port configuration, set the Relay Configuration, and
select the AP Broadcast mode.

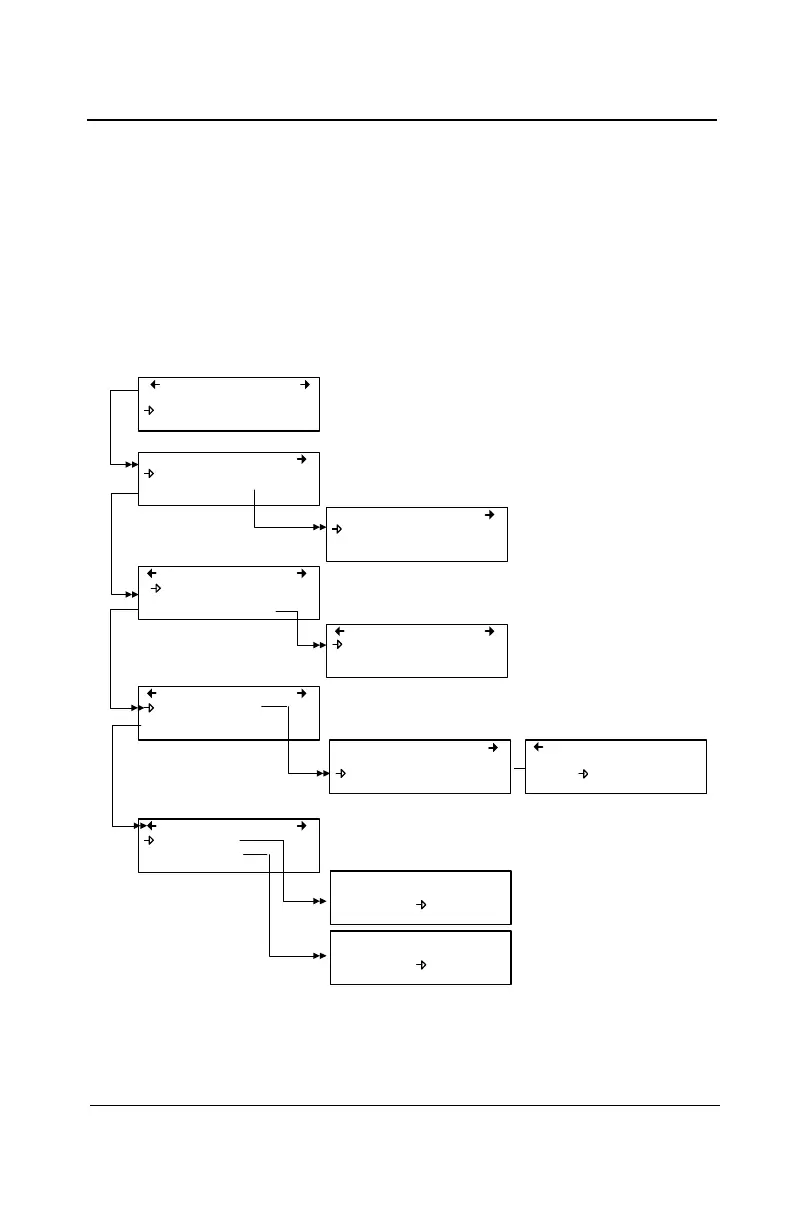

Each main screen offers further programming options, as shown.
MENU
5. Copy 7. Network
6. Config 8. Tests
6. Config
Set User Password
- 2967 -
Slave Port Cnfg
6. Config
Relay Configuration
AP Brdcst: auto
Honeywell
6. Config
Day definition
Week definition
6. Config
Manual scroll mode
Set Date and Time
Menu français
Slave Port Cnfg
Address: 001
38400 bauds
Mdbs RTU 8D 2S NP
Relay Configuration
-Failsafe-
All relays
Inactive
Relay Configuration
-Silence-
1234
dis ena dis dis
Day definition
-Daytime-
sta: 08:00
end: 17:00
Week definition
-Working Days-
sta: Monday
end: Friday
Date and Time
2005-11-21 11:47:36
(ISO 8601 standard)

Honeywell 301C Specifications

General

Controller Type	Temperature Controller
Control Mode	ON/OFF, PID
Input Voltage	100-240 VAC
Input	Thermocouple, RTD
Output	Relay, SSR
Operating Temperature	0 to 50°C
Contact Rating	5A @ 250 VAC (Relay)
