4. OPERATION
Force Digital Calibration Menu
Caution: Ensure that when forcing a signal on the digital output that the effects on the
network and controller are understood, e.g. alarm activation, etc.
Thisoptionallowsthedigitaloutput(ifadigitalcommunicationsboardisttedtotheTransmitterUnit,
e.g. LonWorks) to be forced to output an alarm signal, from Alarm 1 or Alarm 2 or no alarm.
Timesoutafterapproximately5minutes.The4-20mAoutputandrelaysareunaffected
.

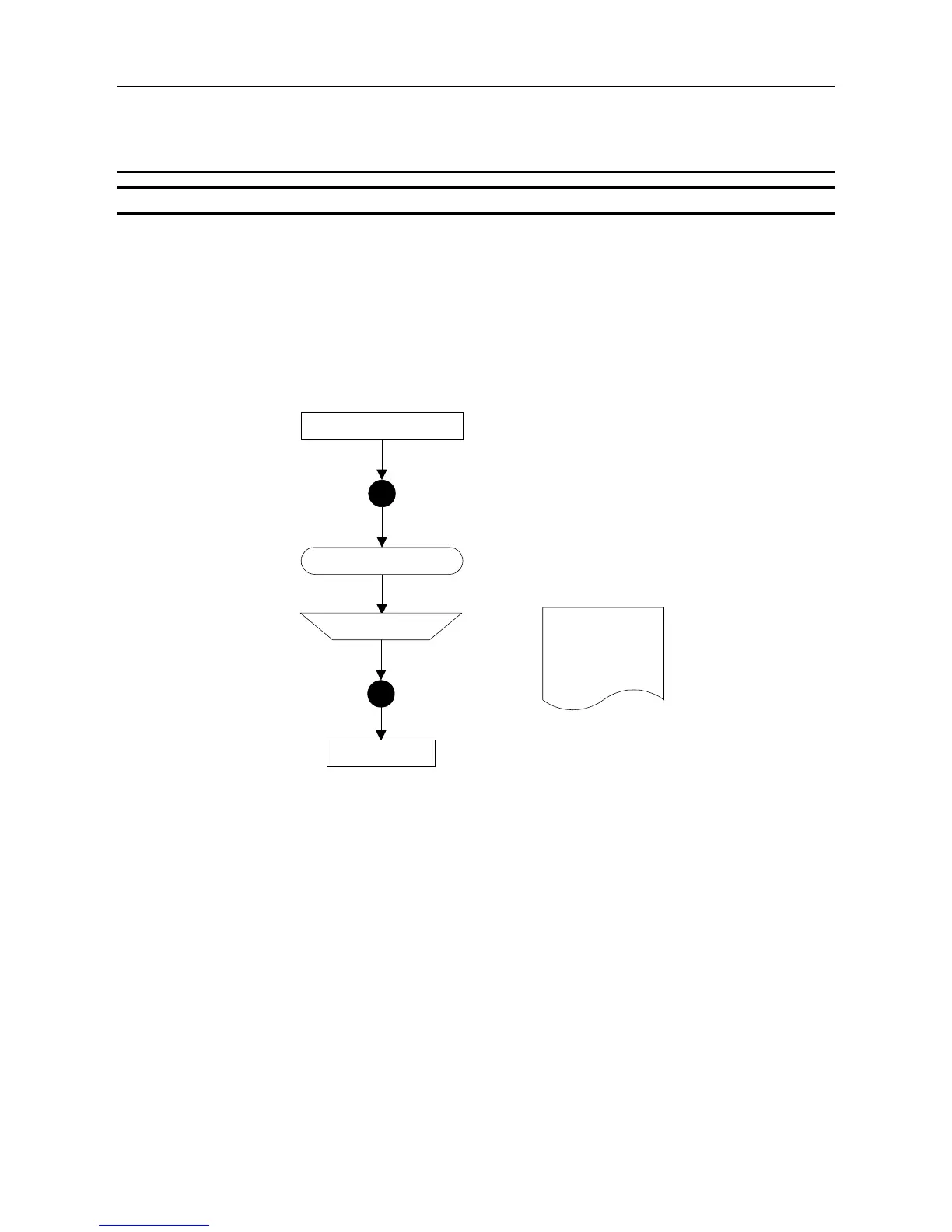

Force Digital
ok
Force Digital screen
Select output
from 0,1or2
esc
Use up/down
buttons
0=No output
1=Alarm1output
2=Alarm2output
