4. OPERATION
CongureRelays Conguration Menu
ThisoptionallowsthethreeTransmitterUnitrelaystobeconguredforthecurrentinstallation.
Latched relays are cleared by the Display Menu => Reset Alarms, Faults option or by switching
the power off and on.
Configure Relays
ok
Select relay to
configure

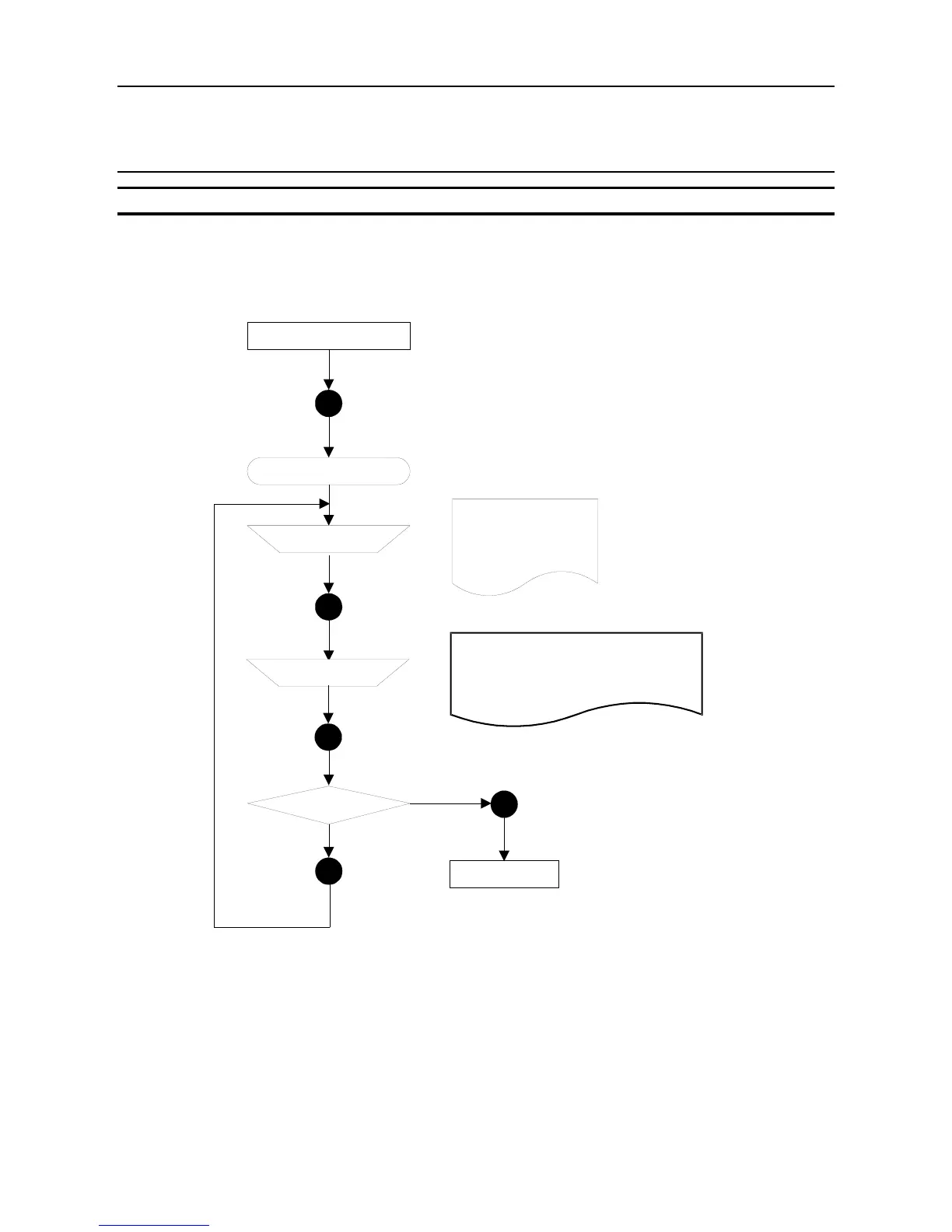

Configure Relays screen
Select another relay?
Yes
No
ok
ok
Configuration
Menu
esc
Use up/down buttons to
choose setting from:
Fault Relay
Alarm1 Relay
Alarm2 Relay
Select relay
state
ok
Use up/down buttons to choose state from:
ND (Normally De-energised) Non-Latching
NE (Normally Energised) Non-Latching
ND Latching
NE Latching
Note: Alarm recovery is below alarm setpoint (25%).
As well as the ability to set the default state of the relay operation (energised or de-energised and
latching or non-latching) by this method it is possible to set whether the relay contacts are normally
open or normally closed by means of the links on the Transmitter Unit's Interconnect PCB (also see
Chapter 3).
