4. OPERATION
CongureDigital Conguration Menu
This menu item displays a screen that reports information about digital communications if a digital
communicationsboardisttedtotheTransmitterUnit,e.g.LonWorks.Anexampleofatypical
screenisasfollows:
Configure Digital
NetworkType: LonWorks
ConnectionType: FTT- 10
Node Id: 00A176094800
Node Address
:N
/A
Baud Rate: 78.0kbit/s
Node S/WVer
:1
.0
Assert Service Pin
Network Type Displays the type of digital network installed.
Connection Type Shows the type of transceiver used for digital output.
Node Id  DisplaystheidentierfortheTransmitterUnit.
Node Address Shows the address of the unit on the digital network, if applicable.
BaudRate Displays the current network communications rate.
Node S/W Ver Shows the version of the board software.
The list also provides a choice, Assert Service Pin, to bind the Transmitter Unit to the host digital
network (see 4.8).
Caution: If a Transmitter Unit is replaced, including the LonWorks PCB, the replacement
unit must be rebound to the LonWorks network. If the LonWorks PCB is removed
fromafaultyTransmitterUnitandttedintoanewTransmitterUnit,thenthe
previous binding remains operational.
Configure Digital
ok

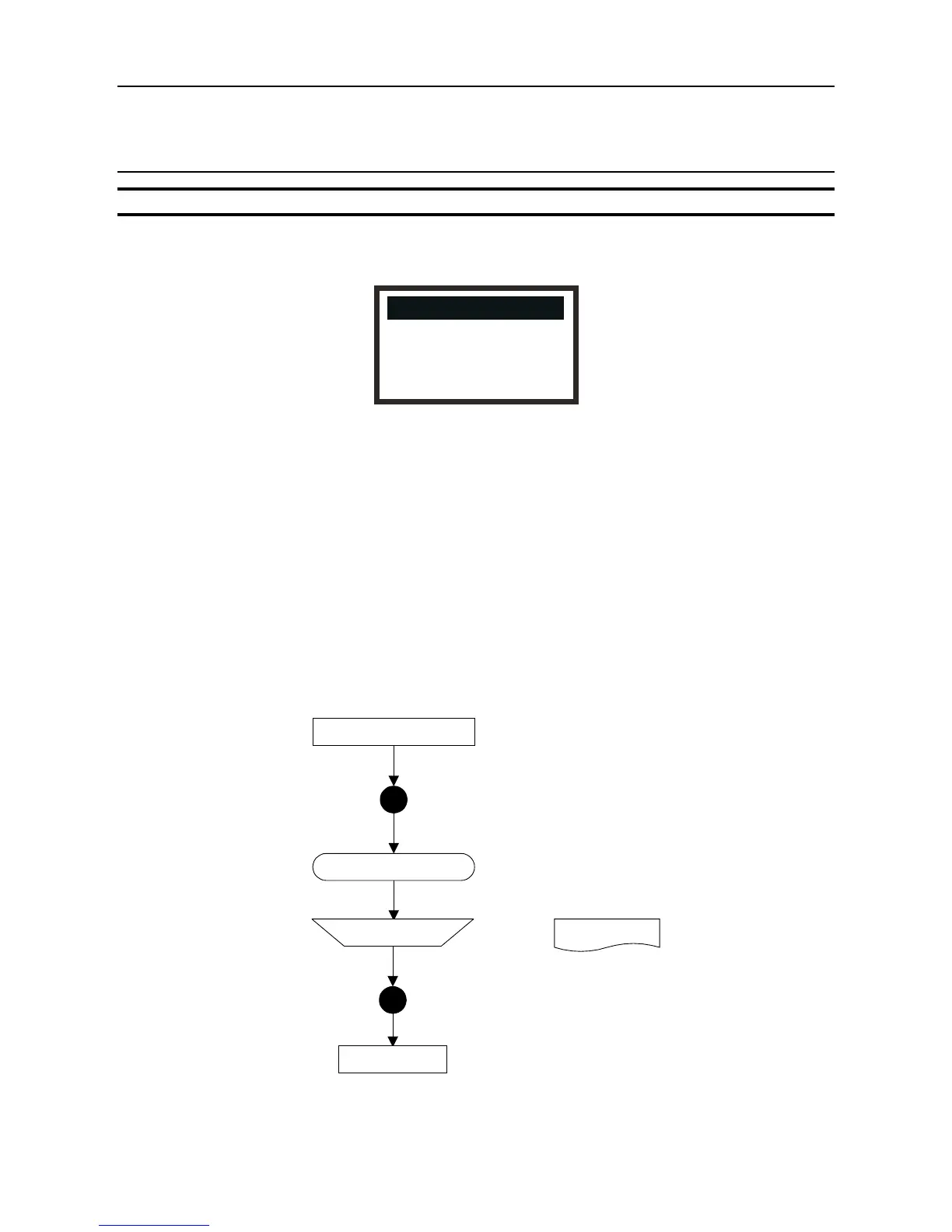

Configure Digital screen
Assert Service
Pin
ok
Use up/down
buttons
Configuration
Menu
