ALPHABETIC REFERENCE EXCEL CARE CONTROL ICONS
74-5577–33 (US) 170
EN2B-0184 GE51 R0518 (Europe)
Note: The heating pump must be controlled externally.
Minimum room temperature protection There are two ways of controlling the minimum room temperature during un-
occupied periods
• Minimum room temperature protection
• Minimum room temperature control
To enable minimum room temperature protection, set P24 to a higher value than the
value of the room temperature setpoint during un-occupied periods.
To enable minimum room control P24 must be set to a value lower than the room
temperature setpoint during the un-occupied periods.
Minimum Room Temperature Protection The minimum room temperature protection ensures a minimum room temperature
condition during un-occupied periods. If the room temperature drops below the value
of the P24 setting, the mixed water temperature setpoint is set to the value of the
Tprot. The minimum room temperature protection function ends if the room
temperature rises above the value of P25 + P24. This leads to the reasonable heat

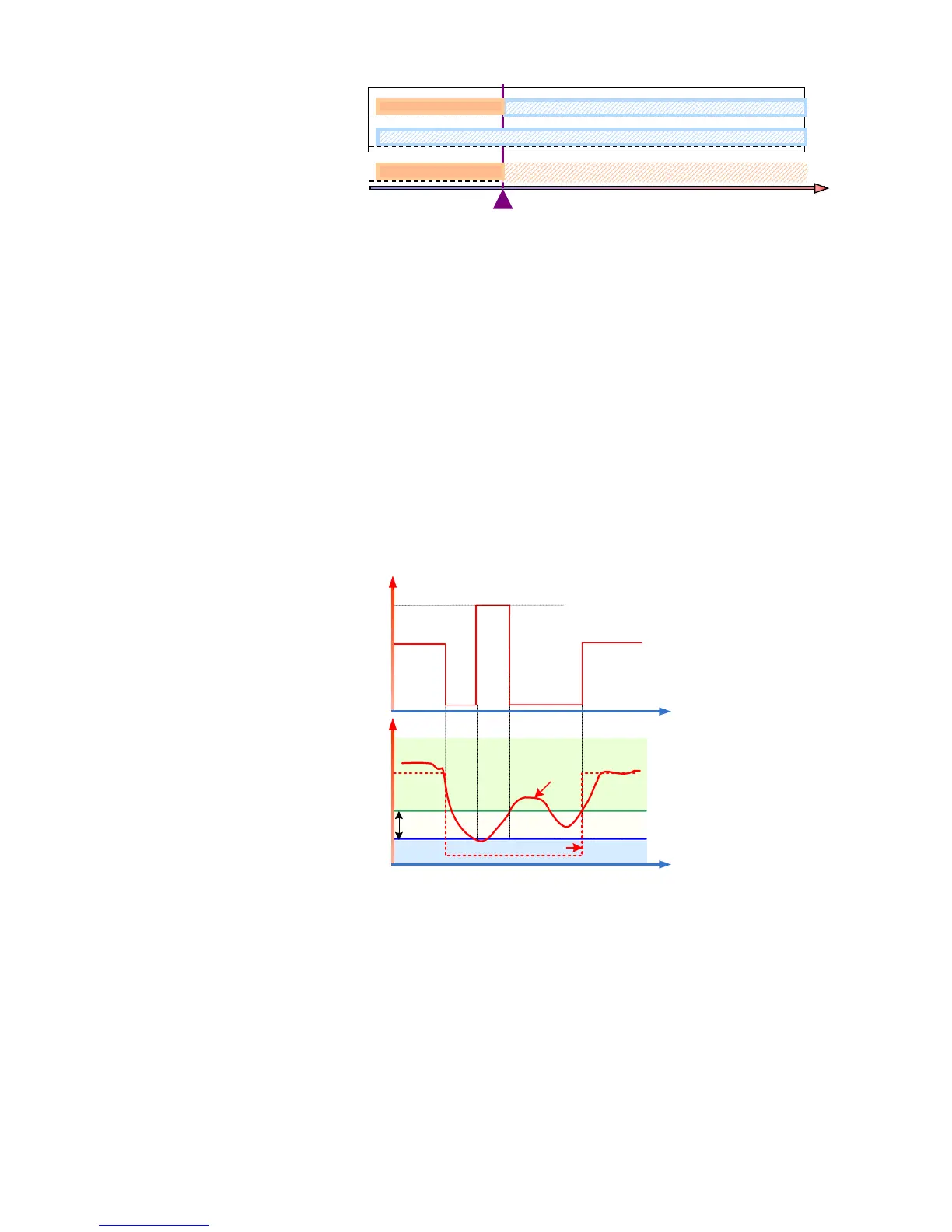

up of the room. The next figure shows the minimum room temperature protection
function.
Tprot = HC (P24 + P25 + 2K, TOat, P15, P16)
Minimum Room Temperature Control The minimum room temperature control becomes active, when during un-occupied
periods the room temperature drops below the value of the room temperature
setpoint set in the time schedule. In this case, the heating circuit is re-started and
calculates the mixed water temperature setpoint depending on the heating curve
characteristics, outside air temperature and the actual room temperature setpoint.
This function is an alternative for minimum room temperature protection whereby
always maximum capacity is used. To enable minimum room temperature control,
set P24 lower than the value of the room temperature setpoint during un-occupied
periods.
