The primary safety function of the FS24XPlus™ is affected by many of the controls, for example
setting the flame sensitivity. Since this detector is suitable for use in systems with a safety integrity

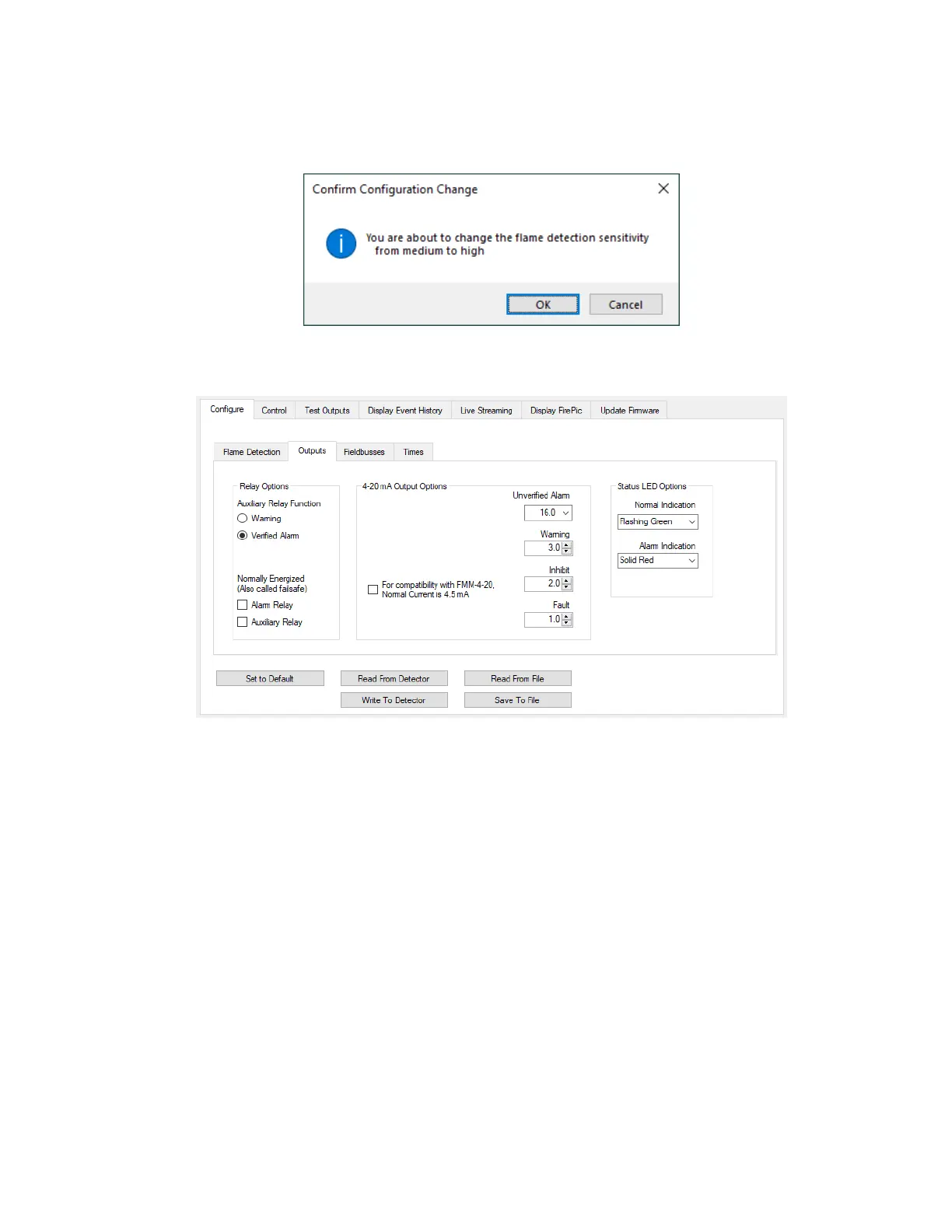

level of 2, it is essential that any change be clearly communicated. For this reason, a dialog such as
shown in the image below will frequently appear requesting a confirmation of a change. Press [OK]
to accept the change or [Cancel] to reject it.
The Configure/Outputs tab has the controls shown below. Several rules restrict the setting of mA
levels.
Honeywell®FS24XPlus™ | User Manual
48
