76 Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide
60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Side of Lid)
This option requires DC/DC external power supply Honeywell Part no. 9000313PWR-
SPLY.
If the DC/DC power supply does not have screws in the side of the lid, see 60-144 VDC
Vehicles (50-150 VDC Power Supply, Screws on Top of Lid).
These instructions are for use with VM1D Standard Dock and VM3D
Enhanced Dock only.

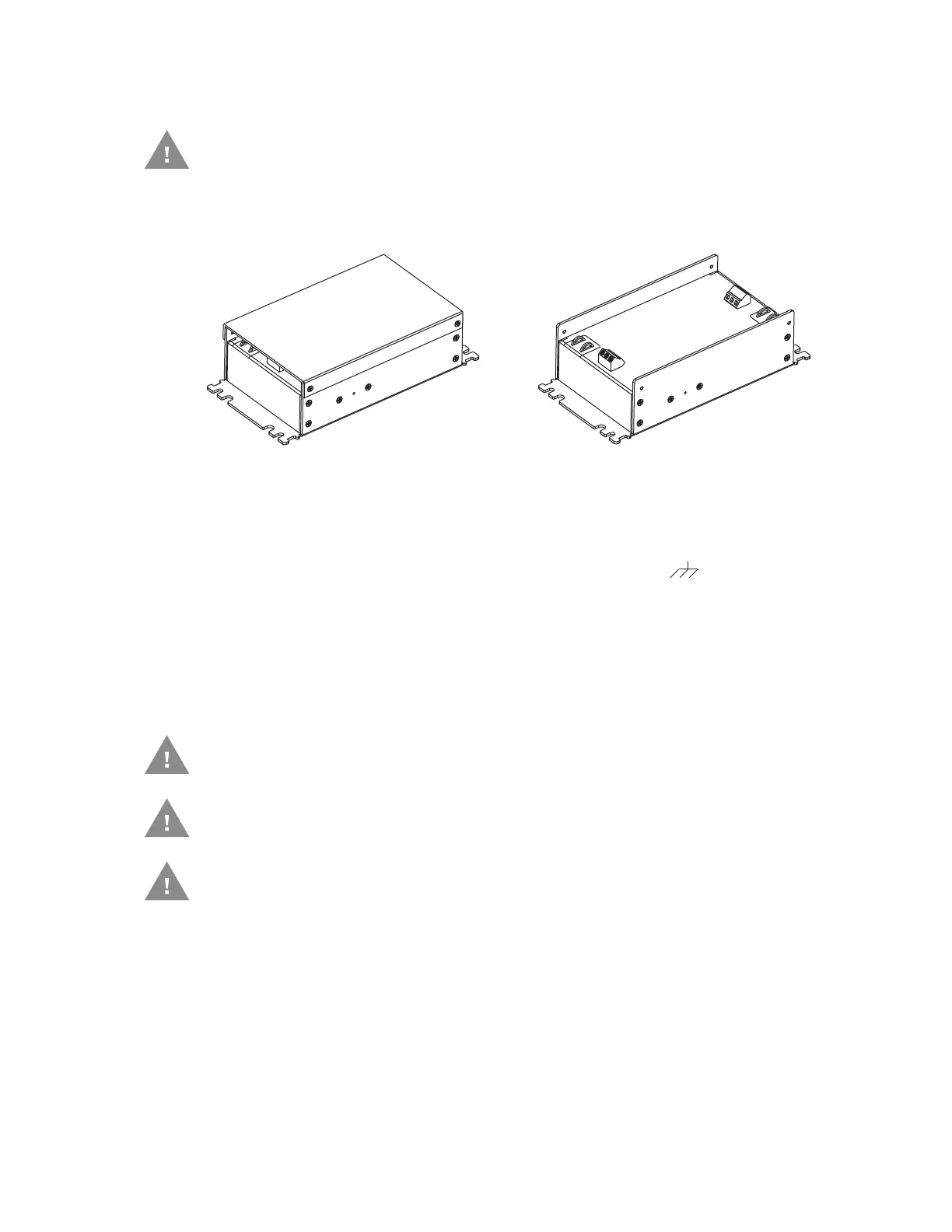

Shown With Lid Attached
• Lid is secured with screws on the
side of lid.
Shown With Lid Removed
• Input and output connector blocks
under lid.
• One positive (Vin+), negative (Vin-)
and ground ( ) connection in
input block.
• One positive (Vo+) and negative
(Vo-) connection in output block.
Caution: For installation by trained service personnel only.
Caution: Usage in areas where moisture can affect the power supply
connections should be avoided. The power supply should be
mounted in a dry location within the vehicle or placed in a
suitable protective enclosure.
Caution: Use caution when routing the power cable. See Power Cable
Cautions.
To Next Page
