Thor VM1 with Microsoft Windows Embedded Standard 2009 User Guide 81
60-144 VDC Vehicles (50-150 VDC Power Supply, Screws on Top of Lid)

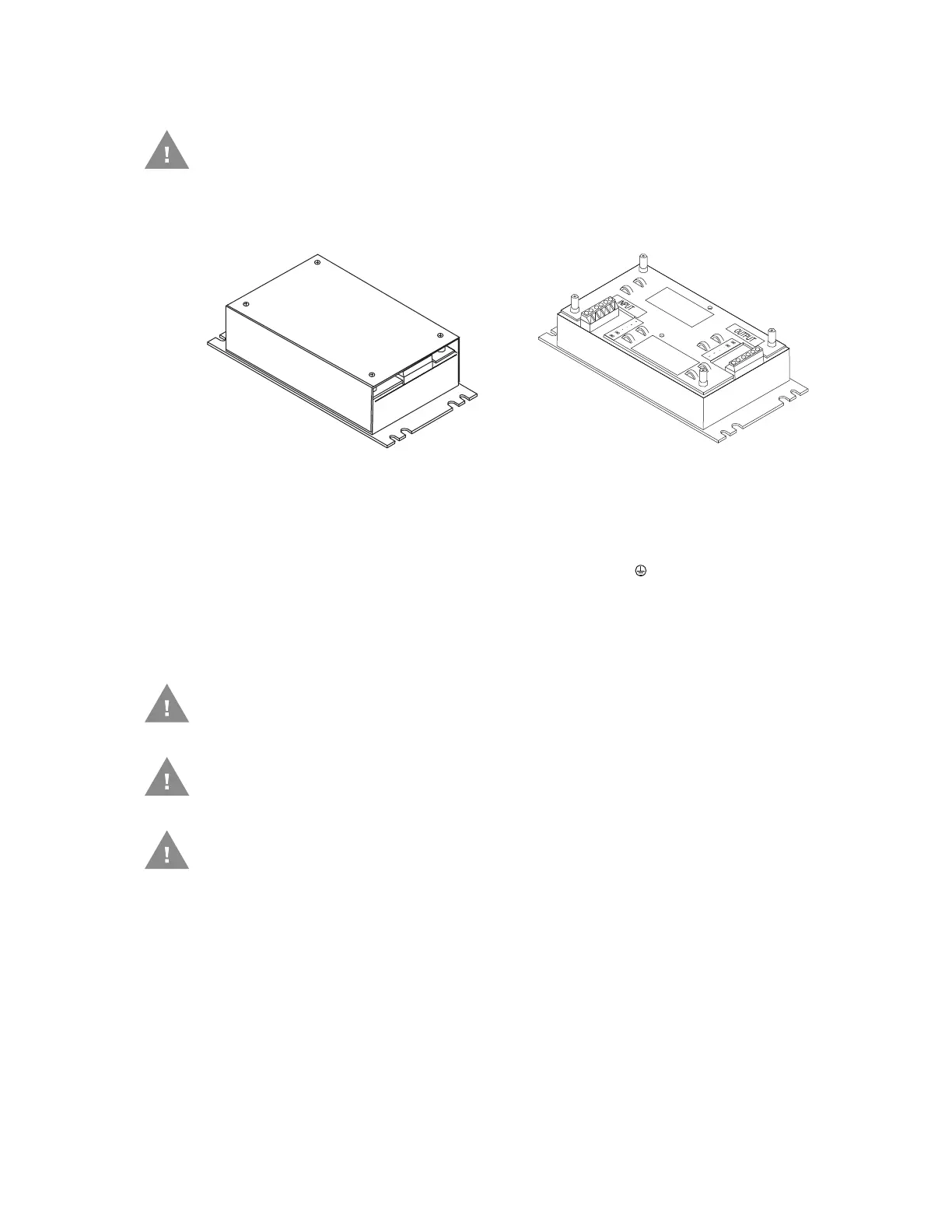

This option requires DC/DC power supply Honeywell Part no. VX89303PWRSPLY
shown below.
If the DC/DC power supply does not have screws in the top of the lid, see 60-144 VDC
Vehicles (50-150 VDC Power Supply, Screws on Side of Lid).
These instructions are for use with VM1D Standard Dock and VM3D
Enhanced Dock only.
Shown With Lid Attached
• Lid is secured with screws on the
top of lid.
Shown With Lid Removed
• Input and output connector blocks
under lid.
• Two positive (+), negative (-) and
ground ( ) connections per
terminal block
Caution: For installation by trained service personnel only.
Caution: The VX89303PWRSPLY power supply is sealed per IPXX. Usage
in areas where moisture can affect the power supply
connections should be avoided. The power supply should be
mounted in a dry location within the vehicle or placed in a
suitable protective enclosure.
Caution: Use caution when routing the power cable. See Power Cable
Cautions.
