a
c
d
g
e
b
f

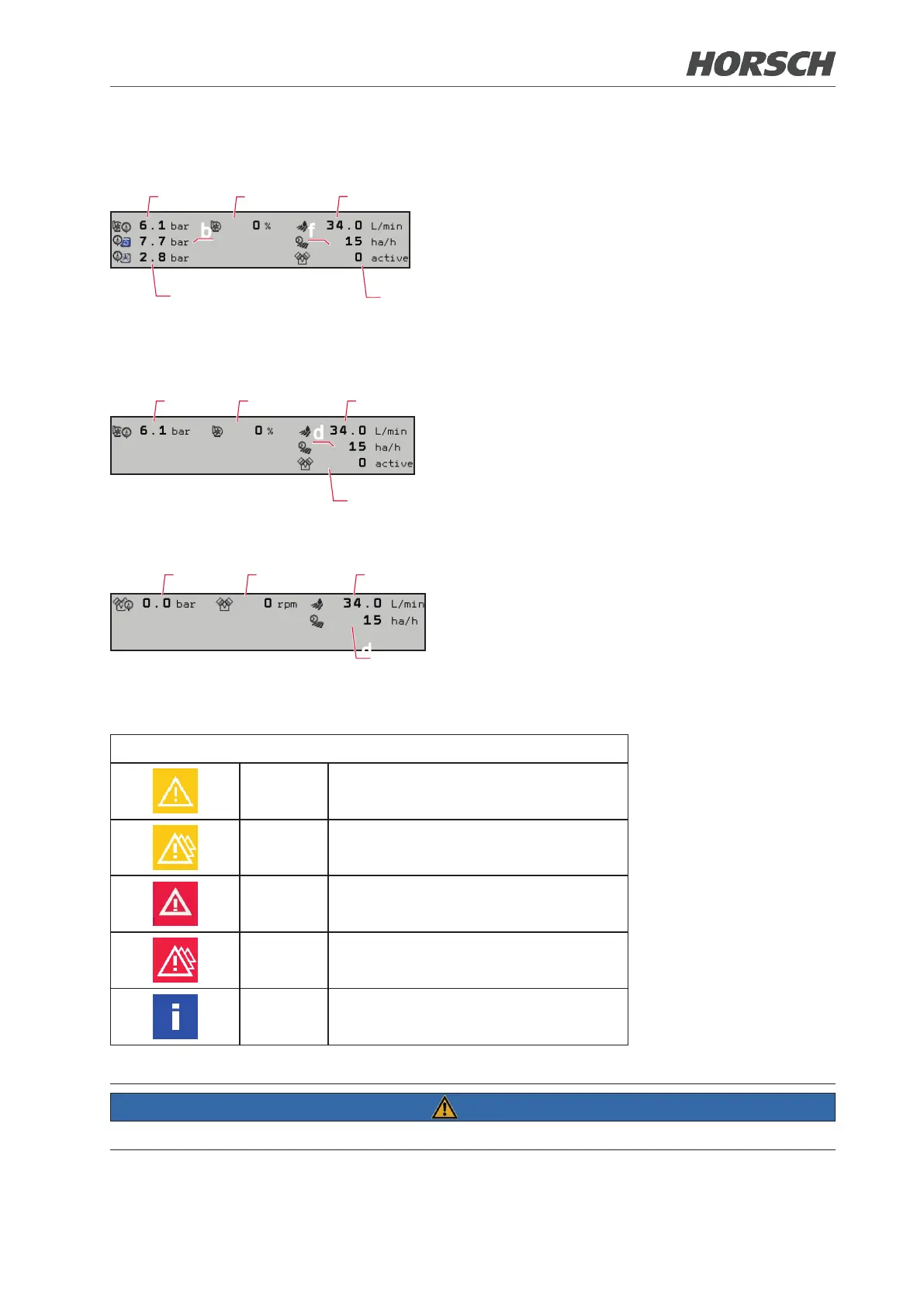

Status info (display on the terminal only for machines
of variant CCS Pro)
(a) Pump pressure in bar
(b) Agitator pressure in bar
(c) Cleaning pressure in bar
(d) Spraying pump output in %
(e) Application quantity in litres per minute
(f) Area output in hectare per hour
(g) Piston diaphragm pump active (1) / not active (0)
a
e
b c
d
Status info (display on the terminal only for machines
of variant CCS)
(a) Pump pressure in bar
(b) Spraying pump output in %
(c) Application quantity in litres per minute
(d) Area output in hectare per hour
(e) Piston diaphragm pump active (1) / not active (0)
a
d
b c
Status info (display on the terminal only for machines
of variant ECO)
(a) Pump pressure in bar
(b) Pump speed in rpm
(c) Application quantity in litres per minute
(d) Area output in hectare per hour
Warning messages
Yellow Warning
Yellow
Several warning messages are cur-
rently pending
Red Alarm
Red
Several alarms and warning mes-
sages are currently pending
Blue Information
NOTE
Access to the message memory is automatically provided when selecting a warning message!
