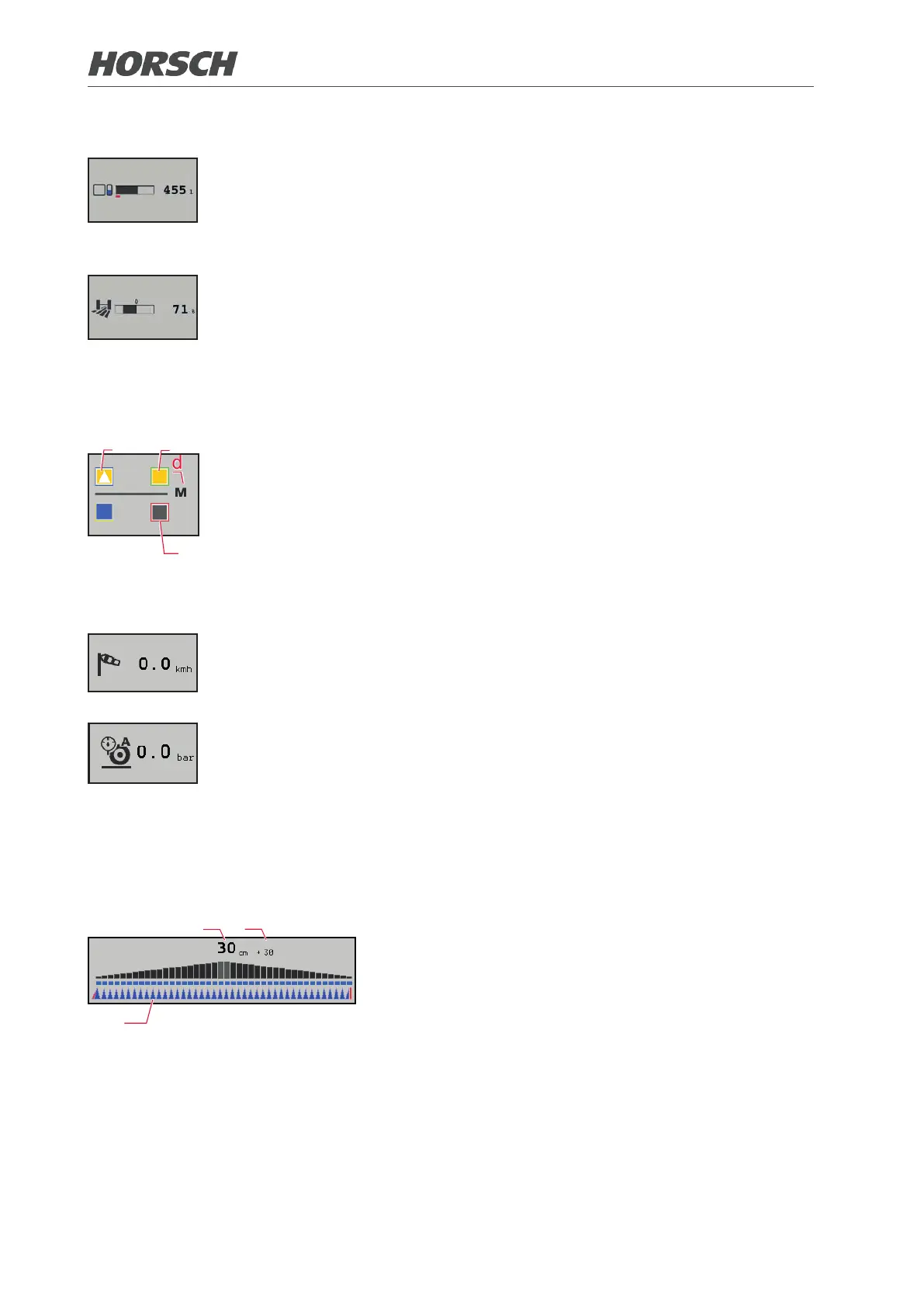

Fresh water tank (display on the terminal only for machines of variant CCS Pro)
Display of the current 󰘰lling level
The red bar identi󰘰es the remaining minimum quantity for outside cleaning.
¾ Touch the display to access the submenu.
¾ Submenu, see 3.2.15
Steering (optional)
Display of steering angle / steering status
¾ Touch the display to access the submenu for steering settings.
¾ Submenu, see 3.2.16
d
b
c
a
Nozzle conguration
(a) Nozzle place empty; no nozzle con󰘰gured or place not occupied
(b) Nozzle place occupied and con󰘰gured (coloured rectangle)
(c) Nozzles currently used (spraying cone 󰘰lled)
(d) "A" : Automatic selection of the nozzle pro󰘰le (optional)
"M" : Manual selection of the individual nozzles
¾ The coloured border of the respective nozzle indicates the connection
colour of the pneumatic hose on the nozzle carrier.
¾ Touch the display to access the submenu for nozzle con󰘰guration.
¾ Submenu, see 3.2.17
Wind meter (optional)
The wind velocity is displayed here if the machine is equipped with a wind meter.
Tyre pressure control system (optional)
The current tyre pressure is displayed here.
Touch the display to access the submenu.
¾ Submenu, see 3.2.18
a b
c
Condition of sections and automatic folding boom
functions
(a) Height above crop
(b) Add-on/o󰘯set to lifting height at headland / nozzles
closed
¾ Touch the display to access the submenu for folding
boom control.
¾ Submenu, see 3.2.1
(c) Open/closed sections
¾ Touch the display to access the submenu for sec-
tions.
¾ Submenu, see 3.2.19
