m
Pressure sensors
n
CanIO
o
(m) Scroll up
(n) Pressure sensors
(o) Module for nozzle control
¾ The submenus of the teach mode all follow the same layout (see example of folding boom).
¾ The ‘Module for nozzle control’ submenu is described separately below.
WARNING
Danger from crushing, being pulled or caught, knocking of persons when lifting or lowering as
well as unfolding/folding the folding boom during the teach processes.
Make sure that persons keep a sucient safety distance to moving parts of the machine. Order
persons to leave the danger zone around the machine.

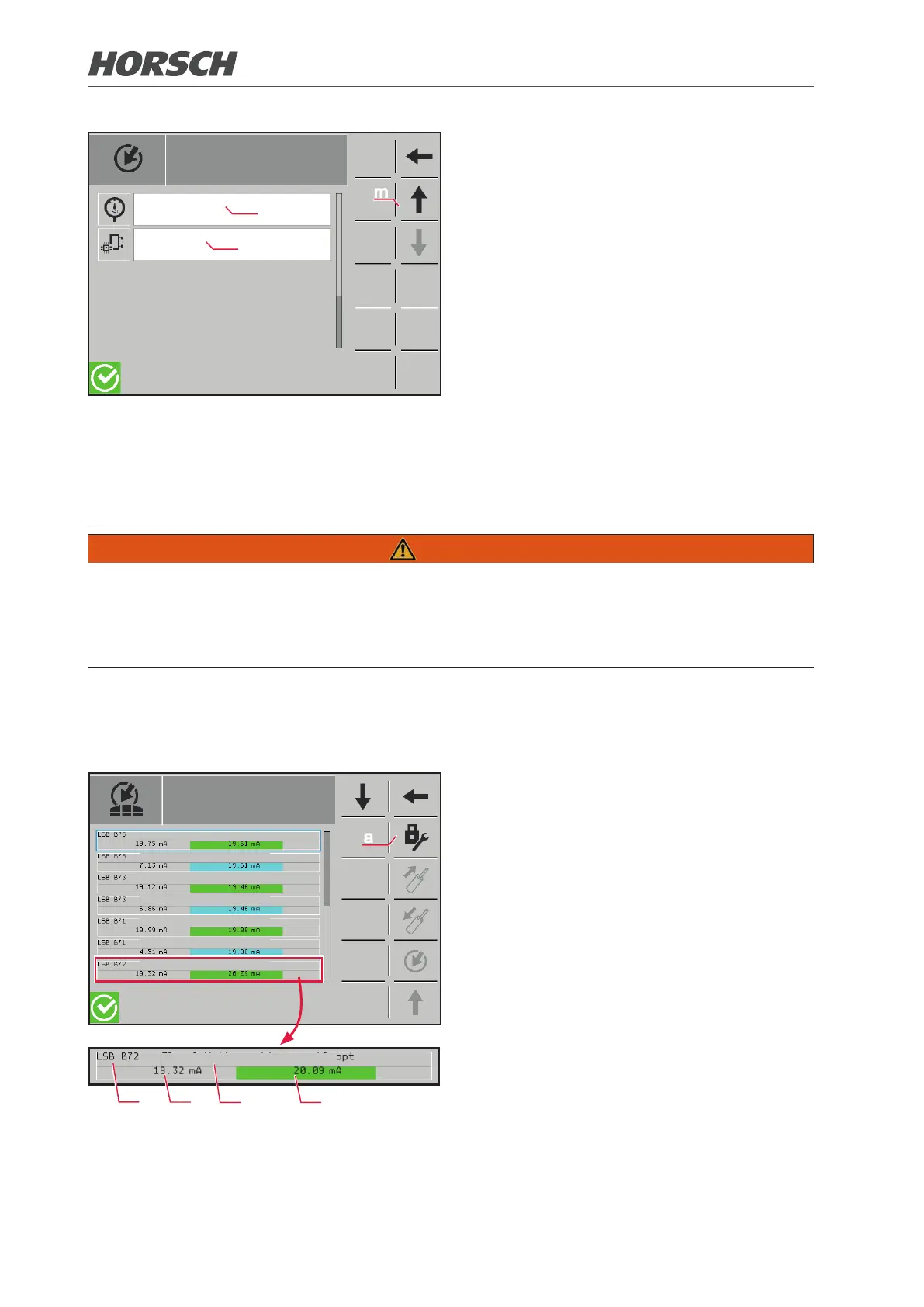

Folding boom in teach mode submenu
a
b
d ec
Wing inside left folded
Wing inside left unfolded
Wing inside right unfolded
Wing inside right folded
Wing centre left folded
Wing centre left unfolded
Wing centre right folded
Wing centre right folded
A list with all sensors is displayed.
(a) Access to protected area
(b) Component designation in circuit diagram
(c) Currently “taught” or saved value
(d) Explanatory text
(e) Current value
58 59
