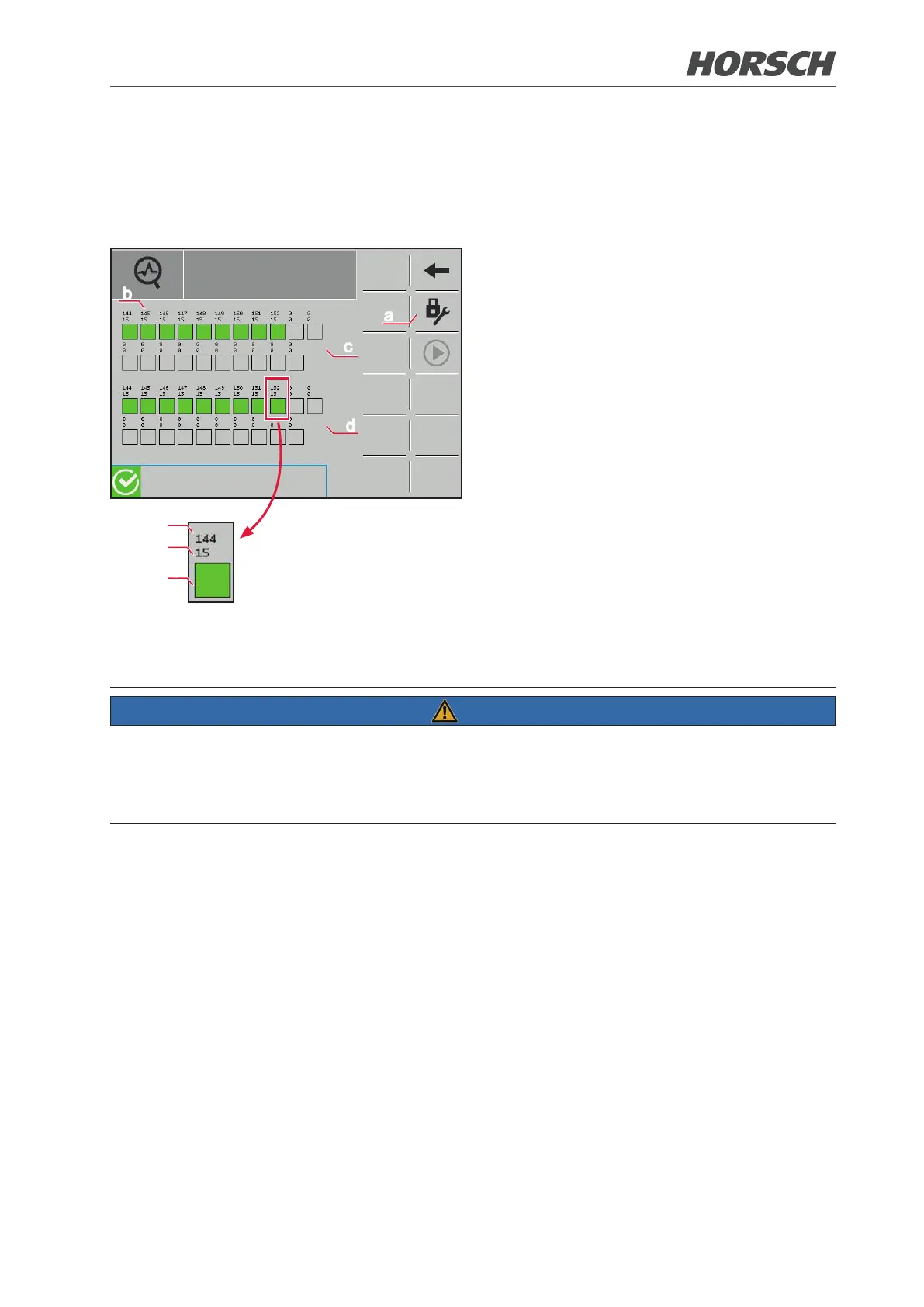

Submenu Module for nozzle control in Teach mode
a
b
c
d
e
f
g
All module of the folding boom are displayed
on the page. 21 modules are always displayed
per folding boom page. The number of as-
signed modules may dier depending on the
equipment variant.
(a) Access to protected area
(b) Each rectangle presents a module
(c) The two top lines present the modules of
the left folding boom wing.
(d) The two bottom lines present the modules
of the right folding boom wing.
(e) Source address of the modules
(f) Channel assignment bit-coded
(g) Green rectangle: Communication correct
Red rectangle: Communication inter-
rupted
¾ The module must be addressed again
manually when a module is replaced. Oth-
erwise, the function may not be available
or a malfunction may occur.
NOTE
¾ Teach procedures must be carried out by HORSCH service sta!
¾ Incorrect teaching of components may cause damage to the machine!
¾ Access and description of the teach module in these operating instructions are only provided
as examples.
