HP 5920 Series Configuration Guide

136

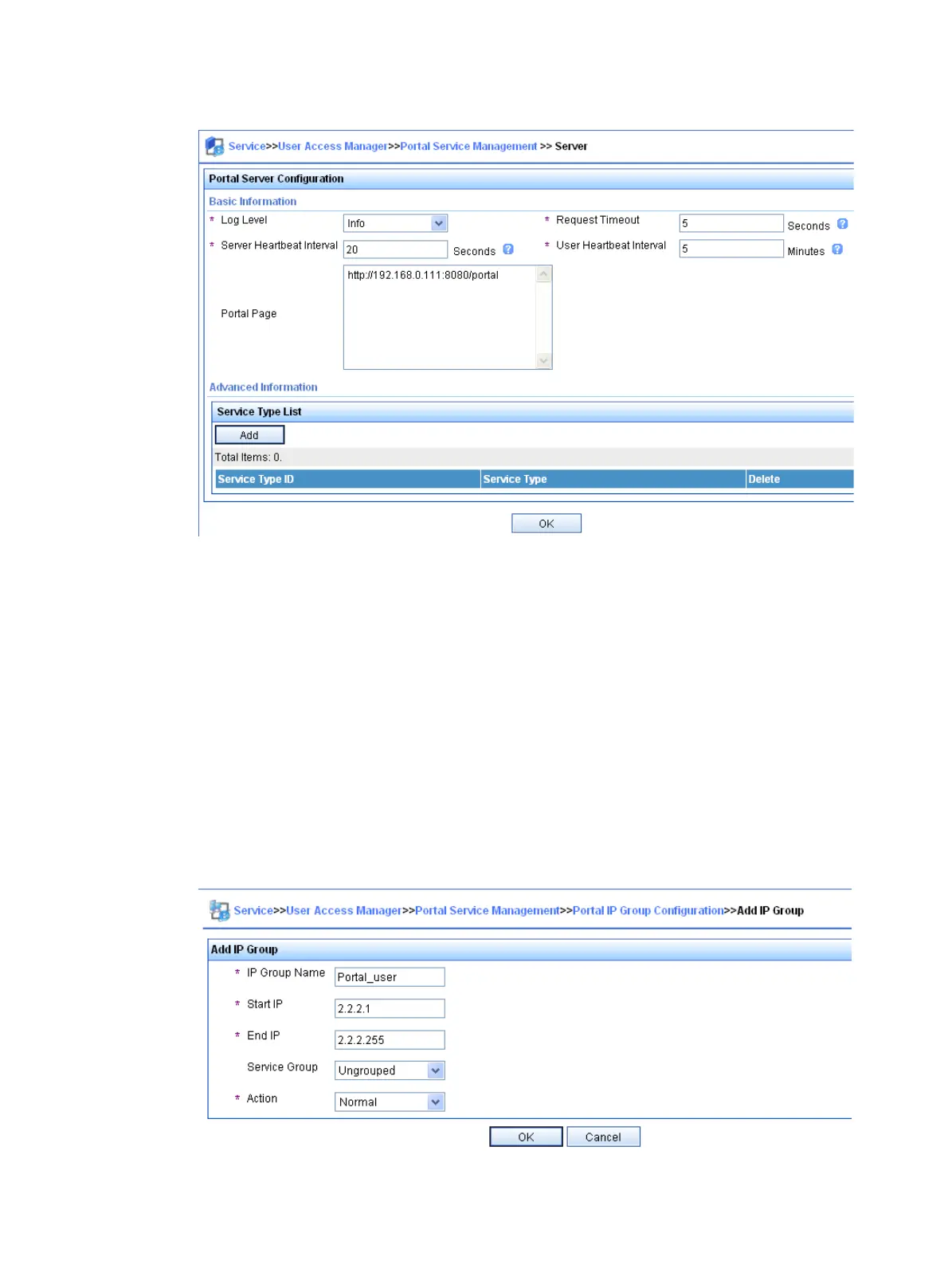

Figure 59 Portal authentication server configuration
2. Configure the IP address group:
a. Select User Access Manager > Portal Service Management > IP Group from the navigation tree
to enter the portal IP address group configuration page.
b. Click Add to enter the page shown in Figure 60.
c. Enter the IP group name.
d. Enter the start IP address and end IP add
ress of the IP
group.
Make sure the host IP address is in the IP group.
e. Select a service group.
This example uses the default group Ungrouped.
f. Select Normal from the Action list.
g. Click OK.
Figure 60 Adding an IP address group
