137
3. Add a portal device:
a. Select User Access Manager > Portal Service Management > Device from the navigation tree to
enter the portal device configuration page.
b. Click Add to enter the page shown in Figure 61.
c. Enter the device name NAS.
d.
Enter the IP address of the switch's interface connected to the host.
e. Enter the key, which must be the same as that configured on the switch.
f. Set whether to enable IP address reallocation.
This example uses direct portal authentication, and therefore select No from the Reallocate IP
list.
g. Select whether to support sever heartbeat and user heartbeat functions.
In this example, select Yes for both Support Server Heartbeat and Support User Heartbeat.
h. Click OK.

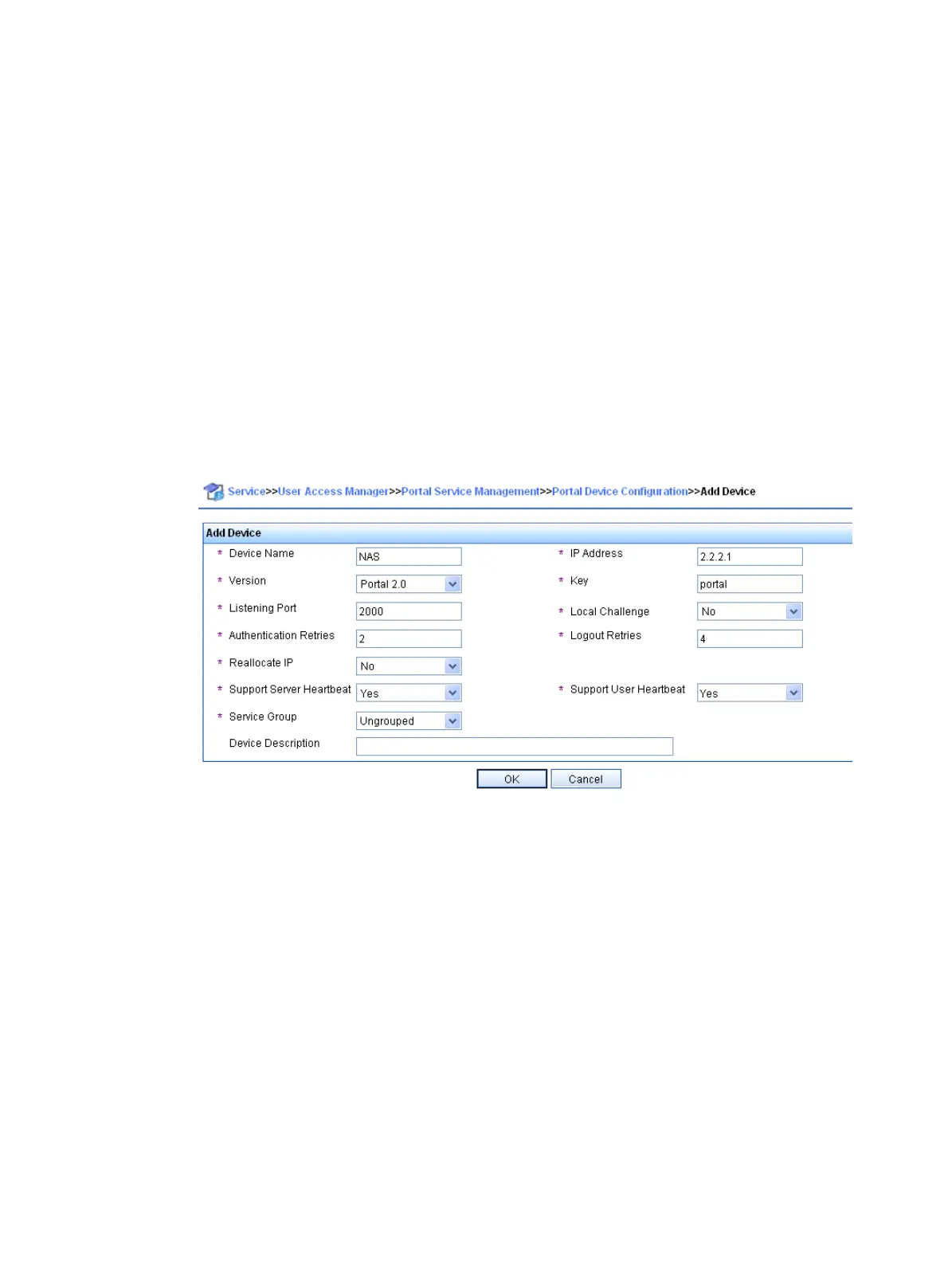

Figure 61 Adding a portal device
4. Associate the portal device with the IP address group:
a. As shown in Figure 62, click the icon in the
Port Group Information Management column of
device NAS to enter the port group configuration page.
b. Click Add to enter the page shown in Figure 63.
c. Enter the port group name.
d.
Select the configured IP address group.
The IP address used by the user to access the network must be within this IP address group.
e. Use the default settings for other parameters.
f. Click OK.
