3.
Remove the server from the rack (on page 28).
4. Remove the access panel (on page 29).
5. Remove the air baffle (on page 30).
6. Do one of the following:
o If you intend to install the SSD module in an M.2 SSD enablement board located in the PCI riser
cage, make sure the board surface is accessible. Remove the PCI riser cage as needed
("Remove the PCI riser cage" on page 34).
o If you intend to install the SSD module in an M.2 SSD enablement board located in an onboard
expansion slot, disconnect the existing M.2 SSD SATA cable from the enablement board, and
then remove the enablement board.

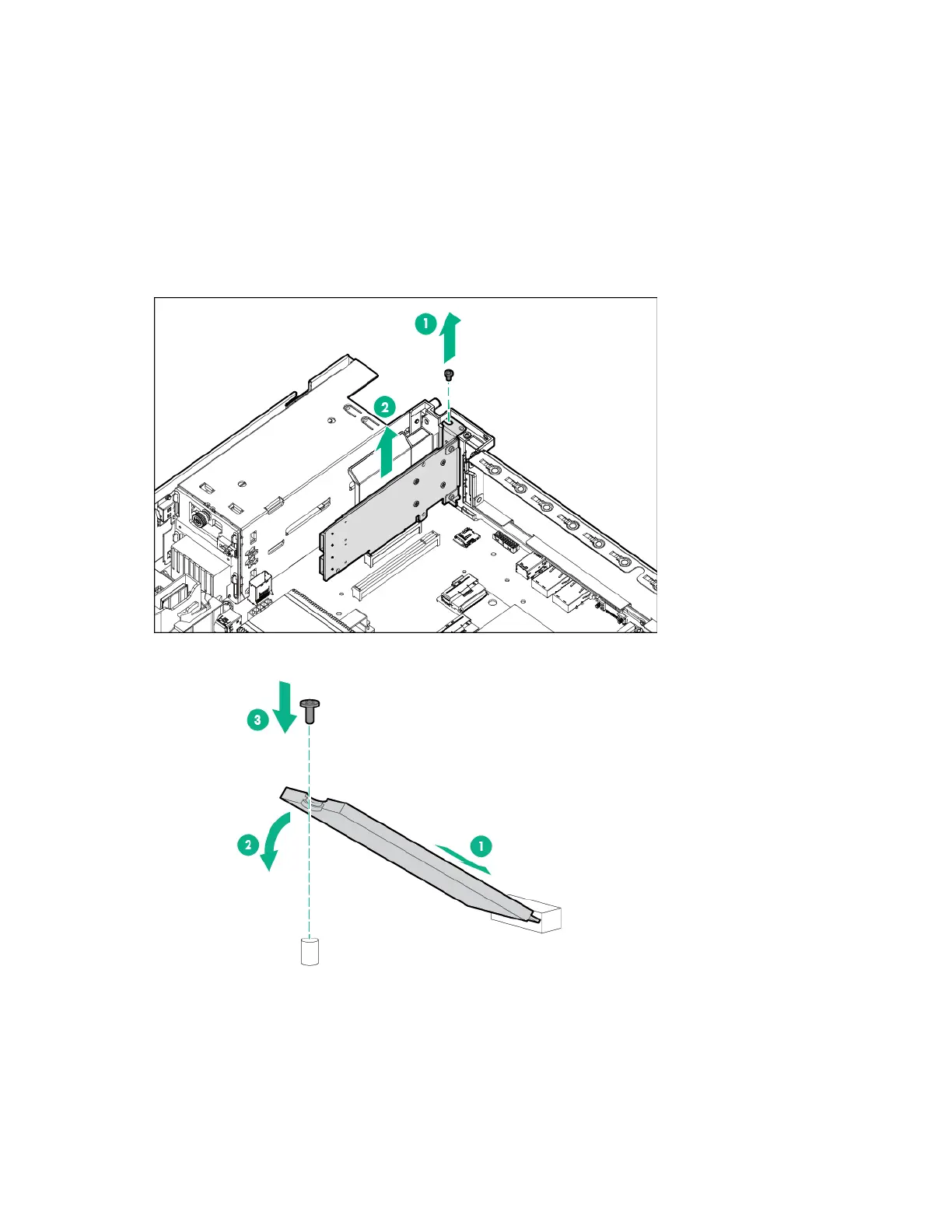

7. Install the SSD module on the M.2 SSD enablement board.
8. Do one of the following:
o If removed, install the PCI riser cage (on page 36).
o If removed, install the M.2 SSD enablement board ("Installing the M.2 SSD enablement board"
on page 96).
9. Install the air baffle (on page 32).
10. Install the access panel (on page 30).
