HP Apollo 4200 Gen9 User Manual

Cabling 150
Item Description
1
Rear SFF backplane sideband cable
2
Rear SFF drive cage power cable
3
Mini-SAS Y-cable
M.2 SSD cabling
For clarity of the SATA cable connections, part of the cable management holder image is removed from
this section's illustrations.

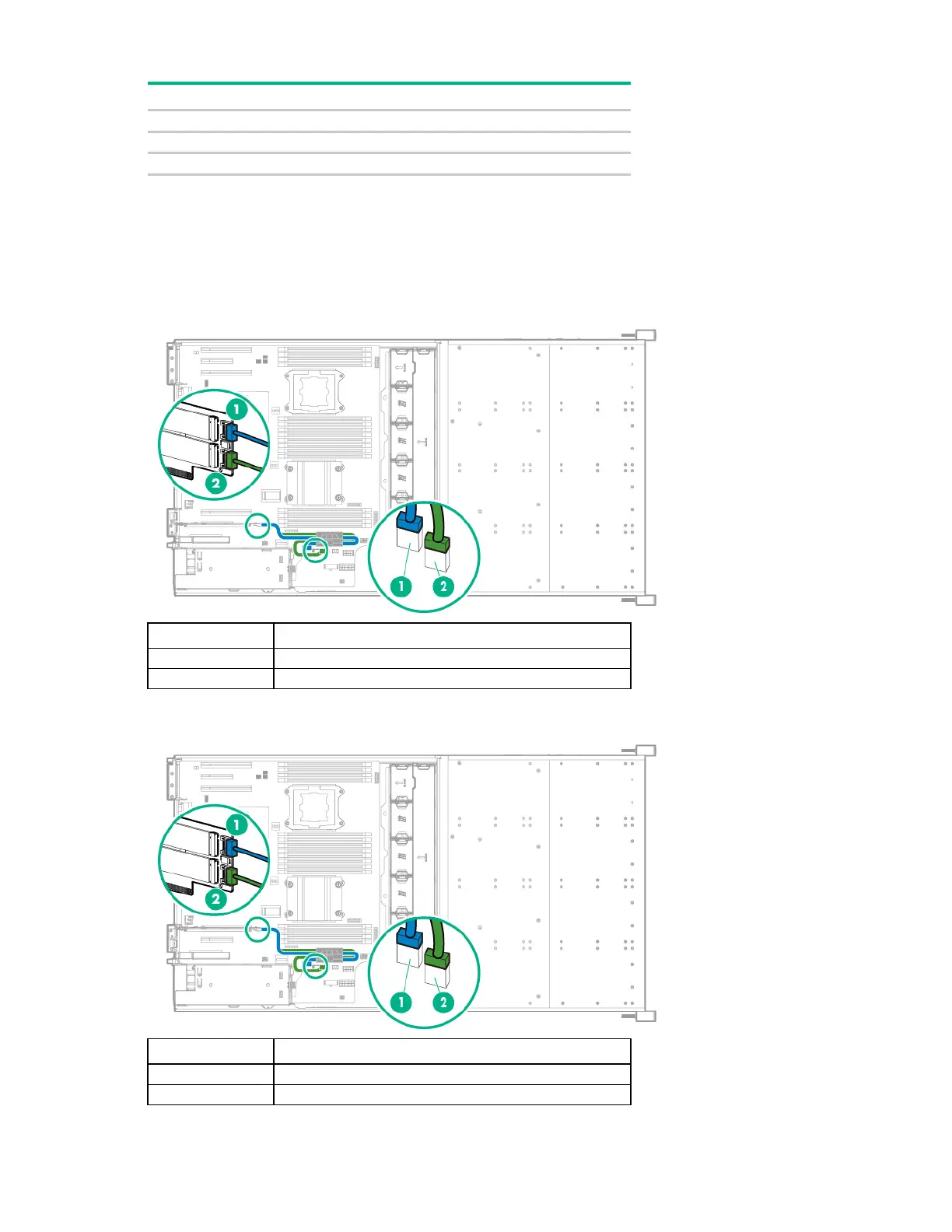

• M.2 SSD cabling from the onboard PCIe3 x8 expansion slot 1
Item Description
1
M.2 SSD 1 SATA cable
2
M.2 SSD 2 SATA cable
• M.2 SSD cabling from the onboard PCIe3 x16 expansion slot 2
Item
Description
1
M.2 SSD 1 SATA cable
2
M.2 SSD 2 SATA cable
