HP Apollo 4200 Gen9 - 48-Bay SFF Hot-Plug SASSATA Front Drive Cabling

Cabling 139

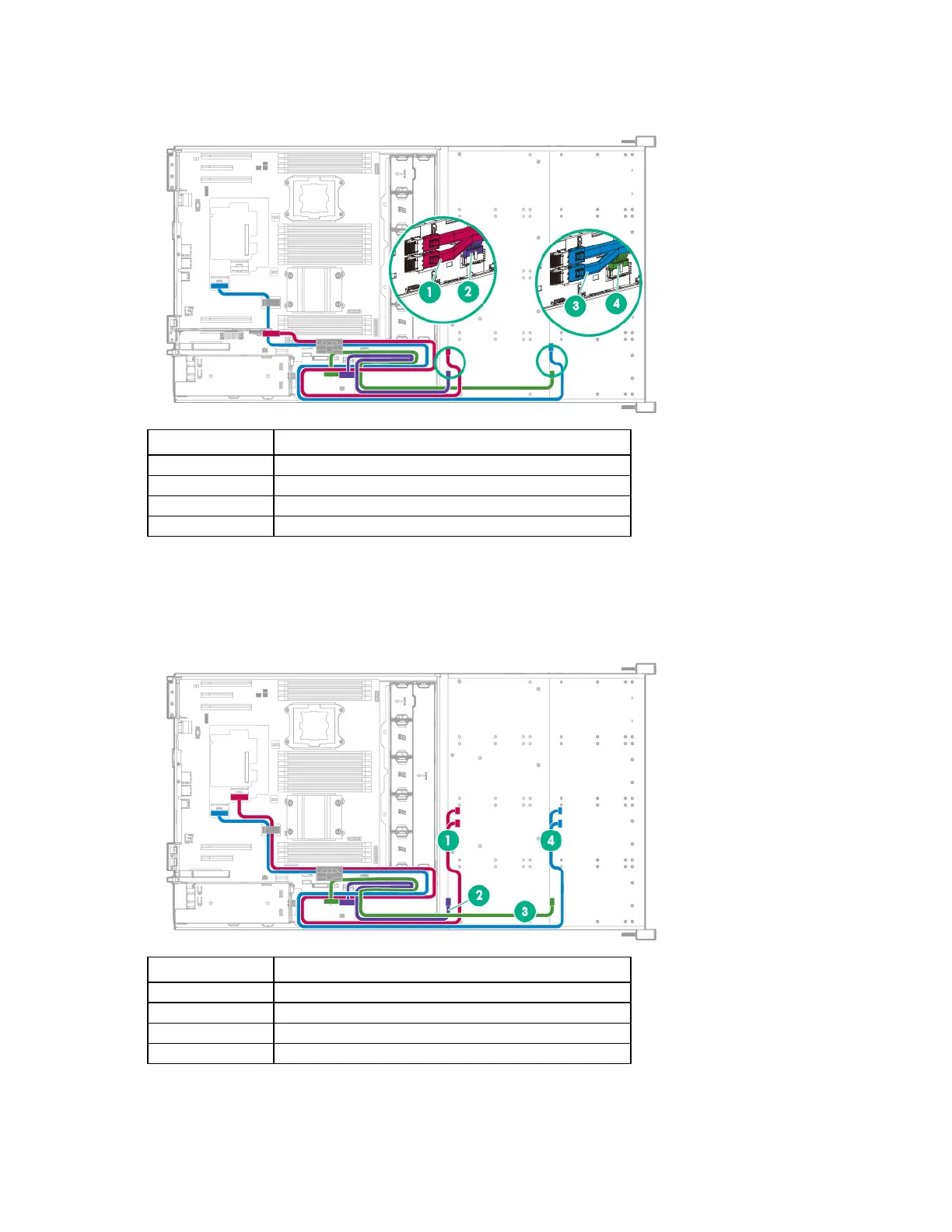

• Cabling for when the front LFF drive cage 1 is connected to the Flexible Smart Array P840ar
Controller and the front LFF drive cage 2 is connected to the Smart Array P440 Controller option
Item Description
1
LFF front drive cage 2 Mini-SAS Y-cable
2
LFF front drive cage 2 power cable
3
LFF front drive cage 1 Mini-SAS Y-cable
4
LFF front drive cage 1 power cable
48-bay SFF hot-plug SAS/SATA front drive cabling
• Cabling for when both the front SFF drive cages 1 and 2 are connected to the Flexible Smart Array
P840ar Controller
Item Description
1
Front SFF drive cage 2 Mini-SAS Y-cable
2
Front SFF drive cage 2 power cable
3
Front SFF drive cage 1 power cable
4
Front SFF drive cage 1 Mini-SAS Y-cable
