HP Apollo 4200 Gen9 User Manual

Cabling 143

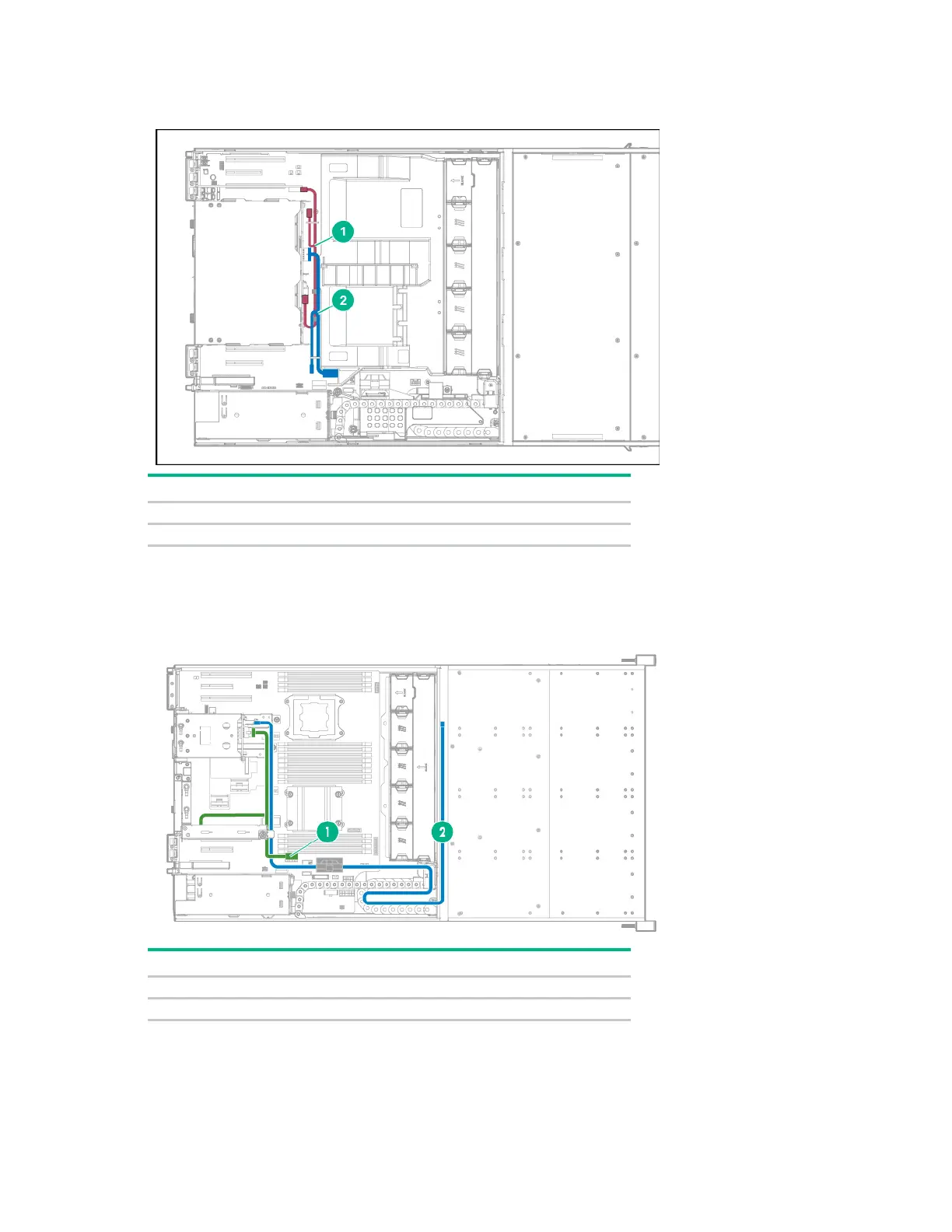

• Four-bay LFF hot-plug SAS/SATA rear drive cabling to the P440 Smart Array Controller installed in
the PCIe expansion slot 5, 6 or 7
Item Description
1
Rear LFF drive cage Mini-SAS Y-cable
2
Rear LFF drive cage power cable
Two-bay SFF hot-plug SAS/SATA rear drive cabling
• Two-bay SFF hot-plug SAS/SATA rear drive cabling to the front drive cage 2 backplane
Item Description
1
Rear SFF drive cage and two-slot PCI riser board power Y-cable
2
Rear SFF drive cage Mini-SAS cable
• Two-bay SFF hot-plug SATA rear drive cabling to the onboard SATA connectors 4 and 5
