HP Apollo 4200 Gen9 - Page 142

Cabling 142

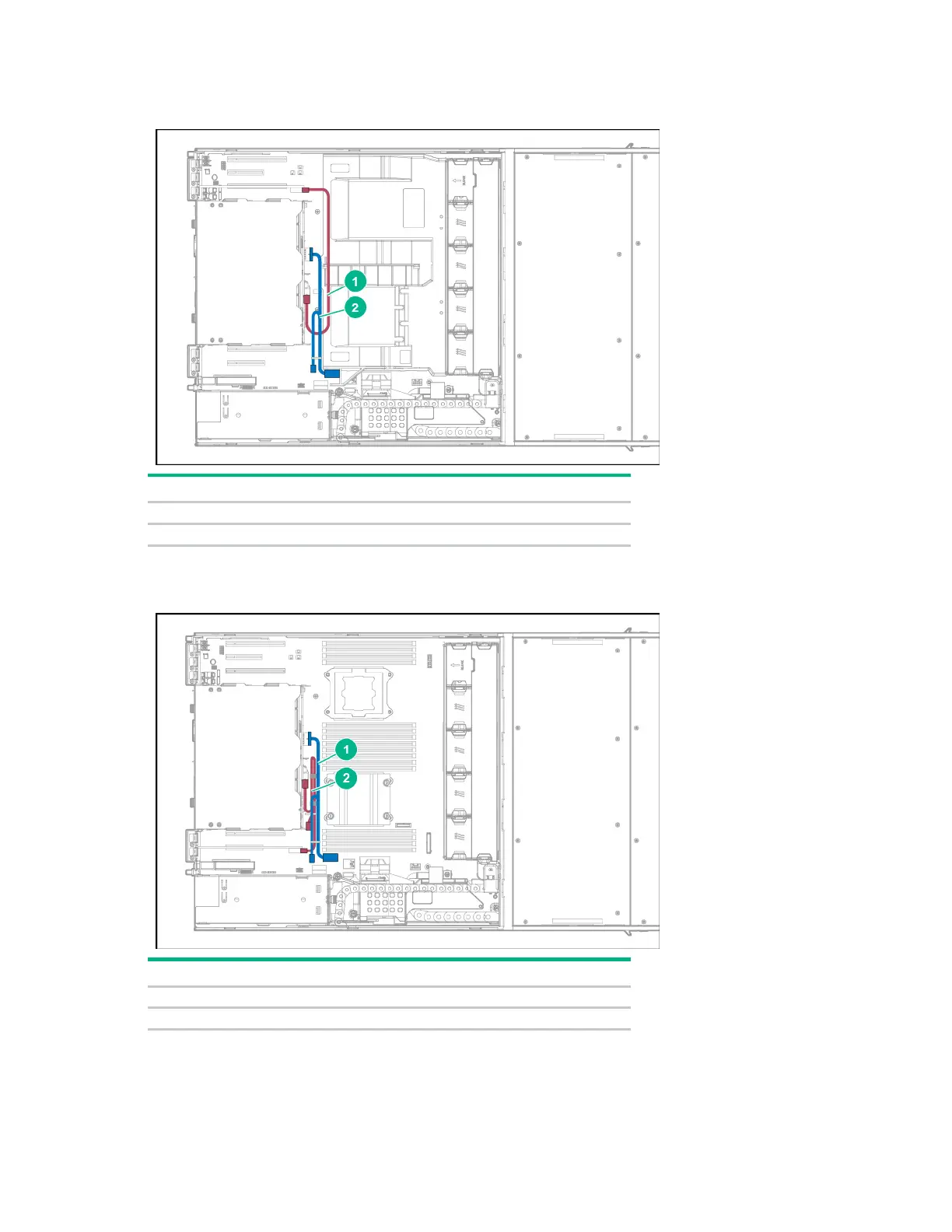

• Four-bay LFF hot-plug SAS/SATA rear drive cabling to the H240 HBA installed in the PCIe
expansion slot 5 or 6
Item Description
1
Rear LFF drive cage Mini-SAS x4 cable
2
Rear LFF drive cage power cable
• Four-bay LFF hot-plug SAS/SATA rear drive cabling to the P440 Smart Array Controller installed in
the PCIe expansion slot 1 or 2
Item Description
1
Rear LFF drive cage power cable
2
Rear LFF drive cage Mini-SAS Y-cable
