Hardware options installation 132
b.

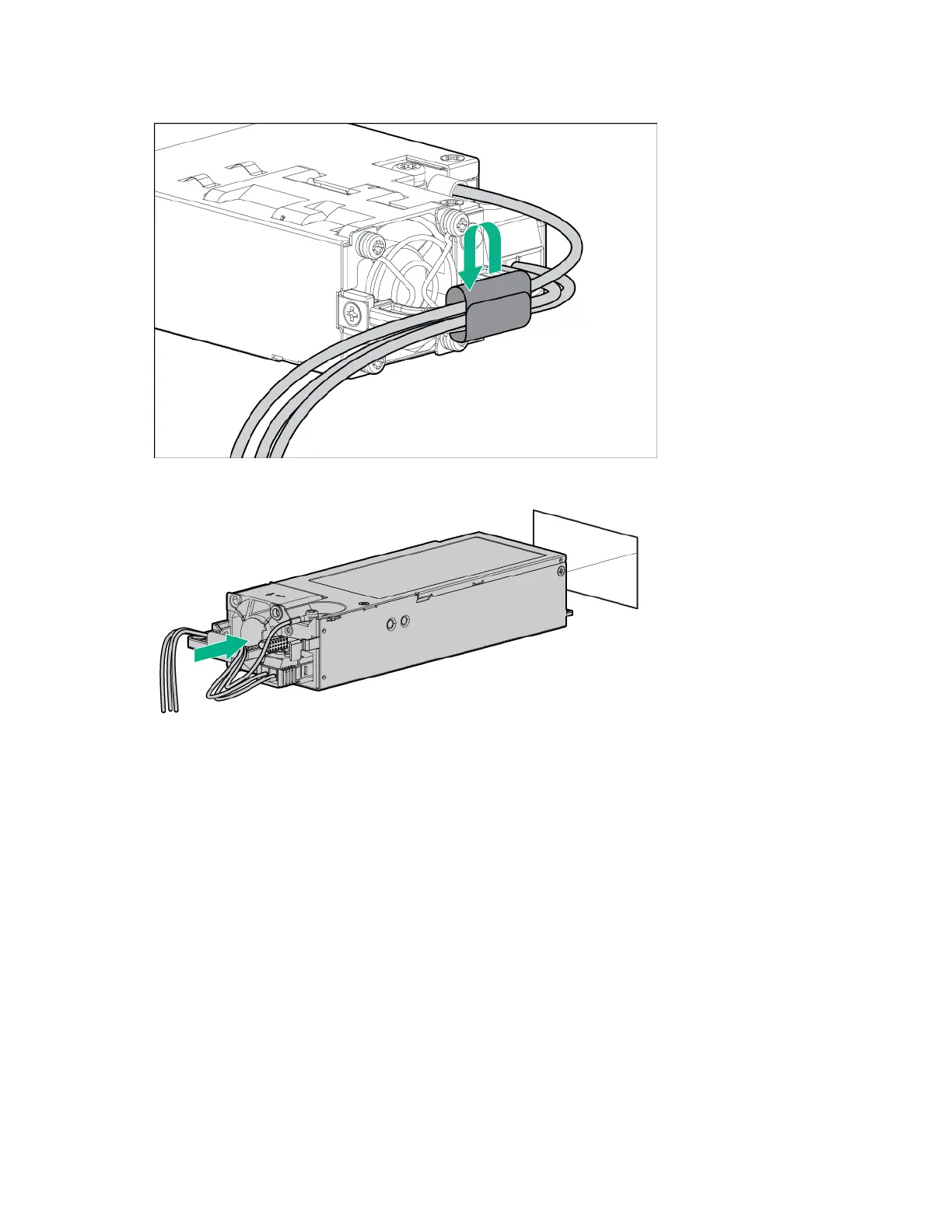

Secure the wires and cables with the strain relief strap. Roll the extra length of the strap around
the power input module handle.
12. Slide the power input module into the bay until it clicks into place.
13. Make sure the -48 V DC power source is off or the PDU breaker is in the off position, and then
connect the power cord to the -48 V DC power source or PDU.
14. Turn on the -48 V power source or switch the PDU breaker to the on position to supply -48 V to the
power supply.
15. Be sure that the power supply LED is green.
HP Trusted Platform Module option
Trusted Platform Module (TPM) Notice
HP Special Reminder: Before enabling Trusted Platform Module (TPM) functionality on this system, you
must ensure that your intended use of TPM complies with relevant local laws, regulations and policies,
and approvals or licenses must be obtained if applicable.
