Hardware options installation 54
o
SFF drive

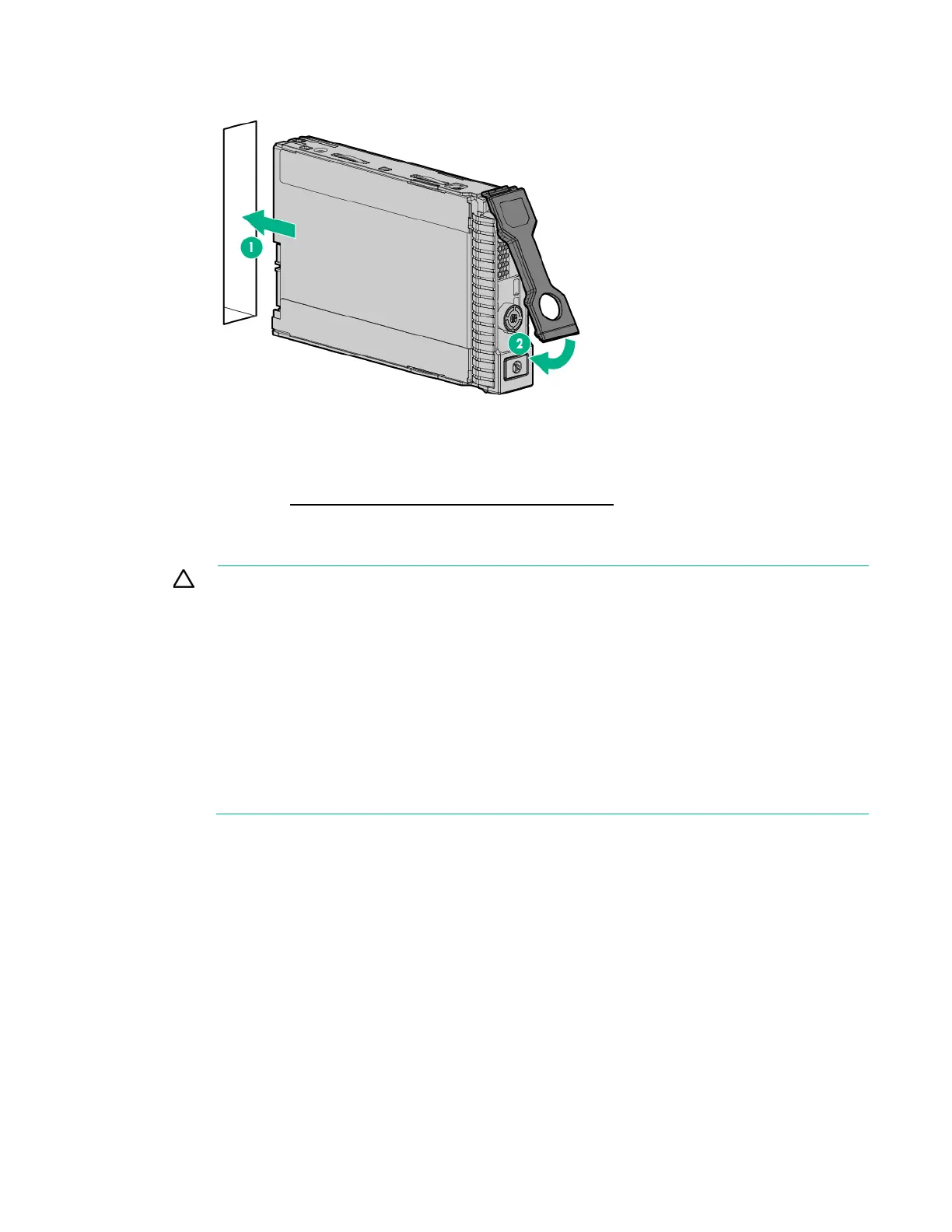

5. Determine the status of the drive from the drive LED definitions ("Drive LEDs" on page 16).
6. If removed, install the security bezel ("Security bezel option" on page 51).
To configure arrays, see the HPE Smart Storage Administrator User Guide on the Hewlett Packard
Enterprise website (http://www.hpe.com/info/smartstorage/docs).
Installing a hot-plug drive in front drive cage 2
CAUTION: Do not operate the server for long periods with the front drive cages extended.
When the front drive cages are extended while the server is powered on, do one of the
following:
• If the iLO 08-HD Max
sensor reading is reporting a temperature value, monitor the status of
the front drive health/thermal LED ("Front panel LEDs and buttons" on page 7). When this
LED starts flashing amber, immediately slide the drive cages back into the chassis and
keep them there until the LED turns green.
• If the iLO 08-HD Max sensor reading is reporting an N/A value, monitor how long the drive
cages have been out of the chassis. Before reaching the 140 sec mark, slide the drive
cages back into the chassis and keep them there for at least 300 sec before extending them
out again.
Failure to observe this caution will result in improper airflow and insufficient cooling that can
lead to thermal damage.
To install the component:
1. Extend the front drive cages out of the chassis (on page 20).
2. Open the drive release lever:
o LFF drive: Press the latch to open the release lever.
