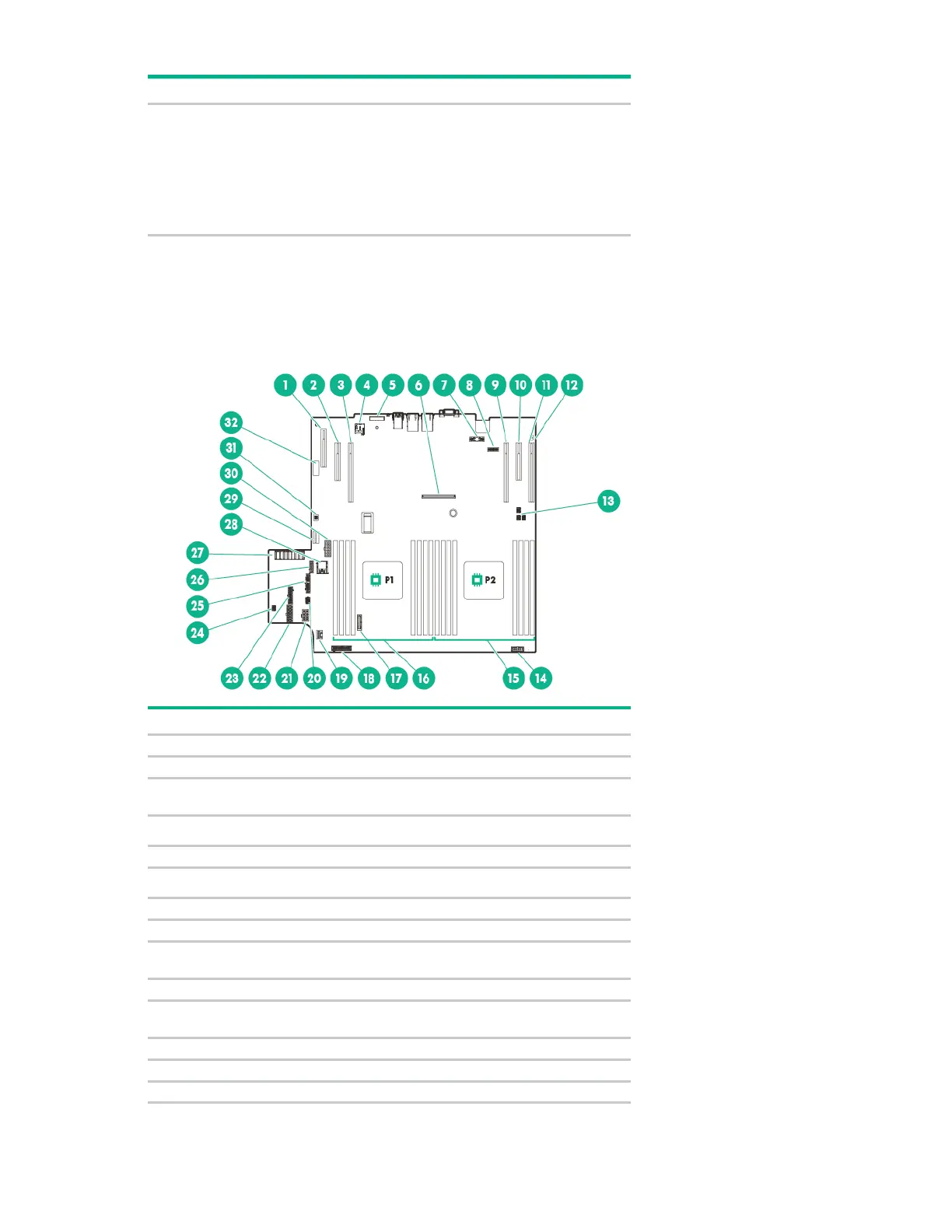

System board components
The components shown in this section are associated with the HPE ProLiant XL420 Gen9 Server system
board.
Item
Description
1
FlexibleLOM slot
1
2
PCIe3 x8 (8, 4, 1) slot 1 for low-profile, standup expansion board
1
3
PCIe3 x16 (16, 8, 4, 1) slot 2 for low-profile, standup expansion
board or riser cage options
1
4
microSD card slot
5
TPM connector
6
Flexible Smart Array Controller slot
7
Dedicated iLO management module connector
8
System maintenance switch
9
PCIe3 x16 (16, 8, 4, 1) slot 5 for low-profile, standup expansion
board
2
10
PCIe3 x8 (8, 4, 1) slot 6 for low-profile, standup expansion board
2
11
PCIe3 x16 (16, 8, 4, 1) slot 7 for low-profile, standup expansion
board
2
12
NMI header
13
Storage backup power connectors for expansion slots 3–7
14
Front I/O connector
