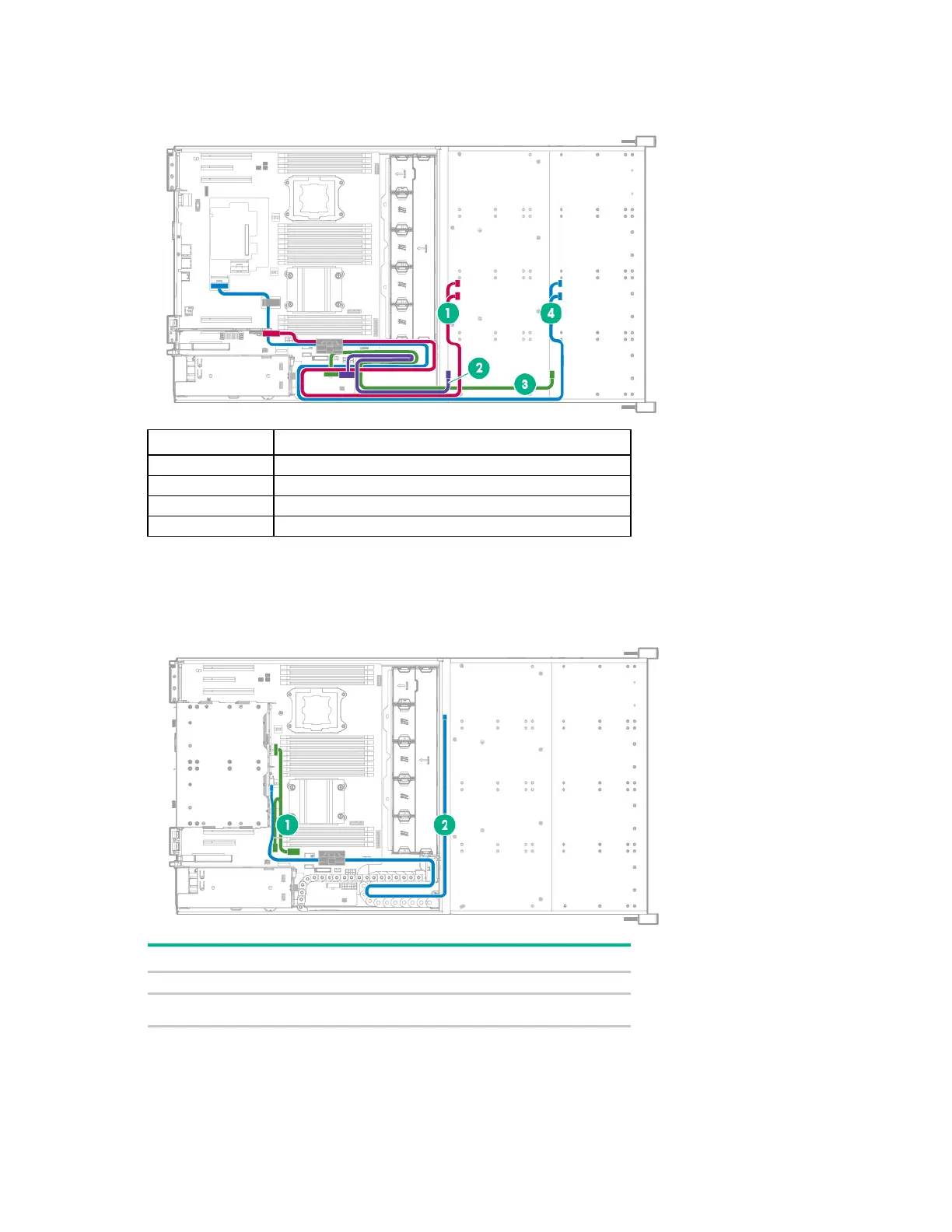

Cabling 140
• Cabling for when the front SFF drive cage 1 is connected to the Flexible Smart Array P840ar
Controller and the front SFF drive cage 2 is connected to the Smart Array P440 Controller option
Item Description
Front SFF drive cage 2 Mini-SAS Y-cable
Front SFF drive cage 2 power cable
Front SFF drive cage 1 power cable
Front SFF drive cage 1 Mini-SAS Y-cable
Four-bay LFF hot-plug SAS/SATA rear drive cabling
• Four-bay LFF hot-plug SAS/SATA rear drive cabling to the front drive cage 2 backplane
Item Description
Rear LFF drive cage power cable
2
Rear LFF drive cage Mini-SAS cable
To Next Page
