Hardware options installation 126
b.

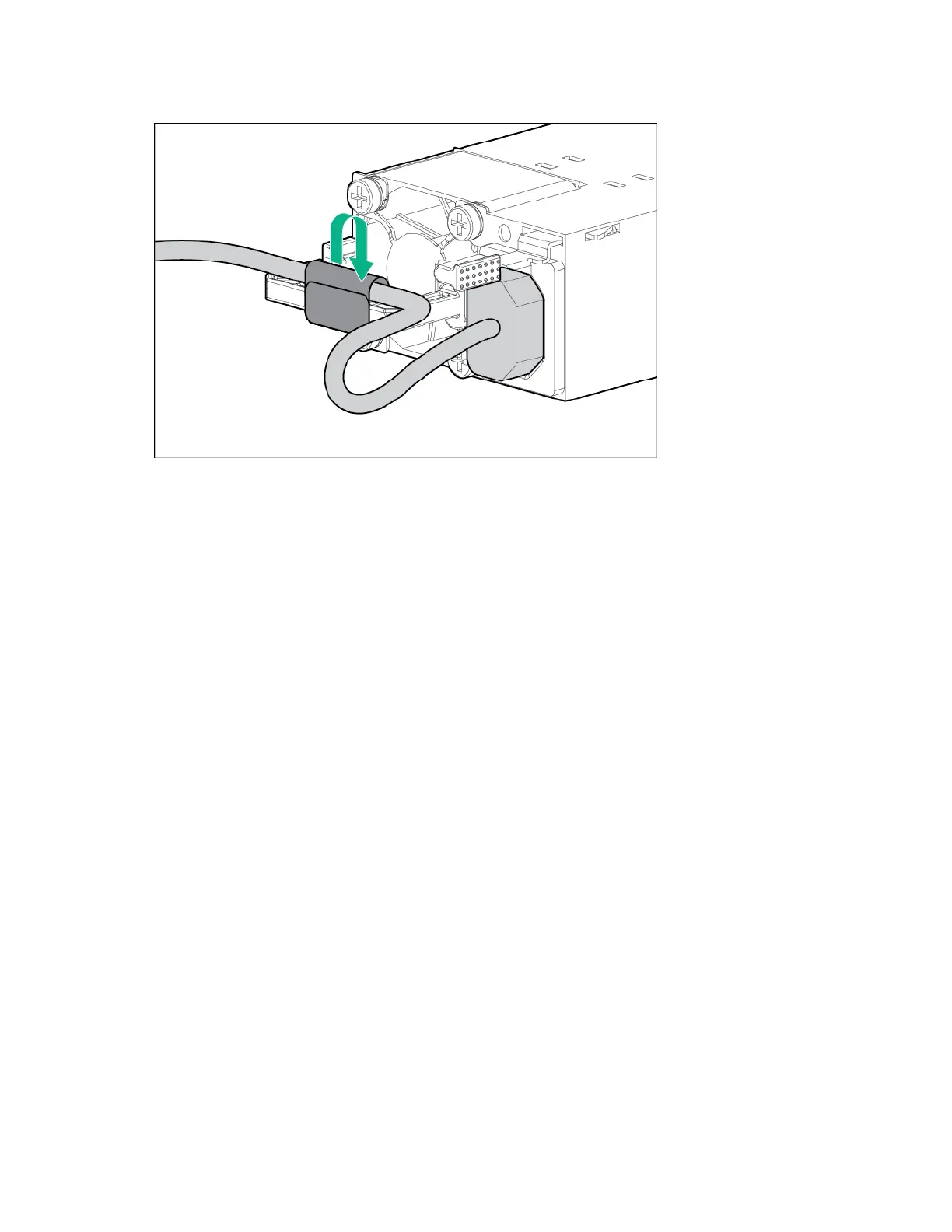

Secure the power cord with the strain relief strap. Roll the extra length of the strap around the
power input module handle.
6. Connect the power cord to the AC power source.
7. Be sure that the power supply LED is green.
Installing a hot-plug DC power input module
The following input power cord option might be purchased from an authorized Hewlett Packard Enterprise
reseller:
J6X43A—HPE 12 AWG 48 V DC 3.0 m Power Cord
If you are not using an input power cord option, the power supply cabling should be made in consultation
with a licensed electrician and be compliant with local code.
If you are replacing the factory installed ground lug, use the KST RNB5-5 crimp terminal ring or
equivalent. Use an M5-0.80 x 8 screw to attach the ground lug to the power input module.
